EVLINK 24KW Electric Bus Hv Ptc Heater For Tracks

Product Details

Place of Origin: CHINA

Brand Name: EVPTC

Certification: CE

Model Number: B

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: $300-800 per set

Packaging Details: carton or wooden case packing

Delivery Time: 15-20days

Payment Terms: T/T

Supply Ability: 100 sets per 2 weeks

Get Best Price
Product Details
High Light:

EVLINK hv ptc heater

,

Tracks Electric Bus hv ptc heater

,

24KW hv ptc heater

Heat Output:
20-28KW
HV Voltage Range:
DC 250-870V
LV Voltage:
DC 24V Nominal
Efficiency:
> 95 %
Controllability Steps:
1%
Temperature Range For Heating:
-40 To 90 ℃
Temperature Range For Ambient:
-40 To 125 ℃
Communication:
CAN OR LIN
Dielectric Strength:
3500 V (DC)
IP Protection Class:
IP 67
EMC:
ECE R10 Rev. 5
Insulation Resistance:
>500MΩ
Service Life:
10 Years Or 10,000 Heating Hours
Heat Output:
20-28KW
HV Voltage Range:
DC 250-870V
LV Voltage:
DC 24V Nominal
Efficiency:
> 95 %
Controllability Steps:
1%
Temperature Range For Heating:
-40 To 90 ℃
Temperature Range For Ambient:
-40 To 125 ℃
Communication:
CAN OR LIN
Dielectric Strength:
3500 V (DC)
IP Protection Class:
IP 67
EMC:
ECE R10 Rev. 5
Insulation Resistance:
>500MΩ
Service Life:
10 Years Or 10,000 Heating Hours
Product Description



Introduction

In recent years, with increasingly stringent environmental policies and the continuous development of new energy technologies, battery-swapping heavy trucks have gradually gained a foothold in the heavy truck market due to their unique advantages. Compared to traditional diesel heavy trucks, battery-swapping heavy trucks not only have significant environmental benefits but also offer cost savings in long-term operations for enterprises.

The advantages of battery-swapping heavy trucks are mainly reflected in two aspects. Firstly, from an environmental perspective, battery-swapping heavy trucks can significantly reduce exhaust emissions, contributing positively to air quality improvement. This is especially important today, given the frequent occurrences of heavy pollution weather. Secondly, from an economic perspective, although the initial purchase cost of battery-swapping heavy trucks is higher, their operating costs are lower. Over the long term, the total cost is significantly lower than that of diesel heavy trucks.

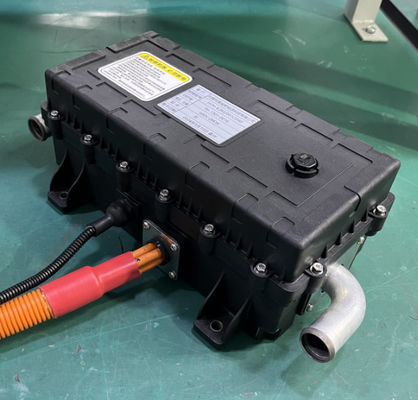

EVLINK 24KW Electric Bus Hv Ptc Heater For Tracks 0



EVLINK's PTC heaters play a critical role in battery-swapping heavy trucks. These heaters can provide 15-30kW of heating power in 15kW refrigeration units, enabling battery-swapping heavy trucks to quickly increase the battery temperature even in extremely cold environments.





HVCH B Series Specification
Heat Output 20-24kW
High Voltage Range DC 350-900V
Low Voltage DC 24V nominal
Efficiency > 95%
Controllability Steps 100W
Weight 3kg
Heating Temperature Range -40 to 90℃
Ambient Temperature Range -40 to 125℃
Communication CAN or LIN2.1
Dielectric Strength 3500V (DC)
IP Protection Class IP 67
EMC ECE R10 Rev. 5
Insulation Resistance >500MΩ
Service Life 10 years or 10,000 hours



High Voltage and High Power Design

Maximum Power and Voltage

  • Maximum Power: 28kW, sufficient to meet the heating needs of most cold areas.
  • Maximum Rated Voltage: DC 1050V, a future trend.

Market Recognition

Customers and Collaborations

  • EVLINK products are chosen by newly developed heater models in the electric heavy truck field.
  • HVCH-Q heaters were installed in journalist vehicles during the Beijing Winter Olympics.
  • Installed the world's first modified super-large electric heavy truck.

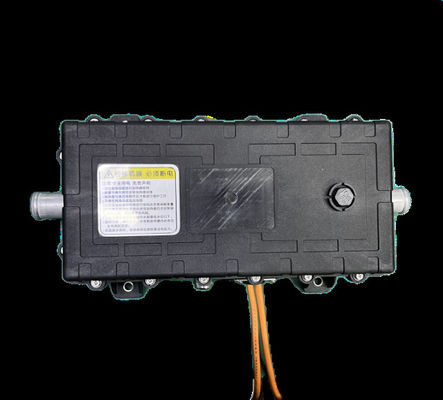

EVLINK 24KW Electric Bus Hv Ptc Heater For Tracks 1

Innovations

PTC Modular Design

  • Unique modular insulated ceramic heater design addresses the demand for higher power, which competitors' PTC heaters cannot meet.
  • Custom heating cores ensure good voltage resistance and low-temperature start-up performance.

Matrix Arrangement Structure

  • Unique heating element arrangement improves heat dissipation efficiency.
  • High-quality alumina ceramic substrates are used as insulation materials, solving the problems of traditional polyimide films being prone to scratches and reduced insulation performance at high temperatures.

Copper Busbar Connection

  • Copper busbar connection modules simplify the internal structure of the heater, addressing the issues of short circuits or leakage in traditional wiring.

EVLINK 24KW Electric Bus Hv Ptc Heater For Tracks 2



Safety Precautions

Surge Current Management

  • Using PTC chips with good low-temperature start-up performance to smooth the current curve and reduce surge current.
  • Staggered start-up reduces overall current.

Transient Overvoltage Protection

  • High-voltage power supply filter capacitors and overvoltage protection devices.
  • Selecting 1600V IGBTs to increase breakdown voltage.

High-Temperature Risk Control

  • Combining mechanical temperature control switches with glass-sealed NTC thermistors to ensure safety under high temperatures.

Waterproof Structure

  • Silicone parts combined with stainless steel plates ensure waterproof performance at inlet and outlet pipes.
  • Optimized mounting feet design enhances resistance to bumps and impacts.

EVLINK 24KW Electric Bus Hv Ptc Heater For Tracks 3





Control Logic

Soft Start

  • Grouped start-up, each group controlled by independent IGBTs, with special step-by-step start-up logic to achieve smooth start-up.

PID Regulation

  • Collaborating with customers to debug PID regulation, optimizing energy-saving strategies based on temperature.

No-Load Switching

  • Combining contactors with IGBTs to ensure minimal impact on contactors during switching, preventing adhesion.

Conclusion

EVLINK's automotive water heaters offer efficient and reliable heating solutions through innovative PTC modular design, robust safety precautions, and precise control logic. These innovations not only enhance product performance but also further solidify EVLINK's leading position in the automotive thermal management field.
