Product Details
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QA
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: $1200-1500 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks
Heat Output: |
15-25KW |
HV Voltage Range: |
DC 250-870V |
LV Voltage: |
DC 24V Nominal |
Efficiency: |
> 95 % |
Controllability Steps: |
1% |
Dimensions: |
365*313*123mm |
Weight: |
9kg |
Temperature Range For Heating: |
-40 To 90 ℃ |
Temperature Range For Ambient: |
-40 To 125 ℃ |
Communication: |
CAN OR LIN |
Dielectric Strength: |
3500 V (DC) |
IP Protection Class: |
IP 67 |
EMC: |
ECE R10 Rev. 5 |
Insulation Resistance: |
>500MΩ |
Service Life: |
10 Years Or 10,000 Heating Hours |
Heat Output: |
15-25KW |
HV Voltage Range: |
DC 250-870V |
LV Voltage: |
DC 24V Nominal |
Efficiency: |
> 95 % |
Controllability Steps: |
1% |
Dimensions: |
365*313*123mm |
Weight: |
9kg |
Temperature Range For Heating: |
-40 To 90 ℃ |
Temperature Range For Ambient: |
-40 To 125 ℃ |
Communication: |
CAN OR LIN |
Dielectric Strength: |
3500 V (DC) |
IP Protection Class: |
IP 67 |
EMC: |
ECE R10 Rev. 5 |
Insulation Resistance: |
>500MΩ |
Service Life: |
10 Years Or 10,000 Heating Hours |

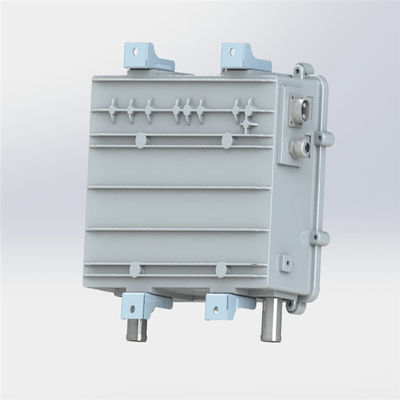

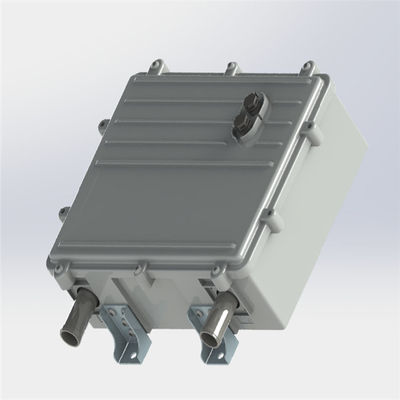

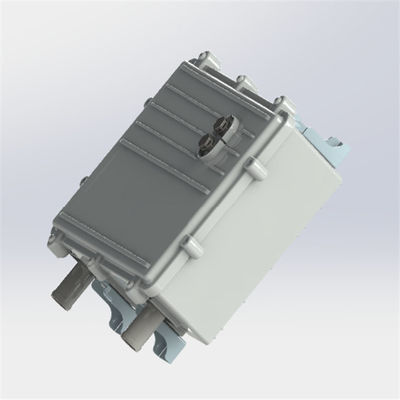

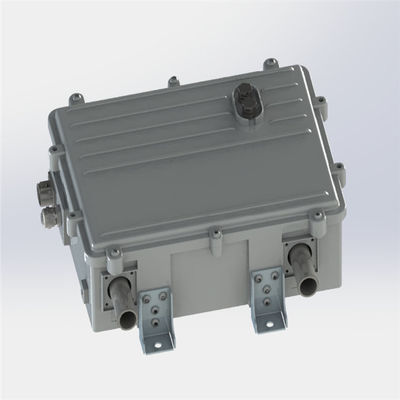

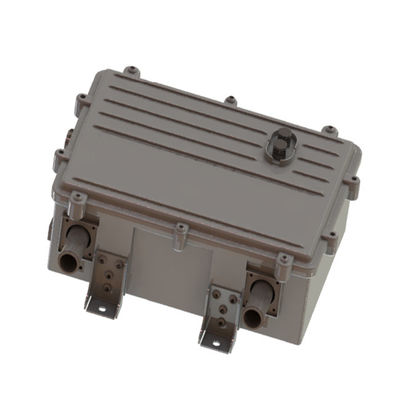

EVLINK HVCH QA01 Series: The Top Choice for Winter Heating in Korean Electric Buses
Product Introduction:
When the cold winter season arrives, electric buses in Korea face a challenge: how to provide a comfortable warm environment for passengers in temperatures as low as -20℃? The answer is the EVLINK HVCH QA01 series PTC heater. This efficient heater offers a powerful, stable, and reliable heat source for integrated air conditioning suppliers, making it the top choice for heating electric buses during Korean winters.
Specification:
HVCH QA01 Series | |
Heat Output | 15-25kW |
HV Voltage Range | DC 250-870V |
LV Voltage |
DC 24V nominal |
Efficiency | > 95 % |
Controllability Steps | 100W |
Dimensions | 365*313*123mm |
Weight | 9kg |
Temperature Range for Heating | -40 to 90 ℃ |
Temperature Range for Ambient | -40 to 125 ℃ |
Communication | CAN or LIN2.1 |
Dielectric Strength | 3500 V (DC) |
IP Protection Class | IP 67 |
EMC | ECE R10 Rev. 5 |
Insulation Resistance | >500MΩ |
Service Life | 10 years or 10,000 heating hours |
ØEfficient Heat Source: Provides an efficient, stable, and reliable heat source for integrated air conditioning suppliers.
ØRapid Heating: Quickly elevates the temperature inside the bus compartment during cold winters, offering passengers a comfortable journey.
ØReliability: Prolonged operation and efficient performance ensure product reliability and durability.
EVLINK's PTC heaters are widely used in Korean electric buses, especially during the cold winters when outdoor temperatures drop to -20℃. This 20KW heater rapidly increases the temperature inside the bus, providing a warm and comfortable environment for passengers. In addition, we collaborate with various integrated air conditioning suppliers to ensure the best heating solutions for passengers.
EVLINK's service network covers both China and Korea and is actively expanding to new service points worldwide. We place great emphasis on quality and service. Our after-sales personnel at service points regularly visit sites to train and guide bus drivers, ensuring the normal, safe, and efficient operation of the heaters. Additionally, our team regularly monitors the usage status of heaters, ensuring the best support and service for our clients.
EVLINK always prioritizes the safety and reliability of its products. Unlike other suppliers, our heaters are designed with the safety of passengers in mind. Our PTC heater can run dry for over 1000 hours without any issues or malfunctions, even in the absence of water. Furthermore, our heaters undergo rigorous testing and certification, ensuring they meet all relevant safety and performance standards. These features make EVLINK one of the most popular and trusted brands in the automotive industry.
