Battery Hv Water Heater Industrial Heating Cooling DC690V Unparalleled Safety

Product Details

Place of Origin: CHINA

Brand Name: EVPTC

Certification: CE

Model Number: AS02

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: $1500-2000 per set

Packaging Details: carton or wooden case packing

Delivery Time: 15-20days

Payment Terms: T/T

Supply Ability: 100 sets per 2 weeks

Get Best Price
Product Details
High Light:

Hv Water Heater Industrial

,

Hv Water Heater DC690V

,

Water Battery Hv Heater

Heat Output:
8-18kW
HV Voltage Range:
DC 350-870V
LV Voltage:
DC 24V Or 12V Nominal
Efficiency:
> 95 %
Controllability Steps:
1%
Dimensions:
340*110*113mm
Weight:
<6kg
Temperature Range For Heating:
-40 To 90 ℃
Temperature Range For Ambient:
-40 To 125 ℃
Communication:
CAN OR LIN
Dielectric Strength:
3500 V (DC)
IP Protection Class:
IP 67
EMC:
ECE R10 Rev. 5
Insulation Resistance:
>500MΩ
Service Life:
10 Years Or 10,000 Heating Hours
Heat Output:
8-18kW
HV Voltage Range:
DC 350-870V
LV Voltage:
DC 24V Or 12V Nominal
Efficiency:
> 95 %
Controllability Steps:
1%
Dimensions:
340*110*113mm
Weight:
<6kg
Temperature Range For Heating:
-40 To 90 ℃
Temperature Range For Ambient:
-40 To 125 ℃
Communication:
CAN OR LIN
Dielectric Strength:
3500 V (DC)
IP Protection Class:
IP 67
EMC:
ECE R10 Rev. 5
Insulation Resistance:
>500MΩ
Service Life:
10 Years Or 10,000 Heating Hours
Product Description

Battery Hv Water Heater Industrial Heating Cooling DC690V Unparalleled Safety



  1. It is equipped with built-in safety features, such as overheat protection and fault detection, to ensure safe operation in high-voltage environments.
  2. Our High Voltage Water Heater is energy-efficient, minimizing power consumption and optimizing the overall system efficiency.
  3. It offers customizable heating settings, allowing users to adjust the water temperature according to their specific needs.

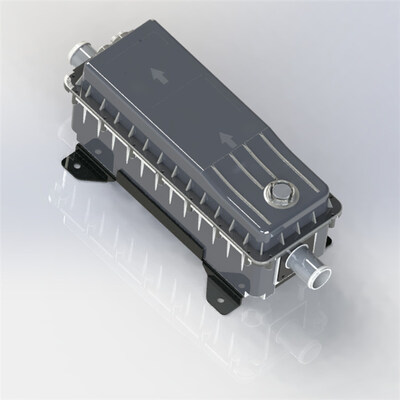

Battery Hv Water Heater Industrial Heating Cooling DC690V Unparalleled Safety 0







Product Introduction

As the world transitions towards greener solutions, the HVCH AZ02-Series emerges as a beacon of innovation in the electric vehicle segment. This high voltage coolant heater combines a sleek design with impressive power capabilities, setting new standards in the market. Today, we introduce the reinvented AZ02-Series, which is primed to redefine vehicle heating solutions with an amalgamation of advanced technology and safety features.

Product Overview

Stepping into the spotlight, the HVCH AZ02-Series promises a seamless blend of power and sophistication. Packing up to 18KW of power in a compact frame, this series transcends its predecessors, eliminating the need for an outgoing line and promoting a streamlined installation process. Its flexible structure accommodates a specially designed ground lead wire with customizable length, promising adaptability in various setups. Moreover, we offer tailor-made solutions for different voltage or power requirements, facilitated through an interactive customer service experience.











Specification:





HVCH AS02 Series
Heat Output     8-18kW
HV Voltage Range     DC 350-870V

LV Voltage

  DC 24V or 12V nominal
Efficiency     > 95 %
Controllability Steps     100W
Dimensions     340*110*113mm
Weight     6kg
Temperature Range for Heating     -40 to 90 ℃
Temperature Range for Ambient     -40 to 125 ℃
Communication     CAN or LIN2.1
Dielectric Strength     3500 V (DC)
IP Protection Class     IP 67
EMC     ECE R10 Rev. 5
Insulation Resistance     >500MΩ
Service Life     10 years or 10,000 heating hours

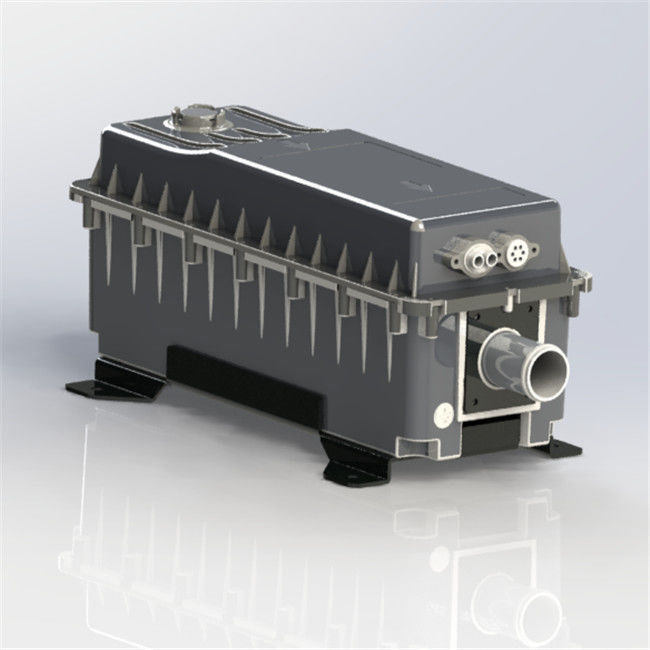

Battery Hv Water Heater Industrial Heating Cooling DC690V Unparalleled Safety 1



Product Features:



Outstanding Water Resistance

In the ever-changing environment, vehicles are subjected to wet and muddy conditions. The AZ02 series stands tall, offering supreme water resistance adhering to IP67 standards, ensuring its longevity and dependable performance even in challenging settings.

Flawless Regulation Performance

The AZ02-Series offers a remarkable regulation performance, either by modulating the water outlet temperature or by setting a limit on the maximum heat output or power consumption. A feature validated through extensive application in numerous vehicles over recent years, guaranteeing customer satisfaction.

Automotive-Grade IGBT Controlled Heating System

Elevating safety and reliability, the AZ02 series introduces an automotive-grade IGBT to manage the heater’s functioning. This upgraded system features multi-layer temperature protection and fuse protection, safeguarding not just the heater but the entire vehicle, thereby showcasing a significant evolution in electronic safety protocols.

Absolute Separation of Water and Electricity

An exemplar of innovation, the AZ02 series perfects the balance between heat transmission efficiency and the stringent insulation requirement of DC 3500 V, offering a complete separation of water and electrical components, a feature that has proven its effectiveness in heavy dump trucks since 2021.

PTC Thermistor Heater with Autonomous Constant Temperature Control

Leveraging the benefits of PTC heating technology, the AZ02 series showcases dynamic power adjustment capabilities without surpassing a set maximum temperature. This functionality guarantees high operational reliability and energy efficiency without necessitating additional switching elements.

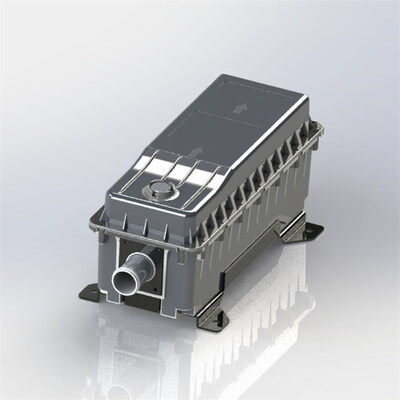

Battery Hv Water Heater Industrial Heating Cooling DC690V Unparalleled Safety 2





Application:





The AZ02 series stands as the guardian of comfort and safety, ensuring vehicles are prepared to operate efficiently even in harsh climates. With a substantial power range of 8-18kW, it caters to the diverse heating needs of large vehicles, offering a customizable power setup to meet individual requirements.

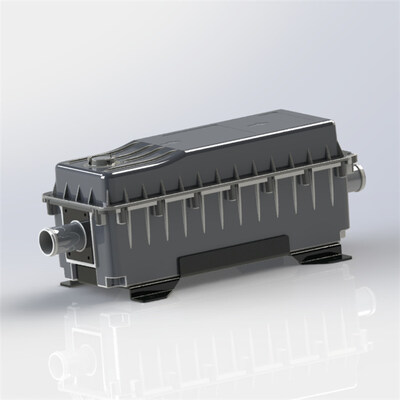

Battery Hv Water Heater Industrial Heating Cooling DC690V Unparalleled Safety 3



Our Services

Direct supplier relationships, eliminating intermediary costs and offering competitive pricing.

Enticing discounts on bulk orders, with a warm welcome for trial orders.

Rapid response to inquiries, providing a seamless customer interaction.

A strong manufacturing backbone, guaranteeing quality and strength in every product.

A commitment to exceeding customer expectations through continuous efforts.



Competitive Advantages

Advanced safety and reliability through technological innovation.

Bespoke solutions through OEM services.

Steady performance, promising long-term dependability.

Excellent insulation properties coupled with water and dust resistance.

Resilient dry burning resistance for an uninterrupted service life.

High Voltage, High Power, High Intelligence, and High Reliability: the mark of HVCH products.
