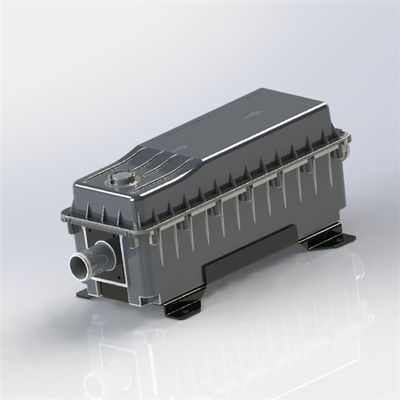

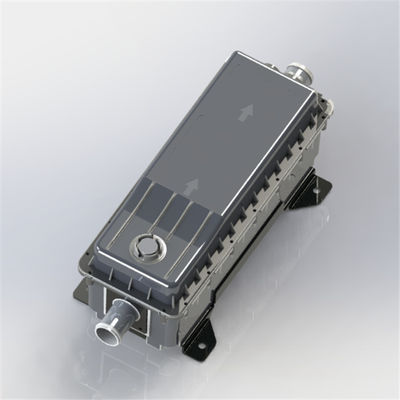

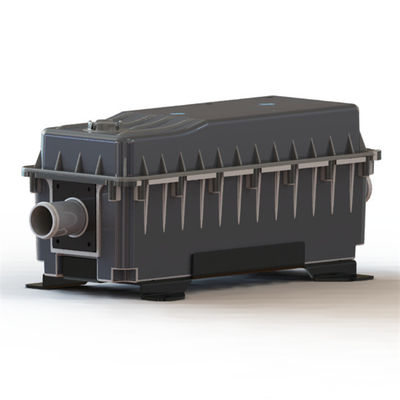

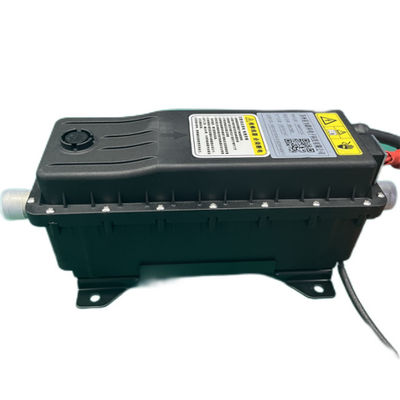

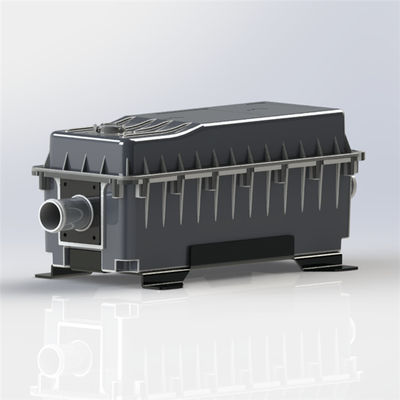

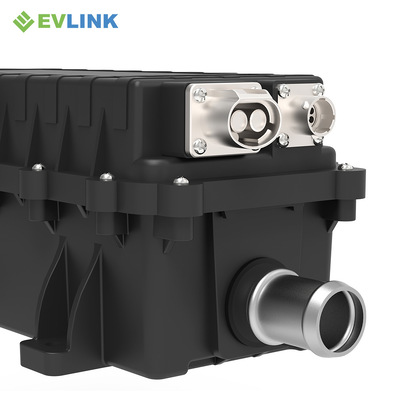

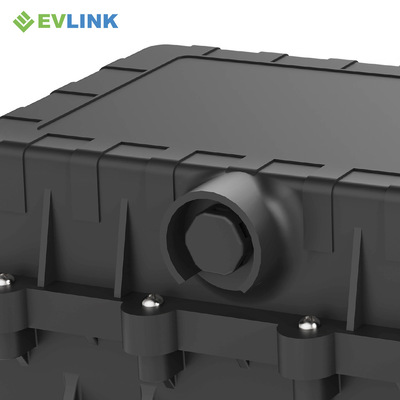

800v High Voltage Coolant Heater Vehicle Heating Solutions 8-18kw

800v High Voltage Coolant Heater Vehicle Heating Solutions 8-18kw
800v High Voltage Coolant Heater Vehicle Heating Solutions 8-18kw 800v High Voltage Coolant Heater Vehicle Heating Solutions 8-18kw 800v High Voltage Coolant Heater Vehicle Heating Solutions 8-18kw 800v High Voltage Coolant Heater Vehicle Heating Solutions 8-18kw 800v High Voltage Coolant Heater Vehicle Heating Solutions 8-18kw

Large Image :  800v High Voltage Coolant Heater Vehicle Heating Solutions 8-18kw

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: AZ02
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1500-2000 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

800v High Voltage Coolant Heater Vehicle Heating Solutions 8-18kw

Description
Heat Output: 8-18kW HV Voltage Range: DC 350-870V
LV Voltage: DC 24V Or 12V Nominal Efficiency: > 95 %
Controllability Steps: 1% Dimensions: 340*110*113mm
Weight: 6kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Communication: CAN OR LIN
Dielectric Strength: 3500 V (DC) IP Protection Class: IP 67
EMC: ECE R10 Rev. 5 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

800v coolant heater

,

High Voltage Coolant Heater 18kW

,

800v High Voltage Coolant Heater

  1. The High Voltage Water Heater is capable of heating large volumes of water, making it suitable for high-demand applications.
  2. It is engineered for thermal efficiency, minimizing heat loss and maximizing energy savings.
  3. The water heater is designed with scalability in mind, allowing for the installation of multiple units to meet higher hot water demands.

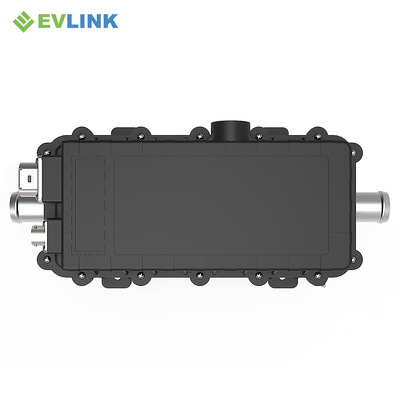

800v High Voltage Coolant Heater Vehicle Heating Solutions 8-18kw 0



In the rapidly evolving automotive landscape, heating solutions play a vital role in ensuring a safe and comfortable driving experience, particularly in harsh climates. The HVCH AZ02-Series emerges as a frontrunner in this domain, boasting an impressive power range and unmatched reliability. Here, we unveil the transformative features of the new AZ02-Series High Voltage Coolant Heater that promises an excellent balance between efficiency and innovation.

Product Overview

The HVCH AZ02-Series stands out as a slender yet potent electric water heater, offering a maximum power output of up to 18KW. The series is characterized by its streamlined installation process and compact structure, eliminating the need for an outgoing line that was a staple in the AS series. The series is equipped with a special ground lead wire, customizable to any length, enhancing its versatility to adapt to various installation scenarios. Additionally, the heater promises adaptability with options for different voltage or power needs, available through our dedicated customer service team.







Specification:



HVCH AZ02 Series
Heat Output     8-18kW
HV Voltage Range     DC 350-870V

LV Voltage

  DC 24V or 12V nominal
Efficiency     > 95 %
Controllability Steps     100W
Dimensions     340*110*113mm
Weight     10kg
Temperature Range for Heating     -40 to 90 ℃
Temperature Range for Ambient     -40 to 125 ℃
Communication     CAN or LIN2.1
Dielectric Strength     3500 V (DC)
IP Protection Class     IP 67
EMC     ECE R10 Rev. 5
Insulation Resistance     >500MΩ
Service Life     10 years or 10,000 heating hours

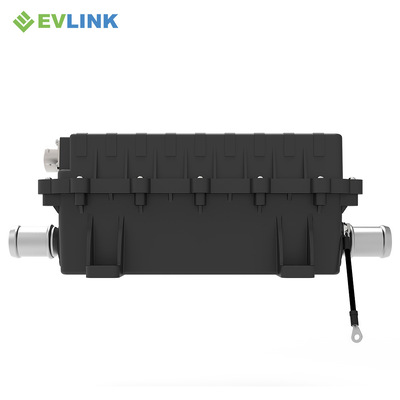

800v High Voltage Coolant Heater Vehicle Heating Solutions 8-18kw 1



Product Features:





- Excellent Water Resistance

During operations, vehicles often navigate through muddy roads and wet conditions. The AZ02 series assures superior waterproof performance, meeting the IP67 standard for water and dust resistance, thereby promising reliability even in the harshest environments.



- Stepless Regulate Performance

The series allows for nuanced control over the heat output, offering options to regulate water outlet temperature or limit power consumption, a feature validated through extensive usage in thousands of vehicles over the past three years.



- Reliable Self-Protection System

Safety is paramount in the AZ02 series, featuring a dual mechanical and electronic protection system that safeguards against short circuits, overloads, and over-temperature conditions. The inclusion of a current fuse in the high voltage circuit, coupled with a mechanical temperature switch, further enhances its safety profile.



- Complete Separation of Water and Electricity

This feature ensures a flawless separation between the heating elements and water, a remarkable achievement that successfully reconciles high heat transmission efficiency with stringent DC 3500V insulation requirements, proven through its successful deployment in heavy dump trucks since 2021.



- PTC Thermistor Heater with Self-Controlled Constant Temperature

Leveraging the benefits of PTC heating technology, the series guarantees dynamic power adjustment without surpassing a set maximum temperature, promising high operational reliability and energy efficiency without the need for additional switching elements.

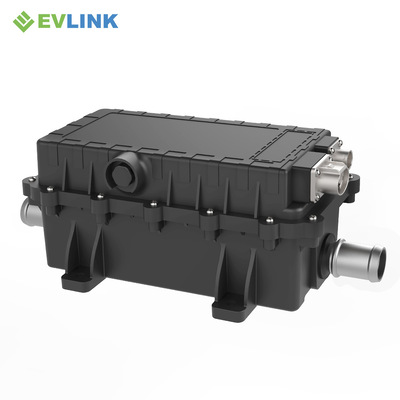

800v High Voltage Coolant Heater Vehicle Heating Solutions 8-18kw 2



Application:



The AZ02 series is designed to facilitate a smooth journey under adverse climate conditions, primed to handle heating, defrosting, and battery heating needs of large vehicles efficiently. It offers customizable power settings, allowing users to modulate power consumption according to their specific needs.







        800v High Voltage Coolant Heater Vehicle Heating Solutions 8-18kw 3





Our Services



Direct supplier relations, eliminating agent fees and reducing costs.

Attractive discounts on bulk orders, with a warm welcome to trial orders.

Prompt responses to all inquiries, ensuring a seamless customer experience.

Competitive pricing, guaranteeing value for your investment.

Backed by a manufacturer with substantial industry strength and experience.

Unwavering commitment to fulfilling your requirements with utmost precision.



Competitive Advantages



Superior safety and reliability.

OEM services to materialize your designs.

Stable performance guaranteed.

Water and dust-proof properties coupled with excellent insulating attributes.

Outstanding resistance to dry burning.

A harmonious blend of high voltage, high power, high intelligence, and high reliability.
