24V Hv Ptc Heater 8kw 18kW 690V Without Bracket High Voltage Water Heater

Certification
China Suzhou EVLINK Electronic Technology Co.,Ltd certification
I'm Online Chat Now

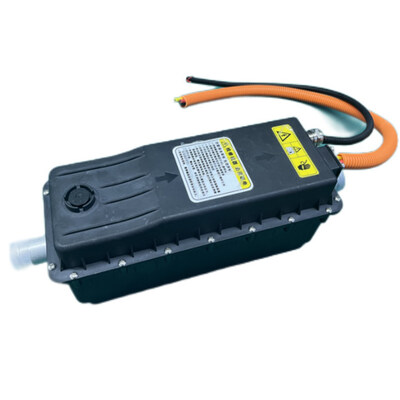

24V Hv Ptc Heater 8kw 18kW 690V Without Bracket High Voltage Water Heater

24V Hv Ptc Heater 8kw 18kW 690V Without Bracket High Voltage Water Heater
24V Hv Ptc Heater 8kw 18kW 690V Without Bracket High Voltage Water Heater 24V Hv Ptc Heater 8kw 18kW 690V Without Bracket High Voltage Water Heater 24V Hv Ptc Heater 8kw 18kW 690V Without Bracket High Voltage Water Heater 24V Hv Ptc Heater 8kw 18kW 690V Without Bracket High Voltage Water Heater 24V Hv Ptc Heater 8kw 18kW 690V Without Bracket High Voltage Water Heater

Large Image :  24V Hv Ptc Heater 8kw 18kW 690V Without Bracket High Voltage Water Heater

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: AS02
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1500-2000 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

24V Hv Ptc Heater 8kw 18kW 690V Without Bracket High Voltage Water Heater

Description
Heat Output: 8-18kW HV Voltage Range: DC 350-870V
LV Voltage: DC 24V Or 12V Nominal Efficiency: > 95 %
Controllability Steps: 1% Dimensions: 340*110*113mm
Weight: <6kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Communication: CAN OR LIN
Dielectric Strength: 3500 V (DC) IP Protection Class: IP 67
EMC: ECE R10 Rev. 5 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

hv ptc heater 8kw

,

24V Hv Ptc Heater

,

24V Hv Heater

  1. It is designed to be environmentally friendly, with low emissions and energy-efficient operation.
  2. The water heater is equipped with built-in diagnostics and self-monitoring capabilities, allowing for quick and accurate troubleshooting.
  3. It can be easily integrated into existing high-voltage systems without major modifications or disruptions.

24V Hv Ptc Heater 8kw 18kW 690V Without Bracket High Voltage Water Heater 0



Product Introduction

In the dynamically evolving automotive sector, the necessity for reliable and potent heating solutions is paramount, especially under harsh climatic conditions. The HVCH AZ02 series makes a notable entrance in this arena, boasting a remarkable range of power and unparalleled reliability. Here, we delve into the revolutionary features of the new AZ02-Series High Voltage Coolant Heater that promises an optimal balance between efficiency and innovation.

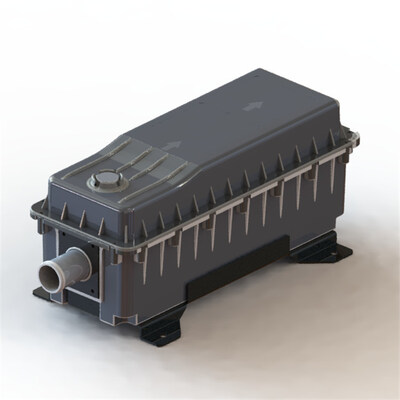

24V Hv Ptc Heater 8kw 18kW 690V Without Bracket High Voltage Water Heater 1





Product Overview

The HVCH AZ02-Series stands as a sleek yet potent electric water heater, with an impressive power spectrum peaking at 18KW. Unlike the AS series, the AZ02 series obliterates the need for an outgoing line, paving the way for more straightforward installations and a more concise structure. It features a special ground lead wire that can be customized to any length, augmenting its adaptability across various installation scenarios. Moreover, it promises compatibility with different voltage or power requirements, easily accessible through our dedicated customer service team.









Specification:



HVCH AS02 Series
Heat Output     8-18kW
HV Voltage Range     DC 350-870V

LV Voltage

  DC 24V or 12V nominal
Efficiency     > 95 %
Controllability Steps     100W
Dimensions     340*110*113mm
Weight     6kg
Temperature Range for Heating     -40 to 90 ℃
Temperature Range for Ambient     -40 to 125 ℃
Communication     CAN or LIN2.1
Dielectric Strength     3500 V (DC)
IP Protection Class     IP 67
EMC     ECE R10 Rev. 5
Insulation Resistance     >500MΩ
Service Life     10 years or 10,000 heating hours

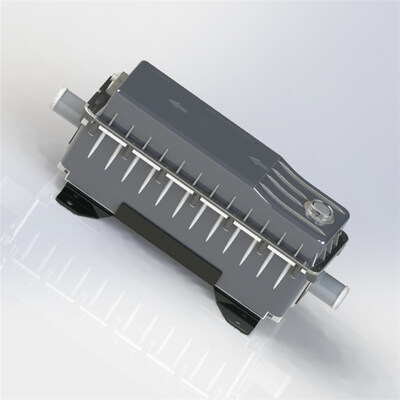

24V Hv Ptc Heater 8kw 18kW 690V Without Bracket High Voltage Water Heater 2





Product Features:


Exceptional Water Resistance

During actual operation, vehicles are often exposed to muddy roads and wet conditions. The AZ02 series guarantees exceptional water resistance, adhering to IP67 standards for water and dust protection, thus ensuring reliability even in the most adverse environments.


Seamless Regulation Performance

This feature allows for nuanced control over heat output, offering options to regulate the water outlet temperature or to cap the maximum heat output or power consumption. This function has been verified through its extensive utilization in thousands of vehicles over the past three years.


Automotive-Grade IGBT Controlled Heating System

The AZ02 series takes safety and reliability to the next level by integrating an automotive-grade IGBT to control the heater. This system is fortified with multi-level temperature protection and fuse protection, safeguarding the heater and the entire vehicle. This step signifies the removal of dual mechanical protections, marking a move towards a more sophisticated, electronic safety protocol.


Complete Separation of Water and Electricity

This innovation ensures seamless separation between the heating elements and water, a remarkable accomplishment in balancing high heat transmission efficiency with stringent DC 3500 V insulation requirements. Its successful deployment in heavy-duty dump trucks since 2021 is a testament to its effectiveness.


PTC Thermistor Heater with Self-Controlled Constant Temperature

Harnessing the advantages of PTC heating technology, this series ensures dynamic power adjustment without exceeding a predetermined maximum temperature, promising high operational reliability and energy efficiency without the need for additional switching elements.

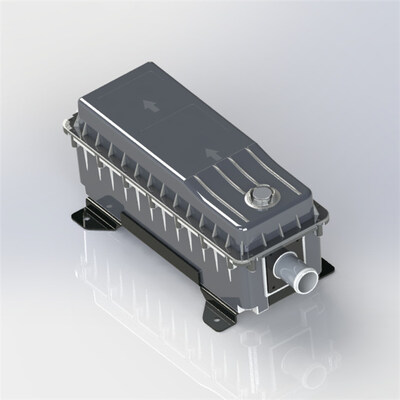

24V Hv Ptc Heater 8kw 18kW 690V Without Bracket High Voltage Water Heater 3







Application:





To facilitate a smooth journey even in challenging climatic conditions, vehicles must be ready for operation right from the start. The AZ02 series adequately caters to the heating, defrosting, and battery heating requirements of large vehicles. Users can modify the power according to their needs, controlling power consumption to match their specific requirements.

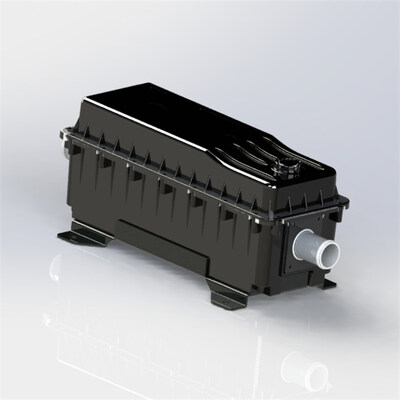

        24V Hv Ptc Heater 8kw 18kW 690V Without Bracket High Voltage Water Heater 4





Our Services



Direct supply connections, eliminating agent fees and reducing costs.

Attractive discounts for bulk orders, with trial orders also welcomed.

24-hour response to all inquiries, ensuring a seamless customer experience.

Competitive pricing, guaranteeing value for your investment.

Supported by a manufacturer with substantial industry strength and experience.

Committed to fulfilling your demands with the utmost precision.



Competitive Advantages

Safety and reliability brought about by advanced technology.

OEM services to realize your bespoke designs.

Guaranteed stable performance.

Water and dust-proof capabilities combined with excellent insulating properties.

Superior resistance to dry burning.

High Voltage, High Power, High Intelligence, High Reliability.
