Product Details
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QA
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: $1200-1500 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks
Heat Output: |
15-25KW |
HV Voltage Range: |
DC 250-870V |
LV Voltage: |
DC 24V Nominal |
Efficiency: |
> 95 % |
Controllability Steps: |
1% |
Dimensions: |
365*313*123mm |
Weight: |
9kg |
Temperature Range For Heating: |
-40 To 90 ℃ |
Temperature Range For Ambient: |
-40 To 125 ℃ |
Communication: |
CAN OR LIN |
Dielectric Strength: |
3500 V (DC) |
IP Protection Class: |
IP 67 |
EMC: |
ECE R10 Rev. 5 |
Insulation Resistance: |
>500MΩ |
Service Life: |
10 Years Or 10,000 Heating Hours |
Heat Output: |
15-25KW |
HV Voltage Range: |
DC 250-870V |
LV Voltage: |
DC 24V Nominal |
Efficiency: |
> 95 % |
Controllability Steps: |
1% |
Dimensions: |
365*313*123mm |
Weight: |
9kg |
Temperature Range For Heating: |
-40 To 90 ℃ |
Temperature Range For Ambient: |
-40 To 125 ℃ |
Communication: |
CAN OR LIN |
Dielectric Strength: |
3500 V (DC) |
IP Protection Class: |
IP 67 |
EMC: |
ECE R10 Rev. 5 |
Insulation Resistance: |
>500MΩ |
Service Life: |
10 Years Or 10,000 Heating Hours |

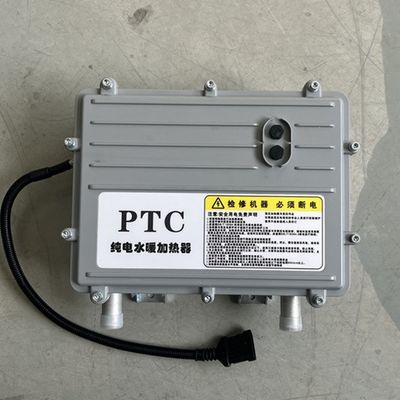

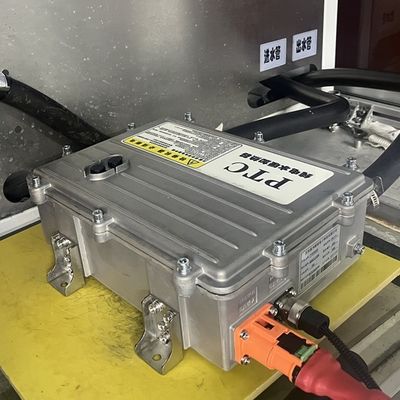

As the electric boating industry continues to rise, EVLINK's 20KW liquid heater and PTC heater have become crucial tools for battery thermal management and comfortable heating onboard. Let's delve into the details of these innovative products and explore the uniqueness of PTC heaters, contributing to a more comprehensive market response.
Introduction to EVLINK Heaters:
EVLINK's 20KW liquid heater employs advanced technology combining relays and IGBT, ensuring safety and efficiency within electric boats. Simultaneously, PTC heaters, as an innovative heating solution, provide a more intelligent and energy-efficient heating experience. The synergy of these two technologies enhances overall performance.
Product Attributes:
Applications:
EVLINK's products find wide application in the electric boating sector. Through close collaboration with major manufacturers, the company customizes production lines for QA liquid heaters and PTC heaters, meeting diverse market demands. In different environmental conditions, this combined solution provides reliable battery thermal management and a warmly comfortable cabin environment for electric boats.
Service and Competitive Edge:
EVLINK is committed to providing excellent service, going beyond traditional product deliveries. By integrating liquid heaters and PTC heaters, the company offers customers a comprehensive and efficient solution, empowering electric boats for enhanced performance and a comfortable experience. Competitive advantages lie in technological innovation, product quality control, and the collaborative efforts of a professional team.
Specification:
HVCH QA01 Series | |
Heat Output | 15-25kW |
HV Voltage Range | DC 250-870V |
LV Voltage |
DC 24V nominal |
Efficiency | > 95 % |
Controllability Steps | 100W |
Dimensions | 365*313*123mm |
Weight | 9kg |
Temperature Range for Heating | -40 to 90 ℃ |
Temperature Range for Ambient | -40 to 125 ℃ |
Communication | CAN or LIN2.1 |
Dielectric Strength | 3500 V (DC) |
IP Protection Class | IP 67 |
EMC | ECE R10 Rev. 5 |
Insulation Resistance | >500MΩ |
Service Life | 10 years or 10,000 heating hours |
