Automotive High Voltage Water Heater 800v Harnessing High Power

Automotive High Voltage Water Heater 800v Harnessing High Power
Automotive High Voltage Water Heater 800v Harnessing High Power Automotive High Voltage Water Heater 800v Harnessing High Power Automotive High Voltage Water Heater 800v Harnessing High Power

Large Image :  Automotive High Voltage Water Heater 800v Harnessing High Power

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: AZ01
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1500-2000 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

Automotive High Voltage Water Heater 800v Harnessing High Power

Description
Heat Output: 8-18kW HV Voltage Range: DC 350-870V
LV Voltage: DC 24V Or 12V Nominal Efficiency: > 95 %
Controllability Steps: 1% Dimensions: 340*138*125mm
Weight: 6kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Communication: CAN OR LIN
Dielectric Strength: 3500 V (DC) IP Protection Class: IP 67
EMC: ECE R10 Rev. 5 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

automotive high voltage heater 800v

,

automotive high voltage Water heater

,

high voltage Water heater 800v

EVLINK AZ01 Series: HVCH AZ02-Series: Harnessing High Power and Compatibility in One Sleek Package



  1. The water heater is designed to operate silently and without vibration, providing a comfortable and quiet experience.
  2. It is constructed using high-quality materials, ensuring durability and long-term reliability even in demanding high-voltage applications.
  3. The water heater is resistant to corrosion and chemical degradation, providing a long service life and reliable performance.

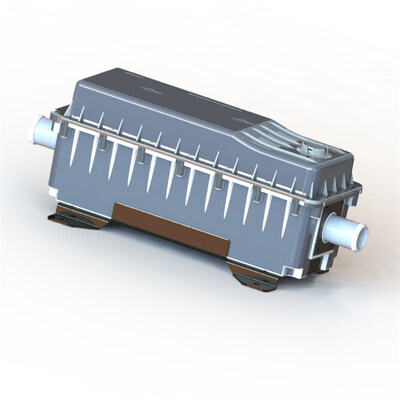

Automotive High Voltage Water Heater 800v Harnessing High Power 0

HVCH AZ01 Series









Product Introduction



Step into the future of vehicular comfort with the HVCH AZ01-Series, a lean yet formidable electric water heater boasting a peak power output of up to 18KW. Unlike the AS series, the AZ01series has shed the requirement for an outgoing line, paving the way for more convenient installation and a sleeker structure. Moreover, it features a specialized ground lead wire, customizable to any length to meet diverse client specifications. For alterations in voltage or power, kindly reach out to our customer service.



Fast, consistent, potent, and dependable, the AZ01-Series stands as a beacon of innovation, ready to heat your vehicle or battery interior without missing a beat. This compact powerhouse guarantees a constant high heat output ranging between 8kW and 18kW, facilitating flexible usage within a power bracket of 350 to 870 volts. An integrated control unit at its core allows for stepless regulation of heat output, either through modulating the water outlet temperature or by capping the maximum heat output or power consumption. Additionally, its CAN compatibility ensures the transmission of vital operational data to the vehicle system, all facilitated through an intelligent diagnostic function.









Specification:



HVCH AZ01 Series
Heat Output     8-18kW
HV Voltage Range     DC 350-870V

LV Voltage

  DC 24V or 12V nominal
Efficiency     > 95 %
Controllability Steps     100W
Dimensions     340*138*125mm
Weight     6kg
Temperature Range for Heating     -40 to 90 ℃
Temperature Range for Ambient     -40 to 125 ℃
Communication     CAN or LIN2.1
Dielectric Strength     3500 V (DC)
IP Protection Class     IP 67
EMC     ECE R10 Rev. 5
Insulation Resistance     >500MΩ
Service Life     10 years or 10,000 heating hours

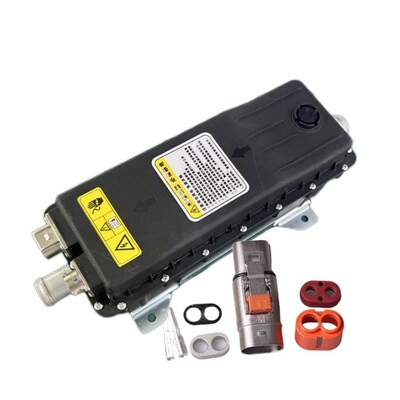

Automotive High Voltage Water Heater 800v Harnessing High Power 1













Product Features:





  • High Power & Compatibility: Addressing heating requirements from 10KW to 18KW, the AZ01 series promises an unrivalled warming experience to all users.

  • Innovative Compact Design: Significantly smaller than other heaters with comparable power outputs, this feature grants it heightened adaptability in various vehicular layouts.

  • Structural Innovation: Developed by EVLINK, the unique design principles embedded in the AZ01 series guarantees both efficiency and stability, setting a new benchmark in heater technology.

  • Versatility across Scenarios: Especially well-suited for buses and other large vehicles, delivering a consistently comforting experience to passengers regardless of external conditions.

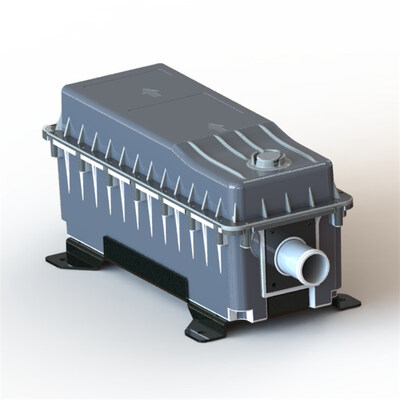

Automotive High Voltage Water Heater 800v Harnessing High Power 2





Safety & Reliability





Transitioning to a novel protection system, the AZ01-series exclusively employs automotive-grade IGBTs to control the heater, fortified with multi-level temperature protection and fuses. This innovation guarantees the comprehensive safety of both the heater and the vehicle, eliminating the need for dual mechanical protection





Application:



In ensuring a safe journey amidst the most challenging climate conditions, vehicles equipped with the A102-series are primed for immediate operation. With a robust power range of 10 to 18 kW, it ably meets the heating, defrosting, and battery heating requirements of large vehicles. Users have the liberty to modulate the power as per their needs, effectively controlling power consumption. Additionally, our custom services offer adjustments based on client requirements, encompassing variables such as voltage and power.









Automotive High Voltage Water Heater 800v Harnessing High Power 3







Our Services



Direct supplier, cutting down on agent fees and reducing your costs.

Substantial discounts on bulk orders, with trial orders also welcomed.

Your inquiries answered within a 24-hour window.

Competitive pricing - both reasonable and competitive.

A manufacturing powerhouse with robust capabilities.

A relentless commitment to meeting your demands.









Competitive Advantage





Safety and reliability underscored

OEM solutions for your unique designs

Stellar and stable performance

Waterproofing paired with superior insulating attributes

Unmatched resistance to dry burning
