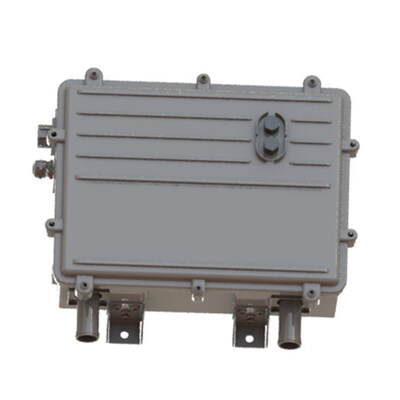

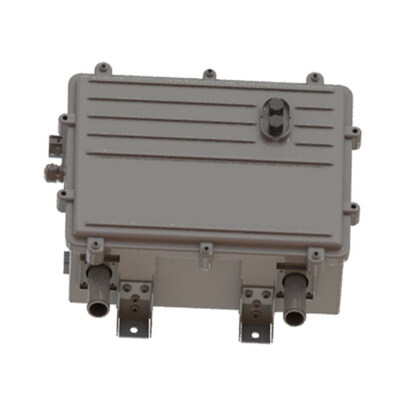

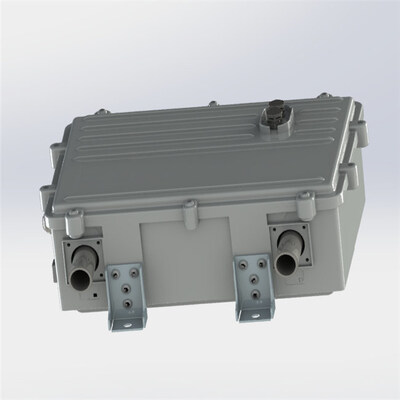

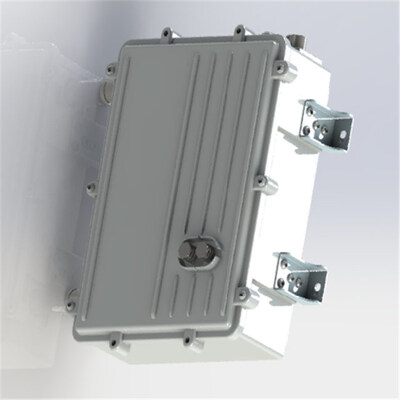

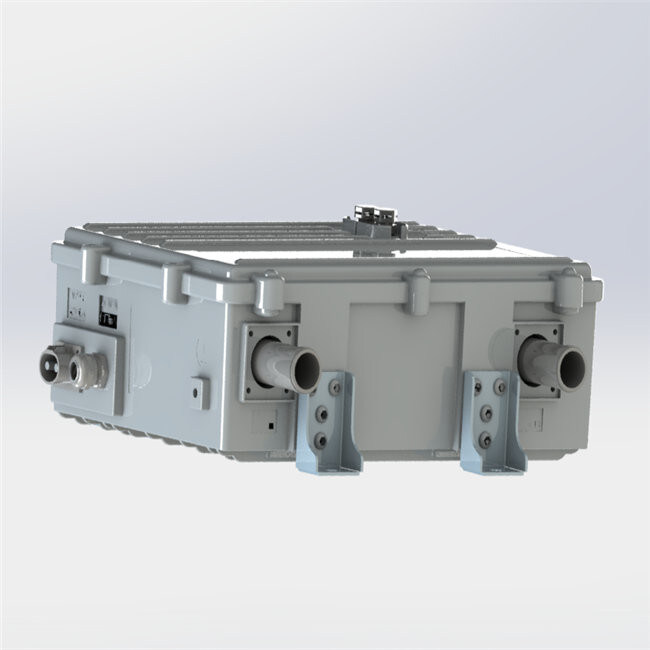

PTC Coolant Heater Hvch Volvo 15-35kW 250-870V 100W High Voltage Water Heater

Certification
China Suzhou EVLINK Electronic Technology Co.,Ltd certification
I'm Online Chat Now

PTC Coolant Heater Hvch Volvo 15-35kW 250-870V 100W High Voltage Water Heater

PTC Coolant Heater Hvch Volvo 15-35kW 250-870V 100W High Voltage Water Heater
PTC Coolant Heater Hvch Volvo 15-35kW 250-870V 100W High Voltage Water Heater PTC Coolant Heater Hvch Volvo 15-35kW 250-870V 100W High Voltage Water Heater PTC Coolant Heater Hvch Volvo 15-35kW 250-870V 100W High Voltage Water Heater PTC Coolant Heater Hvch Volvo 15-35kW 250-870V 100W High Voltage Water Heater PTC Coolant Heater Hvch Volvo 15-35kW 250-870V 100W High Voltage Water Heater

Large Image :  PTC Coolant Heater Hvch Volvo 15-35kW 250-870V 100W High Voltage Water Heater

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1200-1500 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

PTC Coolant Heater Hvch Volvo 15-35kW 250-870V 100W High Voltage Water Heater

Description
Heat Output: 15-25KW HV Voltage Range: DC 250-870V
LV Voltage: DC 24V Nominal Efficiency: > 95 %
Controllability Steps: 1% Dimensions: 365*313*123mm
Weight: 9kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Communication: CAN OR LIN
Dielectric Strength: 3500 V (DC) IP Protection Class: IP 67
EMC: ECE R10 Rev. 5 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

hvch volvo

,

PTC Coolant Heater

,

hvch heater

 HVCH QA01 Series 15-35kW DC Heater, 250-870V, 100W Controllability Steps



  1. It is designed for easy installation and maintenance, with accessible components and user-friendly interfaces.
  2. The water heater is engineered for fast heat-up time, providing hot water on demand without delay.
  3. It is equipped with advanced control features, allowing users to monitor and adjust the water temperature as needed.


PTC Coolant Heater Hvch Volvo 15-35kW 250-870V 100W High Voltage Water Heater 0

In the ever-evolving field of scientific research, the requirement for meticulous temperature management has escalated to unprecedented heights. The HVCH QA01 Series arises as a pivotal innovation in this arena, offering more than just heating solutions; it represents a groundbreaking shift in precision temperature stewardship, meticulously crafted for elite research settings where impeccable, steady, and potent heating capabilities are non-negotiable.

Specification:


HVCH QA01 Series
Heat Output     15-25kW
HV Voltage Range     DC 250-870V

LV Voltage

  DC 24V nominal
Efficiency     > 95 %
Controllability Steps     100W
Dimensions     365*313*123mm
Weight     9kg
Temperature Range for Heating     -40 to 90 ℃
Temperature Range for Ambient     -40 to 125 ℃
Communication     CAN or LIN2.1
Dielectric Strength     3500 V (DC)
IP Protection Class     IP 67
EMC     ECE R10 Rev. 5
Insulation Resistance     >500MΩ
Service Life     10 years or 10,000 heating hours





PTC Coolant Heater Hvch Volvo 15-35kW 250-870V 100W High Voltage Water Heater 1
PTC Coolant Heater Hvch Volvo 15-35kW 250-870V 100W High Voltage Water Heater 2





Product Attributes:


  • Exceptional Water Resistance: Our unit stands steadfast, even in the face of humid laboratory atmospheres or unexpected spills, promising uncompromised functionality. Rest assured with the validation offered by an IP 67 certification.
  •
  • Precision Performance Control: This sophisticated heater affords meticulous control, whether it's modulating the water outlet temperature or imposing a cap on the maximum heat output, paving the way for unparalleled precision in your experiments.
  •
  • Dual-layered Safety Measures: A harmony of mechanical and electronic safety mechanisms are incorporated, forming a robust line of defense against potential operational hazards.
  •
  • Complete Insulation: We have accomplished a full dichotomy between water and electrical components, an essential safety benchmark for laboratory apparatuses.
  •
  • Cutting-edge PTC Technology: Harness the power of dynamic adaptation with our heater that leverages PTC technology, autonomously adjusting power outputs while firmly preventing surpassing a pre-set temperature ceiling.


PTC Coolant Heater Hvch Volvo 15-35kW 250-870V 100W High Voltage Water Heater 3



Applications:

In the distinguished world of scientific discoveries, precision stands as the pinnacle requirement. The HVCH QA01 Series has found its calling in the revered corridors of top-tier enterprises and national laboratories. It proves indispensable, especially when it comes to assessing thermal management units, simulating battery heating phenomena, and facilitating rapid start-ups in ultra-low temperature environments. Its amalgamation of power, precision, and dependability crowns it as a quintessential instrument in pioneering research initiatives.


PTC Coolant Heater Hvch Volvo 15-35kW 250-870V 100W High Voltage Water Heater 4





Our Services:

  • Direct Procurement: Experience the ease and cost-effectiveness of procuring directly from the source.
  • Bulk Order Benefits: Avail of substantial discounts on bulk purchases, facilitating budget-friendly procurement strategies.
  • Rapid Responses: Your queries are our priority, with responses guaranteed within a 24-hour timeframe.
  • Competitive Pricing: Experience the luxury of acquiring premium products at prices that don't break the bank.
  • Manufacturer's Assurance: Trust in the quality and reliability that comes from direct sourcing.
  • Client-centric Approach: Your goals form our mission, underpinning a service approach centered around meeting and exceeding your expectations.


Competitive Advantages:

  • Safety and Dependability: Our products undergo rigorous quality assessments, ensuring they stand as bastions of safety and reliability in varied conditions.
  • Customized Solutions: Take advantage of our OEM services, allowing for adaptations to meet your distinctive design specifications.
  • Stable Performance: Gain a trustworthy ally in your research endeavors with our products, known for their stable performance across diverse environmental settings.
  • Weather Resilient: Trust in our products' resilience, offering exceptional insulation and resistance to dry burning, providing longevity and reliable performance.
  • High-Voltage and High-Power Excellence: Our heaters epitomize the convergence of high voltage and power capabilities, intelligence, and reliability, affording you an unparalleled competitive advantage in the market.
