Automotive High Voltage Coolant Heater For Electric Vehicles

Certification
China Suzhou EVLINK Electronic Technology Co.,Ltd certification
I'm Online Chat Now

Automotive High Voltage Coolant Heater For Electric Vehicles

Automotive High Voltage Coolant Heater For Electric Vehicles

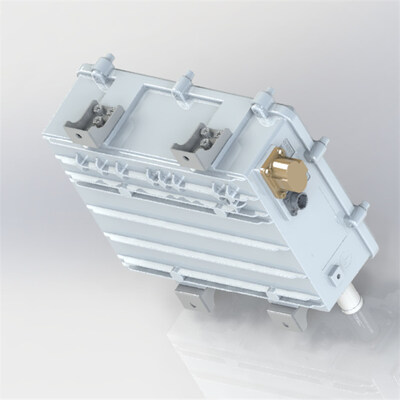

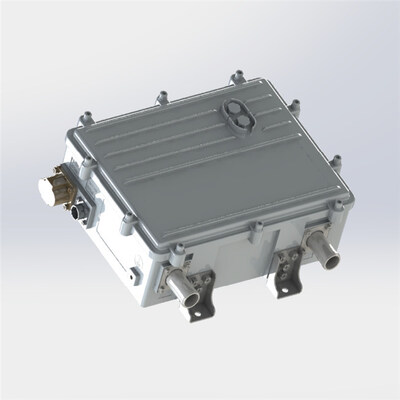

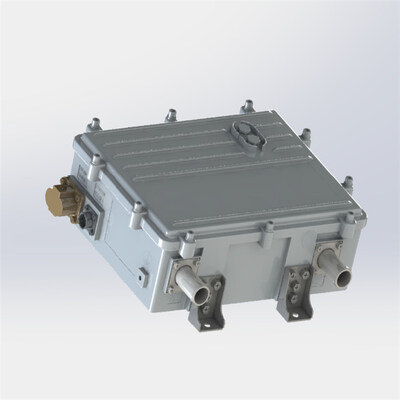

Automotive High Voltage Coolant Heater For Electric Vehicles Automotive High Voltage Coolant Heater For Electric Vehicles Automotive High Voltage Coolant Heater For Electric Vehicles Automotive High Voltage Coolant Heater For Electric Vehicles

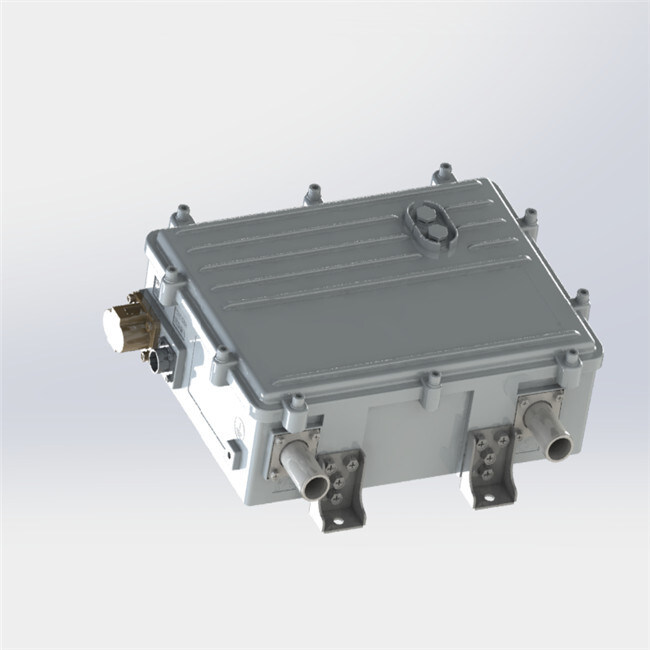

Large Image :  Automotive High Voltage Coolant Heater For Electric Vehicles

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QB01
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1500-2000 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

Automotive High Voltage Coolant Heater For Electric Vehicles

Description
Heat Output: 20-35KW HV Voltage Range: DC 250-1100V
LV Voltage: DC 24V Nominal Efficiency: > 95 %
Controllability Steps: 1% Dimensions: 365*313*123mm
Weight: 9kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Communication: CAN OR LIN
Dielectric Strength: 3500 V (DC) IP Protection Class: IP 67
EMC: ECE R10 Rev. 5 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

Automotive High Voltage Coolant Heater

,

PTC Heater for Electric Vehicles

,

Automotive Coolant Heater

HVCH QB01 Series: The Pinnacle of Innovation in High-Voltage Coolant Heaters



  1. With its advanced heating technology, our High Voltage Water Heater delivers rapid and precise heating for a consistent supply of hot water.
  2. It is compact and lightweight, allowing for easy installation and integration into existing high-voltage systems.
  3. The water heater features intelligent temperature control, ensuring accurate and consistent heating for enhanced performance.

Automotive High Voltage Coolant Heater For Electric Vehicles 0





As we stride into a future of technological advancements, EVLINK is leading the charge with the HVCH QB01 Series, a bespoke solution for vehicles operating at DC 870V nominal voltage. Since its inception in 2021, this series has revolutionized the industry with improvements in over-current ability and voltage capacity, creating a steadfast reputation in the market.





Automotive High Voltage Coolant Heater For Electric Vehicles 1





Specification:





HVCH QB01 Series
Heat Output    20-35kW
HV Voltage Range     DC 350-1100V

LV Voltage

  DC 24V nominal
Efficiency     > 95 %
Controllability Steps     100W
Dimensions     365*313*123mm
Weight     10kg
Temperature Range for Heating     -40 to 90 ℃
Temperature Range for Ambient     -40 to 125 ℃
Communication     CAN or LIN2.1
Dielectric Strength     3500 V (DC)
IP Protection Class     IP 67
EMC     ECE R10 Rev. 5
Insulation Resistance     >500MΩ
Service Life     10 years or 10,000 heating hours







Product Features:





  • Self-Regulating PTC Thermistor Heater: A unique characteristic of this series, utilizing PTC heating technology, dynamically adapts its power to prevent surpassing a specified maximum temperature, ensuring high reliability and energy efficiency without needing additional switching components.

  •

  • Complete Separation of Water and Electricity: Achieving an impeccable balance between heat transmission efficiency and DC 3500 V insulation requirements, a technology that has been a cornerstone in our 870V (nominal voltage) products extensively used in heavy dump trucks since 2021.

  •

  • Excellent Water Resistance: With an IP 67 certification, this series promises superior protection against water and dust, a necessity for optimal functioning in wet conditions and on muddy roads.

  •

  • Stepless Regulation Performance: Enables flexible power management through control over the water outlet temperature or by limiting the maximum heat output or power consumption, a proven asset in thousands of vehicles over three years.

  •

  • Reliable Dual Self-Protection System: Incorporates both mechanical and electronic safety mechanisms to protect against short circuits, overloads, or overheating scenarios. The high-voltage circuit is further safeguarded with high-voltage relays and current fuses.





Automotive High Voltage Coolant Heater For Electric Vehicles 2





Application:





Ensuring operational readiness even in the most challenging climates, the HVCH QB01 series offers power outputs ranging from 25 to 35 kW. These are tailored to meet the heating, defrosting, and battery heating requirements of large vehicles. Offering a customized service that allows for adjustments based on customer specifications regarding voltage and power, promising a safe and warm journey at all times.



Automotive High Voltage Coolant Heater For Electric Vehicles 3







Our Service:





Direct dealings to eliminate intermediary costs, offering you the best value for your investment.



Maintaining a competitive edge with rational and competitive pricing.



We welcome both substantial and trial orders, with attractive discounts on bulk purchases.



Striving to cater to your needs with utmost diligence and efficiency.



Backed by strong production prowess as the original manufacturer, we assure premium quality products.



We pledge to address your queries within 24 hours, fostering seamless communication.





Competitive Advantage:

Consistent performance assurance across diverse environmental settings.



Exemplifying superior water resistance and insulation attributes, setting a new standard in the industry.



Exhibiting outstanding resistance to dry burning, enhancing the product's lifespan significantly.



Our priority is to offer products that epitomize safety and reliability, standing the test of time.



Realizing your unique designs with our specialized OEM services.



A representation of high intelligence, high voltage, high power, and unparalleled reliability, setting a benchmark in the industry.
