Thermal Positive Temperature Coefficient Ptc Heater 6-10kW DC 690V

Certification
China Suzhou EVLINK Electronic Technology Co.,Ltd certification
I'm Online Chat Now

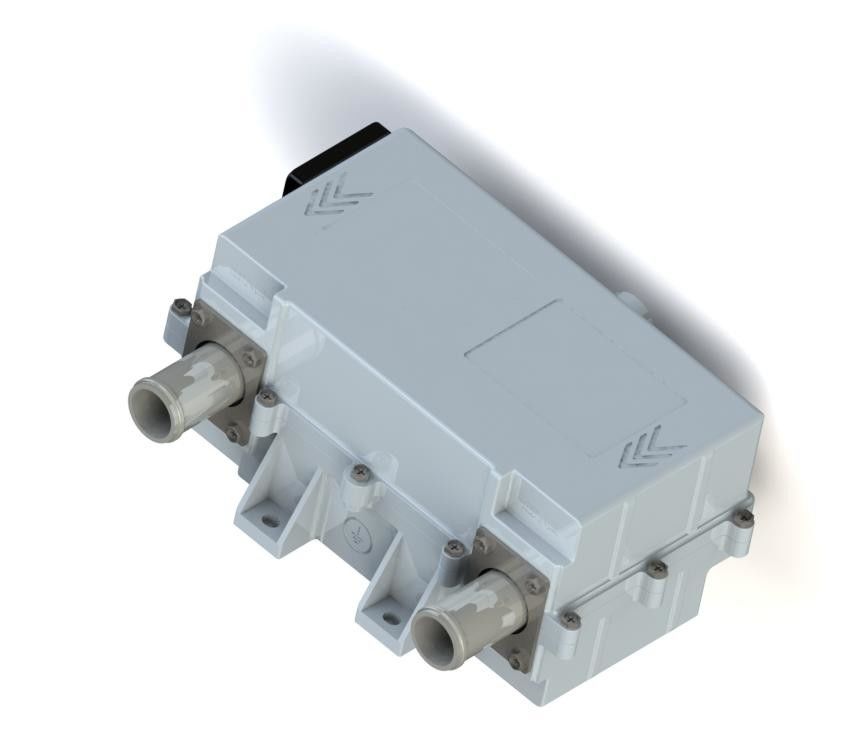

Thermal Positive Temperature Coefficient Ptc Heater 6-10kW DC 690V

Thermal Positive Temperature Coefficient Ptc Heater 6-10kW DC 690V
Thermal Positive Temperature Coefficient Ptc Heater 6-10kW DC 690V

Large Image :  Thermal Positive Temperature Coefficient Ptc Heater 6-10kW DC 690V

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: KB01
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $300-500 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

Thermal Positive Temperature Coefficient Ptc Heater 6-10kW DC 690V

Description
Heat Output: 6-12kW HV Voltage Range: DC 350-870V
Efficiency: > 95 % Dimensions: 221*168*100mm
Weight: 3kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Dielectric Strength: 3500 V (DC)
IP Protection Class: IP 67 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

positive thermal coefficient heater

,

positive temperature coefficient heater

,

positive temperature coefficient ptc heater

Thermal Positive Temperature Coefficient Ptc Heater 6-10kW DC 690V





  1. It complies with international standards and certifications, ensuring adherence to quality and safety requirements.
  2. The PTC heater is backed by comprehensive technical support and customer service to ensure a seamless user experience.
  3. It is suitable for a wide range of high-voltage applications, including industrial, commercial, and utility sectors.

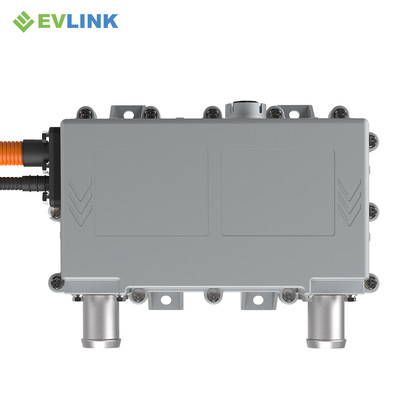

Thermal Positive Temperature Coefficient Ptc Heater 6-10kW DC 690V 0

HVCH KB01 Series is an extension of KA series. Some customers don't need its controller. We increase the power of KB up to 12kW. There is no circuit board inside, only temperature controller , temperature sensor, and high voltage current fuse. The advantage of KB is that the price is very affordable,some customers use it for braking energy recovery.



HVCH KB01-Series could quickly, consistently,powerfully and reliably heat the vehicle or the battery. The compact device ensures a constantly high heat output of 6kW-12kW and allows for flexible use in a power range of 350 to 850 Volts.





Specification:



HVCH KB01 Series
Heat Output     6-12kW
HV Voltage Range     DC 350-850V
Efficiency     > 95 %
Dimensions     221*168*100mm
Weight     3kg
Temperature Range for Heating     -40 to 90 ℃
Temperature Range for Ambient     -40 to 125 ℃
Dielectric Strength     3500 V (DC)
IP Protection Class     IP 67
Insulation Resistance     >500MΩ
Service Life     10 years or 10,000 heating hours

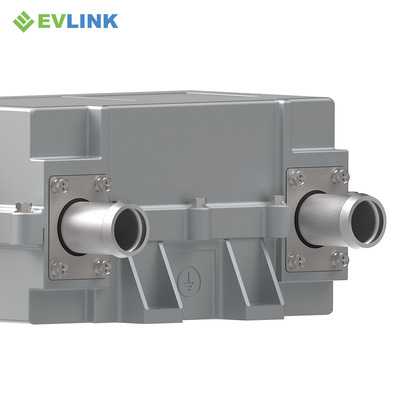

Thermal Positive Temperature Coefficient Ptc Heater 6-10kW DC 690V 1

Product Features:



Ø Excellent Water Resistance.

During the actual operation, muddy roads and wet rainy days and long playing in high temperature, all require our high voltage coolant heater excellent waterproof performance.IP 67 Water and dust proof reports can be provided.



Ø Completely Separation of Water and Electricity

Water and electricity is completely separated.Different from other manufacturers,we solve perfectly the contradiction between the heat transmission efficiency with the Insulation requirement of DC 3500 V.Benefits from this technical improvement, our 870V (nominal voltage) products have been mass produced and used in heavy dump trucks in 2021.



Ø PTC thermistor heater with self - controlled constant temperature.

PTC water coolant heater come with all advantages of the PTC heating technology. Thanks to the PTC effect, the heating elements dynamically adjust their power without exceeding a maximum temperature. High operational reliability and energy efficiency without any additional switching elements.

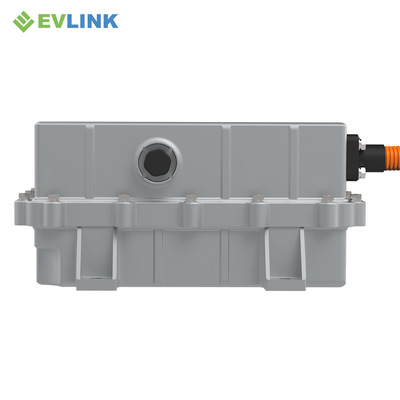

Thermal Positive Temperature Coefficient Ptc Heater 6-10kW DC 690V 2



Application:



To guarantee a safe journey even in challenging climate conditions, vehicles must be ready for operation right from the start.

Sufficient power of 25 to 35kw can meet the heating, defrosting, battery heating and other needs of large vehicles. Users can adjust the power according to the demand, control the power consumption. We also provide customized service, which can be adjusted according to customer requirements, such as voltage, power, etc

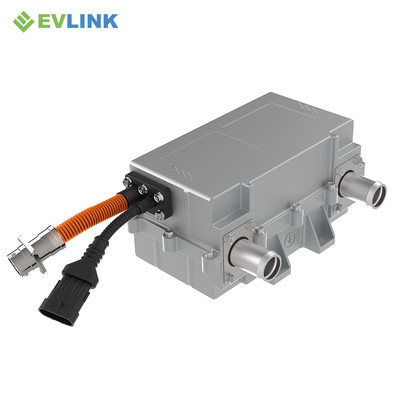

        Thermal Positive Temperature Coefficient Ptc Heater 6-10kW DC 690V 3



Our service:



1. We can supply you directly, save the agent fees and reduce your cost;
2. Big order comes with big discount, trial orders are also welcome;
3. Reply your enquiry within 24 hours;
4. Price advantages:reasonable and competitive;
5. We are manufacturer and possess strong strength;
6. Do our utmost to meet your demands.





Competitive Advantage:


1. Safety and reliability
2. OEM for your design
3. Stable performance
4. Water-proof, excellent insulating property

5. Excellent dry burning resistance
6. High Voltage,High Power,High Intelligence,High Reliability
