High Voltage Car Ptc Heater For Ev Commercial Vehicles Electric

Certification
China Suzhou EVLINK Electronic Technology Co.,Ltd certification
I'm Online Chat Now

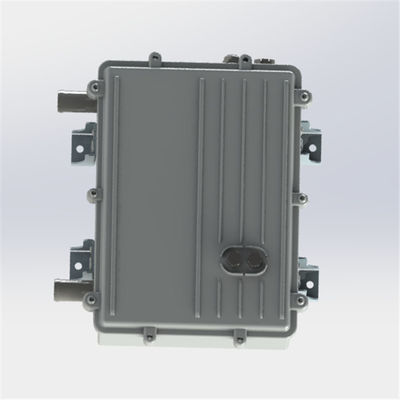

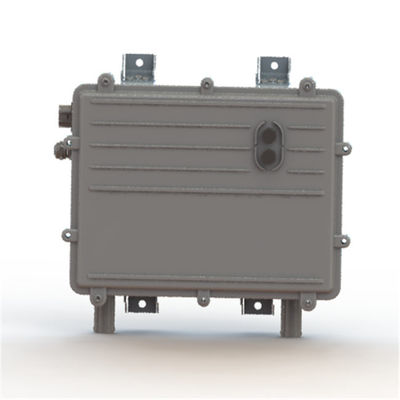

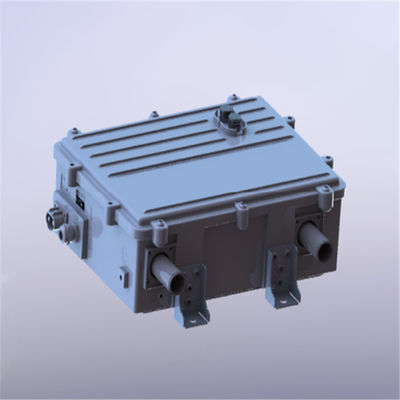

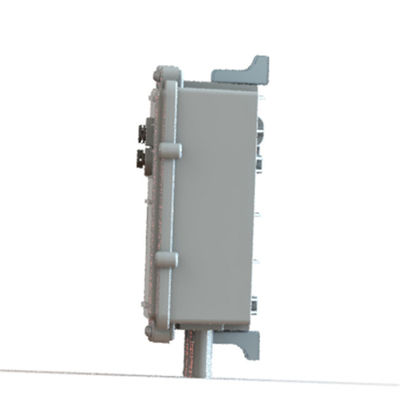

High Voltage Car Ptc Heater For Ev Commercial Vehicles Electric

High Voltage Car Ptc Heater For Ev Commercial Vehicles Electric
High Voltage Car Ptc Heater For Ev Commercial Vehicles Electric High Voltage Car Ptc Heater For Ev Commercial Vehicles Electric High Voltage Car Ptc Heater For Ev Commercial Vehicles Electric High Voltage Car Ptc Heater For Ev Commercial Vehicles Electric High Voltage Car Ptc Heater For Ev Commercial Vehicles Electric

Large Image :  High Voltage Car Ptc Heater For Ev Commercial Vehicles Electric

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1200-1500 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

High Voltage Car Ptc Heater For Ev Commercial Vehicles Electric

Description
Heat Output: 15-25KW HV Voltage Range: DC 250-870V
LV Voltage: DC 24V Nominal Efficiency: > 95 %
Controllability Steps: 1% Dimensions: 365*313*123mm
Weight: 9kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Communication: CAN OR LIN
Dielectric Strength: 3500 V (DC) IP Protection Class: IP 67
EMC: ECE R10 Rev. 5 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

High Voltage car ptc heater

,

ptc heater ev car

,

ptc electric heater

EVLINK HVCH QA01 Series: Prioritizing Safety in High Voltage PTC Heaters for Commercial Vehicles



  1. It is energy-efficient, helping to minimize power consumption and optimize overall system efficiency.
  2. The PTC heater is engineered to operate reliably in extreme temperature conditions, ensuring consistent heating performance.
  3. It provides rapid heat dissipation, reducing the risk of overheating and prolonging the lifespan of the heater.

High Voltage Car Ptc Heater For Ev Commercial Vehicles Electric 0



Product Introduction:





In the frigid embrace of winter, ensuring stable and continuous warmth inside large commercial vehicles becomes a challenge. Enter the EVLINK HVCH QA01 Series, an interior heater designed specifically for this task. Tailored for big vehicles, this masterpiece doesn't just warm the water circuits but also flexibly adjusts its performance, guaranteeing swift, consistent, potent, and dependable heating every single time.







Specification:



HVCH QA01 Series
Heat Output     15-25kW
HV Voltage Range     DC 250-870V

LV Voltage

  DC 24V nominal
Efficiency     > 95 %
Controllability Steps     100W
Dimensions     365*313*123mm
Weight     9kg
Temperature Range for Heating     -40 to 90 ℃
Temperature Range for Ambient     -40 to 125 ℃
Communication     CAN or LIN2.1
Dielectric Strength     3500 V (DC)
IP Protection Class     IP 67
EMC     ECE R10 Rev. 5
Insulation Resistance     >500MΩ
Service Life     10 years or 10,000 heating hours









High Voltage Car Ptc Heater For Ev Commercial Vehicles Electric 1

High Voltage Car Ptc Heater For Ev Commercial Vehicles Electric 2











Product Attributes:



Exceptional Water Resistance: Our high voltage coolant heater is engineered to withstand muddy terrains, pouring rains, or extended high-temperature operations, ensuring top-notch waterproofing. We even supply IP 67 water and dustproof reports as proof.



Adaptable Performance: Having been employed in thousands of vehicles over three years, our coolant heater has been universally praised for its top-tier quality.



Dual-layered Safety Mechanism: Our safety mechanism, comprising both mechanical and electronic devices, acts promptly in the face of short circuits, overloads, or over-temperature situations. To enhance safety, we've incorporated high voltage relays and current fuses in the circuit.



Total Separation of Electricity and Water: We've achieved a complete insulation of water from electricity, addressing the balance between heat transmission efficiency and the insulation needs of DC 3500 V.



State-of-the-art PTC Technology: Our PTC water coolant heater fully embraces the strengths of PTC heating technology. The PTC effect ensures the heating elements adjust their power output autonomously, never surpassing a set temperature, thereby ensuring optimal operational reliability and energy efficiency without additional switching elements.





High Voltage Car Ptc Heater For Ev Commercial Vehicles Electric 3





Applications:



EVLINK heaters are known for their emphasis on safety, offering a level of security that's superior to traditional electric heaters, which pose risks of burning out. Our heaters have been utilized extensively by renowned enterprises and national labs, emerging as an indispensable tool. Notably, EVLINK had the honor of being used in vehicles dedicated to journalists during the 2022 Beijing Winter Olympics, earning unanimous praise.





High Voltage Car Ptc Heater For Ev Commercial Vehicles Electric 4







Our Services

Direct supply to you, bypassing intermediaries, saving on agency fees and reducing your overall expenditure.



Significant orders get significant discounts, and we're open to trial orders.



Expect a response to your inquiries within a mere 24 hours.



Competitive and reasonable pricing for top-tier products.



As manufacturers, we possess the requisite expertise and resources to address all your needs.



We're committed to exceeding your expectations at every turn.



Competitive Advantages



Climate-Adaptive Resilience: Our offerings are crafted to excel in various environmental conditions, guaranteeing excellent insulation and preventing dry burning, thus securing adaptability across different climates and settings.



Tailor-Made Innovations: We are adept at providing OEM services, sculpting our products to perfectly resonate with your unique design requirements, thereby delivering personalized solutions at every instance.



Consistent Operational Efficiency: Our products are celebrated for their unwavering performance, expertly built to endure diverse environmental scenarios, thus assuring a long-lasting and reliable service life.



Pinnacle of High-Voltage and High-Power Technology: Our heaters epitomize the synergy of high voltage, mighty power, and intelligent functionalities, conferring an unparalleled competitive advantage in the industry.



Trustworthy and Secure: Undergoing rigorous quality assessments, our products vow to provide a safe and dependable experience, even under varied and demanding conditions.
