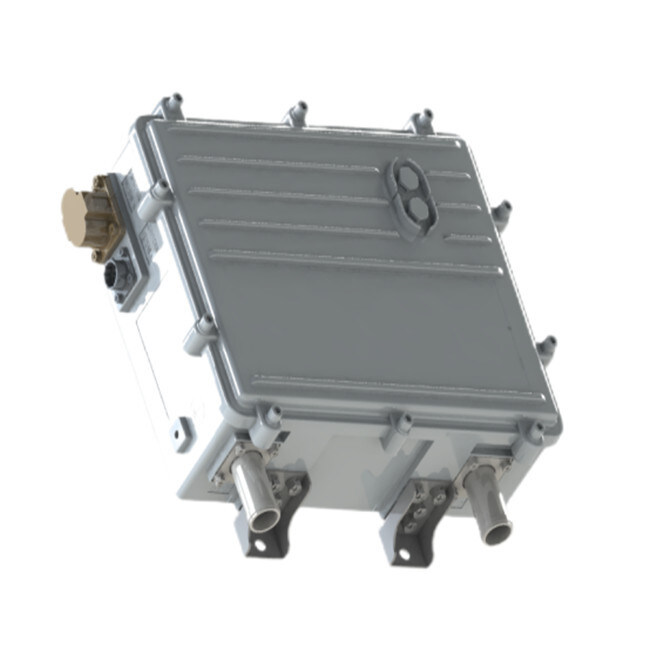

Electric Ptc High Voltage Coolant Heater Auxiliary

Product Details

Place of Origin: CHINA

Brand Name: EVPTC

Certification: CE

Model Number: QB01

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: $1500-2000 per set

Packaging Details: carton or wooden case packing

Delivery Time: 15-20days

Payment Terms: T/T

Supply Ability: 100 sets per 2 weeks

Get Best Price
Product Details
High Light:

ptc coolant heater

,

ptc High Voltage Coolant Heater

,

Electric Coolant Heaters

Heat Output:
20-35KW
HV Voltage Range:
DC 250-1100V
LV Voltage:
DC 24V Nominal
Efficiency:
> 95 %
Controllability Steps:
1%
Dimensions:
365*313*123mm
Weight:
9kg
Temperature Range For Heating:
-40 To 90 ℃
Temperature Range For Ambient:
-40 To 125 ℃
Communication:
CAN OR LIN
Dielectric Strength:
3500 V (DC)
IP Protection Class:
IP 67
EMC:
ECE R10 Rev. 5
Insulation Resistance:
>500MΩ
Service Life:
10 Years Or 10,000 Heating Hours
Heat Output:
20-35KW
HV Voltage Range:
DC 250-1100V
LV Voltage:
DC 24V Nominal
Efficiency:
> 95 %
Controllability Steps:
1%
Dimensions:
365*313*123mm
Weight:
9kg
Temperature Range For Heating:
-40 To 90 ℃
Temperature Range For Ambient:
-40 To 125 ℃
Communication:
CAN OR LIN
Dielectric Strength:
3500 V (DC)
IP Protection Class:
IP 67
EMC:
ECE R10 Rev. 5
Insulation Resistance:
>500MΩ
Service Life:
10 Years Or 10,000 Heating Hours
Product Description

HVCH QB01 Series – Spearheading Excellence in High Voltage Coolant Heaters



  1. The heater is designed to be maintenance-free, with long intervals between servicing requirements.
  2. It is equipped with built-in diagnostics and self-monitoring capabilities, allowing for quick and accurate troubleshooting.
  3. The PTC heater offers excellent thermal efficiency, maximizing heat output while minimizing energy consumption.

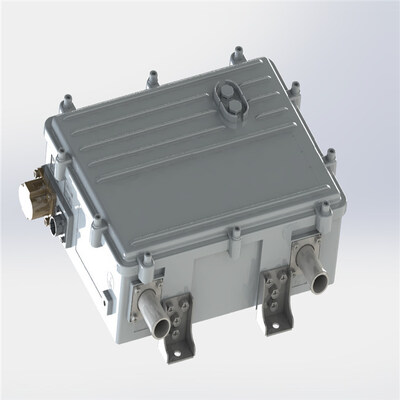

Electric Ptc High Voltage Coolant Heater Auxiliary 0







EVLINK is proud to present the HVCH QB01 series, a benchmark in high-voltage coolant heaters, especially designed to cater to vehicles with a nominal voltage of DC 870V. This series showcases significant improvements in voltage capacity and over-current ability compared to the QA series, making it an industry leader in vehicle heating solutions.





Specification:





HVCH QB01 Series
Heat Output    20-35kW
HV Voltage Range     DC 350-1100V

LV Voltage

  DC 24V nominal
Efficiency     > 95 %
Controllability Steps     100W
Dimensions     365*313*123mm
Weight     10kg
Temperature Range for Heating     -40 to 90 ℃
Temperature Range for Ambient     -40 to 125 ℃
Communication     CAN or LIN2.1
Dielectric Strength     3500 V (DC)
IP Protection Class     IP 67
EMC     ECE R10 Rev. 5
Insulation Resistance     >500MΩ
Service Life     10 years or 10,000 heating hours







Product Features:



ØSelf-Regulating PTC Thermistor Heater: Thanks to the benefits of PTC heating technology, this series offers dynamic power adjustment without exceeding a specified maximum temperature, ensuring high operational reliability and energy efficiency.



ØReliable Dual Self-Protection System: Integrated with both mechanical and electronic protection measures, this feature effectively counters short circuits, overloads, or over-temperature conditions. A bonus is the addition of high-voltage relays and current fuses in the high-voltage circuit.



ØComplete Separation of Water and Electricity: This innovation perfectly balances heat transmission efficiency with a DC 3500 V insulation requirement, a feat already acknowledged and utilized in heavy dump trucks since 2021.



ØExcellent Water Resistance: This feature ensures the product can withstand harsh conditions, including wet and muddy environments, showcasing an IP 67 certification for water and dust resistance.



ØStepless Regulation Performance: Allows for precise control by regulating the water outlet temperature or limiting the maximum heat output or power consumption, backed by three years of successful application in thousands of vehicles.

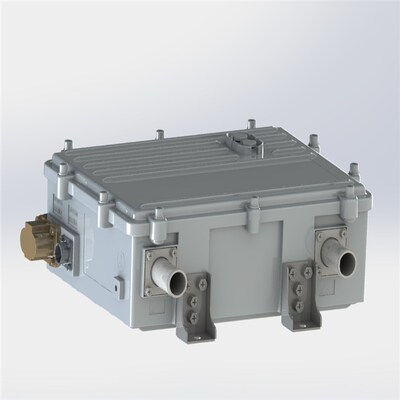

Electric Ptc High Voltage Coolant Heater Auxiliary 1





Application:







Ensuring vehicle readiness in challenging climates is a priority. The HVCH QB01 series, with power outputs ranging from 25 to 35 kW, efficiently meets large vehicle demands for heating, defrosting, and battery heating. Additionally, our customizable service allows for adaptations to voltage and power specifications as per customer preferences, paving the way for a comfortable and safe journey every time.

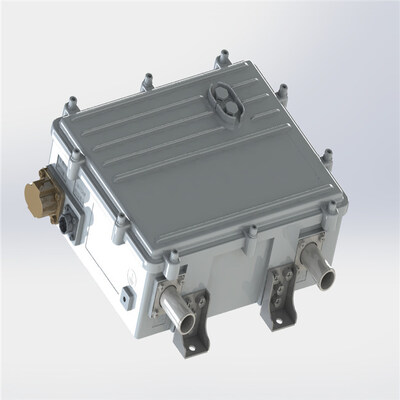

Electric Ptc High Voltage Coolant Heater Auxiliary 2
