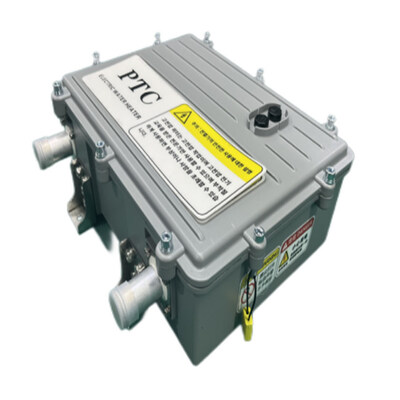

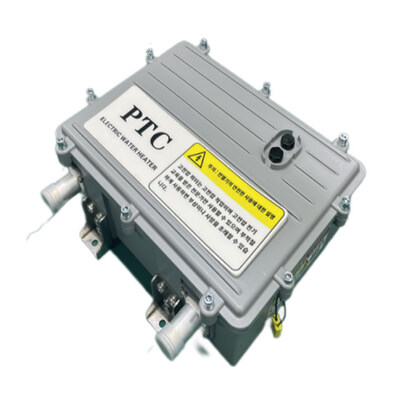

Battery High Voltage Heater Ptc In Electric Buses Introduction

Battery High Voltage Heater Ptc In Electric Buses Introduction
Battery High Voltage Heater Ptc In Electric Buses Introduction Battery High Voltage Heater Ptc In Electric Buses Introduction Battery High Voltage Heater Ptc In Electric Buses Introduction

Large Image :  Battery High Voltage Heater Ptc In Electric Buses Introduction

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QB01
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1500-2000 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

Battery High Voltage Heater Ptc In Electric Buses Introduction

Description
Heat Output: 20-35KW HV Voltage Range: DC 250-1100V
LV Voltage: DC 24V Nominal Efficiency: > 95 %
Controllability Steps: 1% Dimensions: 365*313*123mm
Weight: 9kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Communication: CAN OR LIN
Dielectric Strength: 3500 V (DC) IP Protection Class: IP 67
EMC: ECE R10 Rev. 5 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

high voltage battery heater

,

high voltage heater ptc

,

battery high voltage heater ptc

 QB01-Series: The Vanguard of Superior Comfort in Electric Buses Introduction



  1. Our High Voltage PTC Heater operates silently and without vibration, providing a comfortable and quiet working environment.
  2. The heater is designed to be highly durable, with a rugged construction that can withstand harsh operating conditions.
  3. It is resistant to corrosion and chemical degradation, ensuring long-term performance and reliability.



Specification:

HVCH QB01 Series
Heat Output 20-35kW
HV Voltage Range DC 350-1100V
LV Voltage DC 24V nominal
Efficiency > 95 %
Controllability Steps 100W
Dimensions 365*313*123mm
Weight 10kg
Temperature Range for Heating -40 to 90 ℃
Temperature Range for Ambient -40 to 125 ℃
Communication CAN or LIN2.1
Dielectric Strength 3500 V (DC)
IP Protection Class IP 67
EMC ECE R10 Rev. 5
Insulation Resistance 500MΩ
Service Life 10 years or 10,000 heating hours







Battery High Voltage Heater Ptc In Electric Buses Introduction 0






Introduction

In the electrification era where innovation is paramount, the QB01-Series takes the lead, ushering a new dawn of heating solutions specifically designed for modern electric buses and commercial vehicles. It epitomizes "The High-Voltage Future" guaranteeing fast, uniform, and dependable heating solutions.







Battery High Voltage Heater Ptc In Electric Buses Introduction 1



Features at a Glance



Dynamic Adjustability: The integrated control unit enables seamless adjustment of heat output, either through modulation of water outlet temperature or by delineating limits on the heat output and power consumption.



Smart Communication: Apart from being a superior heater, the QB01-Series boasts CAN compatibility, becoming a hub of vital operational data exchange through intelligent diagnostic functions.



Steadfast Power Supply: A remarkable feature of the QB01-Series is its stable 30kW heat output, which efficiently serves electric power ranges spanning from 600V to 1100V.



Technical Details



Wide Voltage Range: This series impressively delivers full heating capacity within a range of 450 V DC to 875 V DC, extending up to 1150 V DC without compromising efficiency.



Heating Optimization: Experience the 35 kW heating capacity, adjustable to meet a wide range of needs, ensuring a warm and comfortable environment.



Effortless Connectivity: Its ability to integrate smoothly with CAN communication channels sets it apart in the market, promising seamless operations.



Battery High Voltage Heater Ptc In Electric Buses Introduction 2



Environmentally Friendly Aspects



Zero Emissions: Aiming for a cleaner future, the QB01-Series guarantees 100% emission-free heating, setting a new standard in the industry.



Silent Operation: It operates quietly, eliminating any disturbances usually caused by exhaust fumes, offering a peaceful journey to its occupants.



Battery High Voltage Heater Ptc In Electric Buses Introduction 3



Safety and Dependability



Unwavering Safety Measures: The QB01-Series is grounded on a blueprint of layered safety protocols, ensuring continuous and reliable heating without sacrificing safety norms.



Reliable Heating Delivery: Be it ensuring the comfort of passengers or safeguarding battery systems, this series guarantees swift and consistent heating delivery.



Why Choose the QB01-Series?



Superior Power & Consistency: It doesn’t just provide heat but does so efficiently and consistently, promising peak performance every time.



Streamlined Efficiency: The hallmark of the QB01-Series is its ability to deliver heat with optimal efficiency, making it a trusted choice for modern electric buses.
