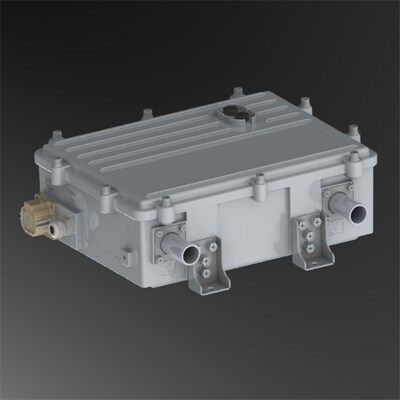

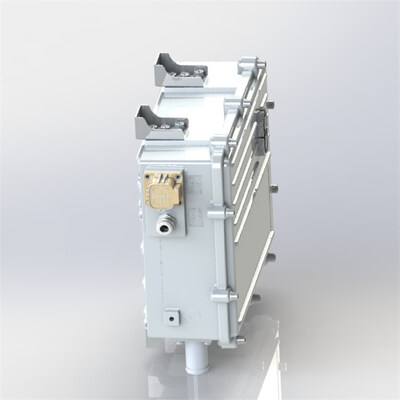

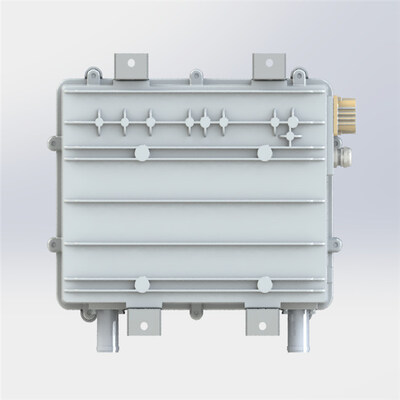

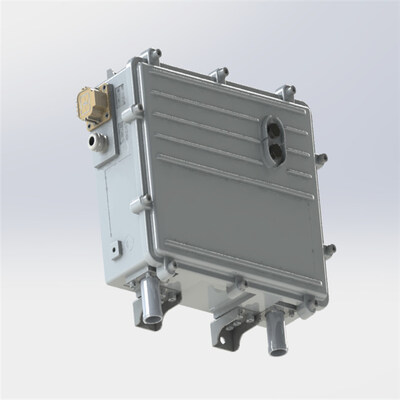

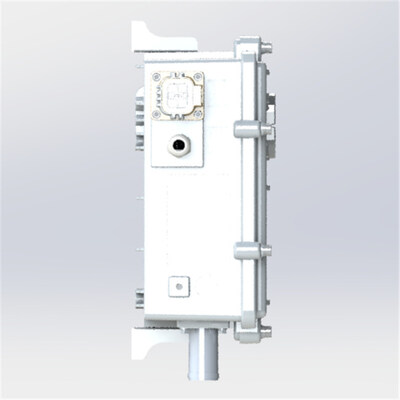

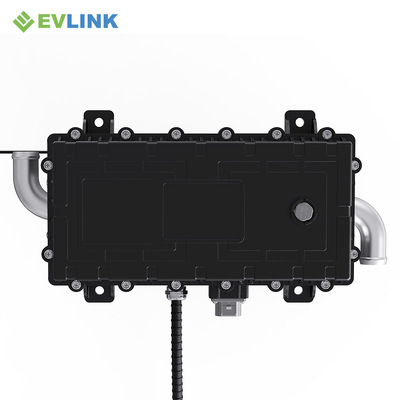

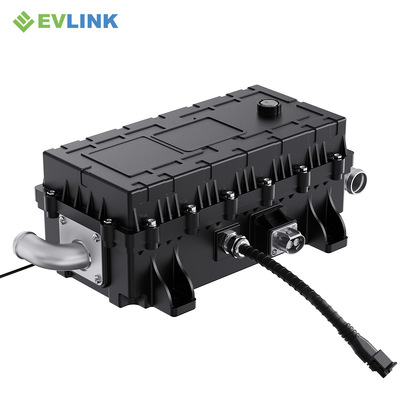

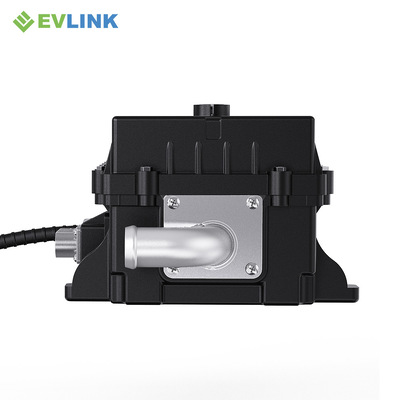

DC 690V High Voltage Ptc Heater System For CATL BTMS 15-35kW

DC 690V High Voltage Ptc Heater System For CATL BTMS 15-35kW
DC 690V High Voltage Ptc Heater System For CATL BTMS 15-35kW DC 690V High Voltage Ptc Heater System For CATL BTMS 15-35kW DC 690V High Voltage Ptc Heater System For CATL BTMS 15-35kW DC 690V High Voltage Ptc Heater System For CATL BTMS 15-35kW DC 690V High Voltage Ptc Heater System For CATL BTMS 15-35kW DC 690V High Voltage Ptc Heater System For CATL BTMS 15-35kW

Large Image :  DC 690V High Voltage Ptc Heater System For CATL BTMS 15-35kW

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QC01
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1000-1500 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

DC 690V High Voltage Ptc Heater System For CATL BTMS 15-35kW

Description
Heat Output: 15-35KW HV Voltage Range: DC 350-900V
LV Voltage: DC 24V Nominal Efficiency: > 95 %
Controllability Steps: 1% Dimensions: 365*313*123mm
Weight: 9kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Communication: CAN OR LIN
Dielectric Strength: 3500 V (DC) IP Protection Class: IP 67
EMC: ECE R10 Rev. 5 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

high voltage ptc

,

High Voltage Ptc Heater System

,

690V High Voltage Ptc Heater

.QC01 Series (15-35kW) Nominal Voltage DC 690V High Voltage Coolant Heater Designed for CATL BTMS



  1. It is designed with safety as a priority, incorporating features such as short-circuit protection and insulation safeguards.
  2. The heater is capable of withstanding voltage fluctuations and surges, ensuring stable and reliable heating performance.
  3. It is engineered for longevity, with high-quality components and materials that provide durability and robustness.

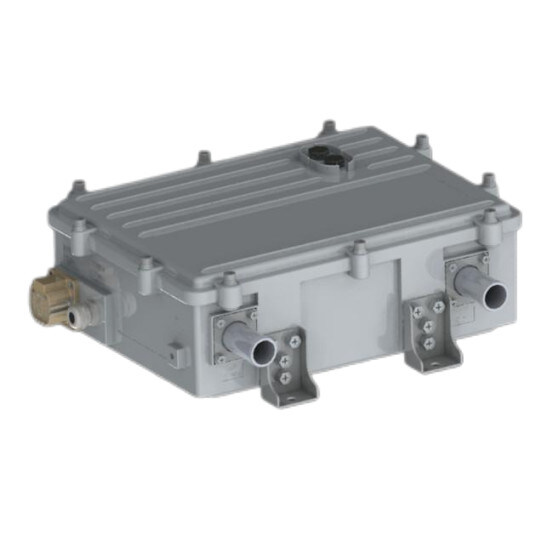

DC 690V High Voltage Ptc Heater System For CATL BTMS 15-35kW 0

The QC01 series is a high-voltage coolant heater specifically designed for CATL, intended for battery heating in heavy-duty trucks. In colder regions, its robust heating capacity of up to 35kW offers ample heat for the vehicle, raising the battery temperature to its optimal point in minimal time, thus prolonging the battery's lifespan. Additionally, we offer customization options for all customers. For instance, our high-voltage heater can be modified to AC or other distinct shapes based on requirements.


Specification:


HVCH QC01 Series
Heat Output     15-35kW
HV Voltage Range     DC 350-900V

LV Voltage

  DC 24V nominal
Efficiency     > 95 %
Controllability Steps     100W
Dimensions     365*313*123mm
Weight     10kg
Temperature Range for Heating     -40 to 90 ℃
Temperature Range for Ambient     -40 to 125 ℃
Communication     CAN or LIN2.1
Dielectric Strength     3500 V (DC)
IP Protection Class     IP 67
EMC     ECE R10 Rev. 5
Insulation Resistance     >500MΩ
Service Life     10 years or 10,000 heating hours



DC 690V High Voltage Ptc Heater System For CATL BTMS 15-35kW 1


Product Features:





Superior Water Resistance: Be it muddy roads, rainy days, or prolonged operation in high temperatures, our high-voltage coolant heater is required to demonstrate exceptional water-resistant capabilities. IP 67 water and dust-proof reports are available upon request.



Stepless Regulation Performance: Regulation is achieved either by modulating the water outlet temperature or by constraining the maximal heat output or power consumption.



Trustworthy Dual Self-Protection System: Incorporates both mechanical and electronic protection measures, which actuates module shutdown in response to conditions like short circuits, overloads, or over-temperature scenarios. Furthermore, we've integrated a high-voltage relay and current fuse within the high-voltage circuit.





DC 690V High Voltage Ptc Heater System For CATL BTMS 15-35kW 2



Application:





Ensuring a secure journey even in the most challenging climatic conditions, vehicles need to be operation-ready from the outset. The ample power ranging from 25 to 35kW meets the heating, defrosting, battery heating, and other requirements of large vehicles. Users can adjust the power based on their needs, managing the power consumption. We also cater to customization, allowing adjustments based on specific requirements like voltage and power.





DC 690V High Voltage Ptc Heater System For CATL BTMS 15-35kW 3



Our Services:





Direct supply to you, eliminating intermediary fees and reducing costs.

Significant discounts for bulk orders, with trial orders also welcomed.

Respond to your inquiries within 24 hours.

Competitive and reasonable pricing.

As manufacturers, we boast robust capabilities.

Endeavoring to fulfill all your needs.


Competitive Advantage:




Safety and Reliability: High Voltage, High Power, High Intelligence, High Reliability

OEM tailored to your designs.

Consistent performance.

Exceptional waterproofing and insulation properties.

Superior resistance to dry-burning.
