HVH High Voltage PTC Heater Module

Certification
China Suzhou EVLINK Electronic Technology Co.,Ltd certification
I'm Online Chat Now

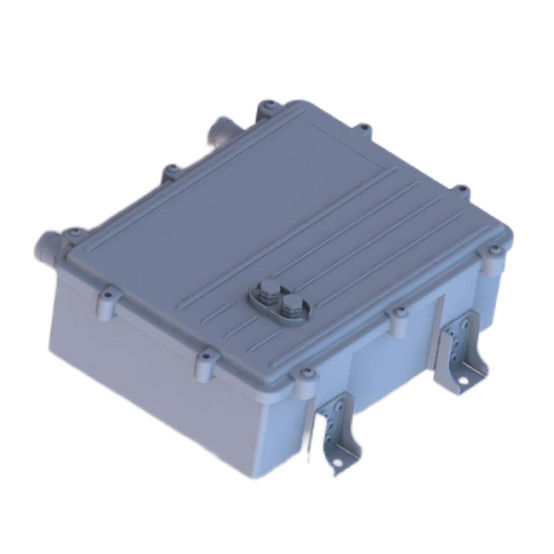

HVH High Voltage PTC Heater Module

HVH High Voltage PTC Heater Module
HVH High Voltage PTC Heater Module HVH High Voltage PTC Heater Module HVH High Voltage PTC Heater Module HVH High Voltage PTC Heater Module

Large Image :  HVH High Voltage PTC Heater Module

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1200-1500 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

HVH High Voltage PTC Heater Module

Description
Heat Output: 15-25KW HV Voltage Range: DC 250-870V
LV Voltage: DC 24V Nominal Efficiency: > 95 %
Controllability Steps: 1% Dimensions: 365*313*123mm
Weight: 9kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Communication: CAN OR LIN
Dielectric Strength: 3500 V (DC) IP Protection Class: IP 67
EMC: ECE R10 Rev. 5 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

High Voltage PTC Heater Module

,

HVH High Voltage PTC Heater

,

HVH PTC Heater

Revolutionizing Vehicle Comfort with HVCH QA01-Liquid heater -Series High-Voltage Heater



  1. The heater is compatible with different power sources, including AC and DC, providing flexibility in power supply options.
  2. It is designed to be environmentally friendly, with low emissions and energy-efficient operation.
  3. The PTC heater is equipped with advanced control features, such as remote monitoring and control capabilities, for enhanced convenience and flexibility.

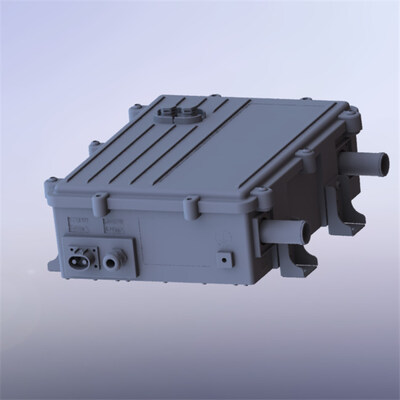

HVH High Voltage PTC Heater Module 0









Product Introduction



As the electric vehicle sector evolves, maintaining an optimal temperature within the vehicle and for the battery becomes crucial. The HVCH QA01-Liquid heater Series stands as a pioneering solution in this sector, offering a versatile heating system equipped with state-of-the-art features that make it an indispensable tool in promoting vehicular comfort and functionality.









Specification:







HVCH QA01 Liquid Heater Series
Heat Output     15-25kW
HV Voltage Range     DC 250-870V

LV Voltage

  DC 24V nominal
Efficiency     > 95 %
Controllability Steps     100W
Dimensions     365*313*123mm
Weight     9kg
Temperature Range for Heating     -40 to 90 ℃
Temperature Range for Ambient     -40 to 125 ℃
Communication     CAN or LIN2.1
Dielectric Strength     3500 V (DC)
IP Protection Class     IP 67
EMC     ECE R10 Rev. 5
Insulation Resistance     >500MΩ
Service Life     10 years or 10,000 heating hours

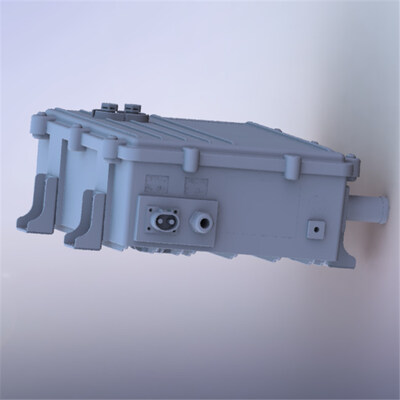

HVH High Voltage PTC Heater Module 1













Product Features:









Ultimate Water Resistance: Designed to withstand the harshest environmental conditions, this high voltage coolant heater offers IP 67 certification for water and dust resistance, promising unfaltering performance even in wet and muddy circumstances.



Variable Performance Regulation: With its advanced technology, it allows seamless regulation of water outlet temperature or the restriction of maximum heat output or power usage. Having been deployed in thousands of vehicles over the past three years, its superior quality is widely recognized and appreciated by customers.



Double Layered Self-Protection System: Incorporated with a dual protection mechanism that includes mechanical and electronic devices, it guarantees safety against potential hazards such as short circuits, overload, or over-temperature situations. The system is further fortified with a high voltage relay and a current fuse in the high-voltage circuit.



Absolute Separation of Water and Electricity: Overcoming the challenges faced by many manufacturers, this series perfectly balances heat transmission efficiency with the insulation requirements of DC 3500 V. This innovative approach enabled the mass production of products with a nominal voltage of 870V in 2021, which have found significant usage in heavy dump trucks.



Self-Regulating PTC Thermistor Heater: The inclusion of PTC technology ensures that the heating elements adjust their power dynamically without surpassing a predetermined maximum temperature, offering a combination of high reliability and energy efficiency without requiring additional switching components.

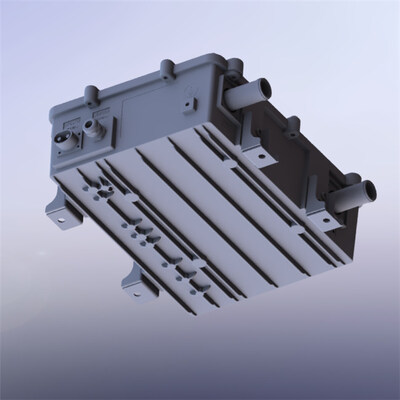

HVH High Voltage PTC Heater Module 2



Application:



In a bid to guarantee safe journeys in challenging climate conditions, vehicles equipped with this system can readily adapt from the get-go. Boasting a robust power output ranging from 15 to 25kW, it adeptly meets the heating, defrosting, and battery heating demands of large vehicles. The customizable features allow adjustments as per customer requirements, including alterations in voltage and power, enhancing user satisfaction and convenience.



HVH High Voltage PTC Heater Module 3



Our Services:



Direct Supply: We can directly cater to your needs, eliminating agent fees and reducing your expenditure.



Bulk Order Discounts: Avail substantial discounts on bulk orders, with the welcoming of trial orders as well.



24-Hour Inquiry Response: Our team is committed to addressing your inquiries within a 24-hour window.



Competitive Pricing: Our pricing structure is designed to be both reasonable and competitive.



Manufacturer Strength: As manufacturers, we bring strong industry standing and capabilities.



Customer-Centric Approach: We remain devoted to fulfilling your demands at every possible level.





Competitive Advantage:



Safety and Reliability: Upholding the highest standards of safety and reliability.



Customized OEM Solutions: Offering OEM solutions that are tailored to your design preferences.



Consistent Performance: Guaranteeing stable and consistent performance under various conditions.



Superior Insulation: Featuring water-proof characteristics coupled with remarkable insulating properties.



Resilience against Dry Burning: Demonstrating excellent resilience against dry burning occurrences.



High-End Specifications: Characterized by high voltage, power, intelligence, and reliability, setting new benchmarks in the industry.
