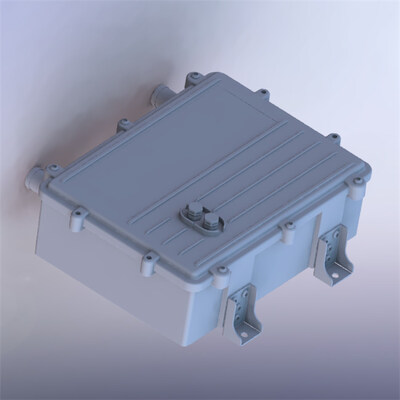

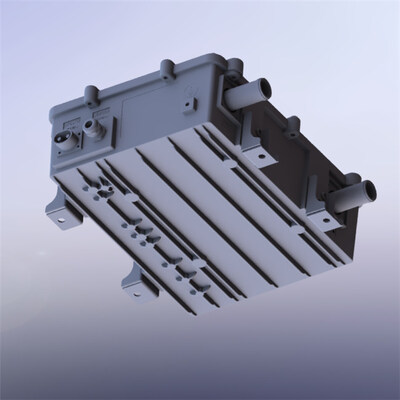

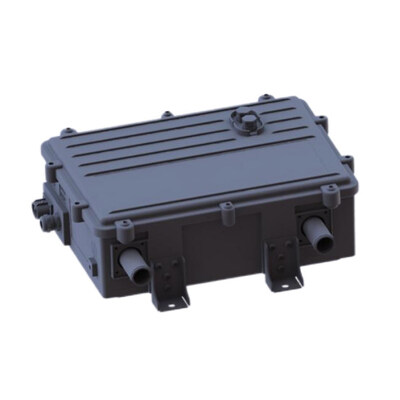

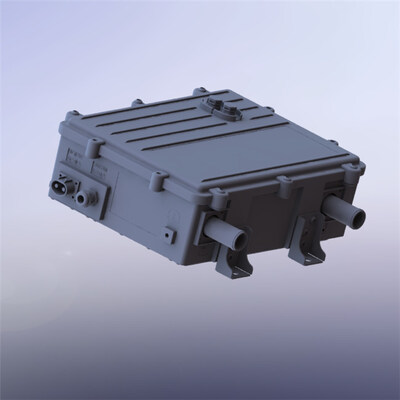

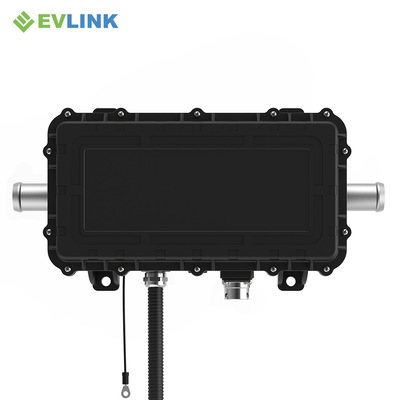

Valeo High Voltage Ptc Heater Green Heating Solution For Large Vehicles

Valeo High Voltage Ptc Heater Green Heating Solution For Large Vehicles
Valeo High Voltage Ptc Heater Green Heating Solution For Large Vehicles Valeo High Voltage Ptc Heater Green Heating Solution For Large Vehicles Valeo High Voltage Ptc Heater Green Heating Solution For Large Vehicles Valeo High Voltage Ptc Heater Green Heating Solution For Large Vehicles

Large Image :  Valeo High Voltage Ptc Heater Green Heating Solution For Large Vehicles

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1200-1500 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

Valeo High Voltage Ptc Heater Green Heating Solution For Large Vehicles

Description
Heat Output: 15-25KW HV Voltage Range: DC 250-870V
LV Voltage: DC 24V Nominal Efficiency: > 95 %
Controllability Steps: 1% Dimensions: 365*313*123mm
Weight: 9kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Communication: CAN OR LIN
Dielectric Strength: 3500 V (DC) IP Protection Class: IP 67
EMC: ECE R10 Rev. 5 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

valeo high voltage ptc heater

,

valeo high voltage heater

,

high voltage heater

HVCH QA01 Liquid heater Series: The Efficient Green Heating Solution for Large Vehicles



  1. It is designed to integrate seamlessly into existing high-voltage systems, minimizing disruptions and downtime.
  2. The heater is engineered for reliable and consistent heating performance, ensuring the smooth operation of high-voltage equipment.

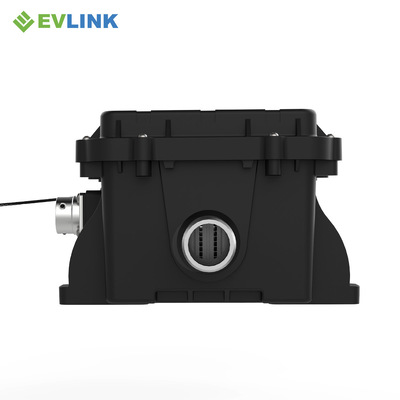

Valeo High Voltage Ptc Heater Green Heating Solution For Large Vehicles 0







Product Introduction



The HVCH QA01 Liquid heater Series is a specialized interior heater developed explicitly for large vehicles, capable of steplessly adjusting performance according to the needs, cementing its place as a trusted heating solution in the contemporary automotive sector.









Specification:







HVCH QA01 Liquid Heater Series
Heat Output     15-25kW
HV Voltage Range     DC 250-870V

LV Voltage

  DC 24V nominal
Efficiency     > 95 %
Controllability Steps     100W
Dimensions     365*313*123mm
Weight     9kg
Temperature Range for Heating     -40 to 90 ℃
Temperature Range for Ambient     -40 to 125 ℃
Communication     CAN or LIN2.1
Dielectric Strength     3500 V (DC)
IP Protection Class     IP 67
EMC     ECE R10 Rev. 5
Insulation Resistance     >500MΩ
Service Life     10 years or 10,000 heating hours

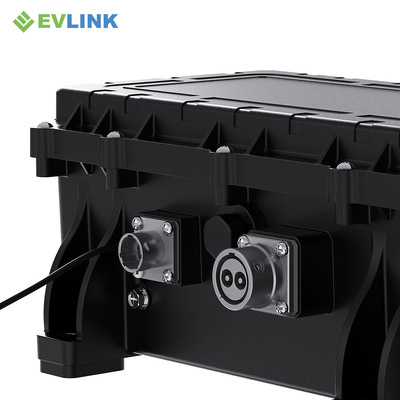

Valeo High Voltage Ptc Heater Green Heating Solution For Large Vehicles 1













Product Features:







 Ø Superior Water Resistance



Navigating through muddy terrains or enduring prolonged periods in wet rainy conditions and high temperatures, the HVCH QA01 series showcases superior water resistance. Its IP67 water and dustproof certifications are a testament to the product's long-term reliability and durability.



Ø Stepless Performance Regulation



This high-voltage coolant heater offers a stepless regulation of performance, whether it's by manipulating the water outlet temperature or constraining the peak heat output or power usage. Validated over three years of practical applications, this product has been integrated into thousands of vehicles, earning accolades from satisfied customers.



 Ø Reliable Dual Self-Protection System



The dual protection system, embracing both mechanical and electronic safeguards, acts proactively to shut down the module in instances of short circuits, overloads, or over-temperature conditions. Moreover, high voltage relays and current fuses have been incorporated in the high-voltage circuit, providing an added layer of safety.



Ø Complete Separation of Water and Electricity



We have skillfully resolved the conflicting demands of heat transfer efficiency and the insulation prerequisites of DC 3500 V, achieving a complete separation of water and electricity. This technological innovation has facilitated the mass production and deployment of our 870V (nominal voltage) products in heavy dump trucks since 2021.

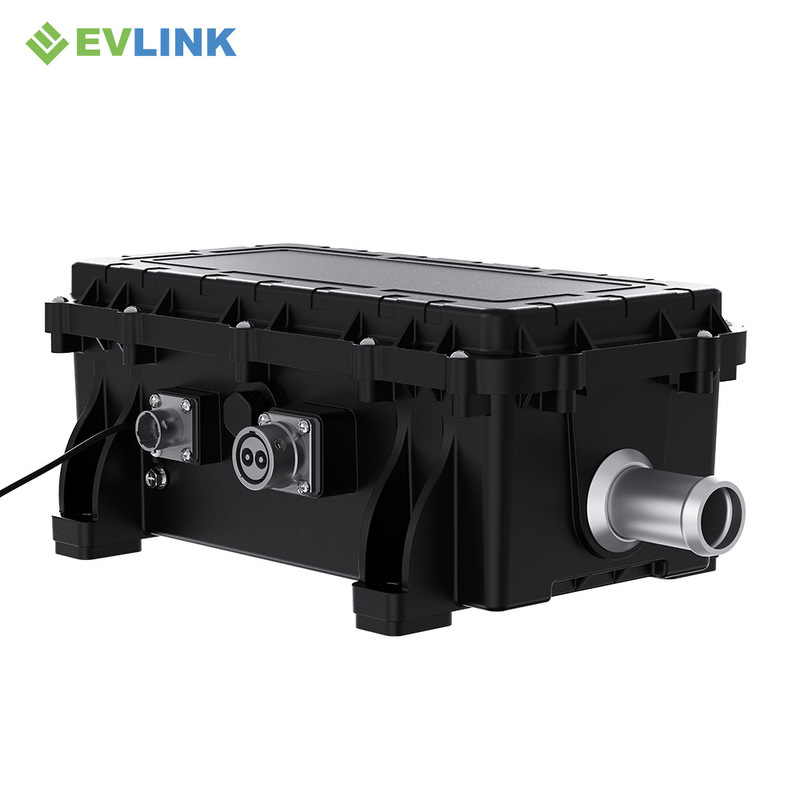

Valeo High Voltage Ptc Heater Green Heating Solution For Large Vehicles 2





 Application Scenarios





To ensure a secure journey even in challenging climate conditions, vehicles need to be ready for operation right from the start. A robust power range of 15 to 25 kW can cater to the heating, defrosting, and battery heating needs of large vehicles. Users can adjust the power according to the demands, controlling the power consumption. We also offer customized services, making adjustments as per customer requirements, like voltage, power, etc.

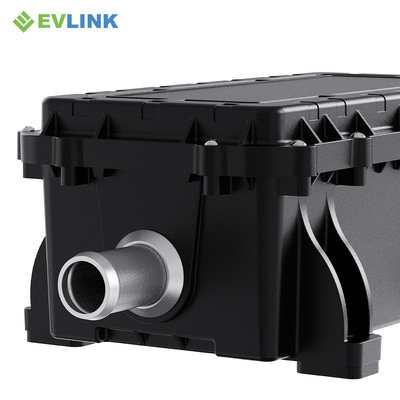

Valeo High Voltage Ptc Heater Green Heating Solution For Large Vehicles 3





Our Service



We can supply you directly, saving the agent fees and reducing your cost;

Big orders come with big discounts, and trial orders are also welcome;

We will respond to your inquiries within 24 hours;

Pricing advantage: reasonable and competitive;

Being a manufacturer, we possess strong strength;

We strive to meet your demands to the fullest extent.



Competitive Advantage



Safety and reliability;

OEM services for your design;

Stable performance;

Waterproof with excellent insulating properties;

Excellent resistance to dry burning;

High Voltage, High Power, High Intelligence, High Reliability.
