15-35kW Ev Car Battery Heater DC 690V High Voltage Heater Automotive

Certification
China Suzhou EVLINK Electronic Technology Co.,Ltd certification
I'm Online Chat Now

15-35kW Ev Car Battery Heater DC 690V High Voltage Heater Automotive

15-35kW Ev Car Battery Heater DC 690V High Voltage Heater Automotive
15-35kW Ev Car Battery Heater DC 690V High Voltage Heater Automotive 15-35kW Ev Car Battery Heater DC 690V High Voltage Heater Automotive 15-35kW Ev Car Battery Heater DC 690V High Voltage Heater Automotive 15-35kW Ev Car Battery Heater DC 690V High Voltage Heater Automotive

Large Image :  15-35kW Ev Car Battery Heater DC 690V High Voltage Heater Automotive

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QC01
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1000-1500 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

15-35kW Ev Car Battery Heater DC 690V High Voltage Heater Automotive

Description
Heat Output: 15-35KW HV Voltage Range: DC 350-900V
LV Voltage: DC 24V Nominal Efficiency: > 95 %
Controllability Steps: 1% Dimensions: 365*313*123mm
Weight: 9kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Communication: CAN OR LIN
Dielectric Strength: 3500 V (DC) IP Protection Class: IP 67
EMC: ECE R10 Rev. 5 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

ev car battery heater

,

car battery heater DC 690V

,

35kW High Voltage heater

QC01-Series (15-35kW)Nominal Voltage DC 690V High Voltage Coolant Heater For CATL BTMS



  1. It offers multiple safety features, including temperature sensors and automatic shut-off mechanisms, to ensure safe heating operation.
  2. The heater is capable of providing heating for the cabin and defrosting the windshield, ensuring clear visibility in cold weather conditions.
  3. It is engineered for thermal efficiency, minimizing heat loss and maximizing energy savings.
  4. The High Voltage Heater Automotive is designed with scalability in mind, allowing for the installation of multiple units to meet higher heating demands.

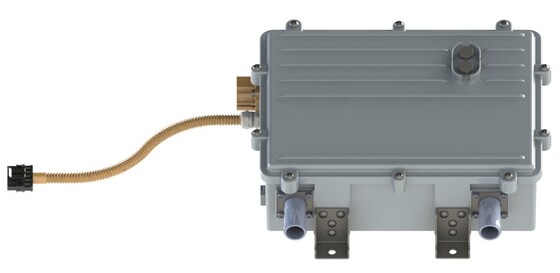

15-35kW Ev Car Battery Heater DC 690V High Voltage Heater Automotive 0

HVCH QC01 Series is a specialized model designed for CATL, for the battery heating used in heavy duty trucks.In cold areas, the strong heating capacity up to 35kW can provide sufficient heat source for the vehicle, and raise the battery temperature to the most appropriate temperature point in the shortest time, thus extending battery's service life. We are also happy to provide customized services for all customers. For example, our ptc high voltage heater could be modified to AC or other different shape.



HVCH QC01-Series could quickly, consistently,powerfully and reliably heat the vehicle interior. The compact device ensures a constantly high heat output of 15kW-35kW and allows for flexible use in a power range of 350 to 900 Volts. HVCH QC01-Series features infinitely variable heat output control by means of an integral control unit. This takes place either by regulating the water outlet temperature or by limiting the maximum heat output or power consumption. Furthermore, it is CAN-capable and transmits key operating data to the vehicle system using an intelligent diagnostic function.





Specification:



HVCH QC01 Series
Heat Output     15-35kW
HV Voltage Range     DC 350-900V

LV Voltage

  DC 24V nominal
Efficiency     > 95 %
Controllability Steps     100W
Dimensions     365*313*123mm
Weight     10kg
Temperature Range for Heating     -40 to 90 ℃
Temperature Range for Ambient     -40 to 125 ℃
Communication     CAN or LIN2.1
Dielectric Strength     3500 V (DC)
IP Protection Class     IP 67
EMC     ECE R10 Rev. 5
Insulation Resistance     >500MΩ
Service Life     10 years or 10,000 heating hours

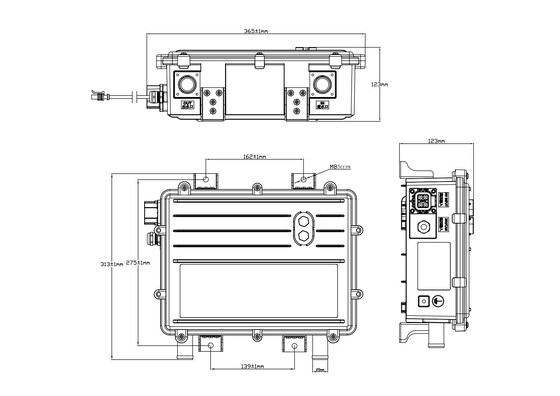

15-35kW Ev Car Battery Heater DC 690V High Voltage Heater Automotive 1



Product Features:



Ø Excellent Water Resistance.

During the actual operation, muddy roads and wet rainy days and long playing in high temperature, all require our high voltage coolant heater excellent waterproof performance.IP 67 Water and dust proof reports can be provided.



Ø Stepless Regulate Performance.

This takes place either by regulating the water outlet temperature or by limiting the maximum heat output or power consumption.Our High Voltage coolant heater has been equipted in thousands of vehicles for three years ,the good quality has been accecpted by the custmers.



Ø Reliable Dual Self-Protection System

Dual protection system includes mechanical protection device and electronic protection, which acts to shut the module down in reaction to a short circuit, overload, or over-temperature condition. In addition, We add the high voltage relay and current fuse in the high voltage circuit.



Ø Completely Separation of Water and Electricity

Water and electricity is completely separated.Different from other manufacturers,we solve perfectly the contradiction between the heat transmission efficiency with the Insulation requirement of DC 3500 V.Benefits from this technical improvement, our 870V (nominal voltage) products have been mass produced and used in heavy dump trucks in 2021.



Ø PTC thermistor heater with self - controlled constant temperature.

PTC water coolant heater come with all advantages of the PTC heating technology. Thanks to the PTC effect, the heating elements dynamically adjust their power without exceeding a maximum temperature. High operational reliability and energy efficiency without any additional switching elements.

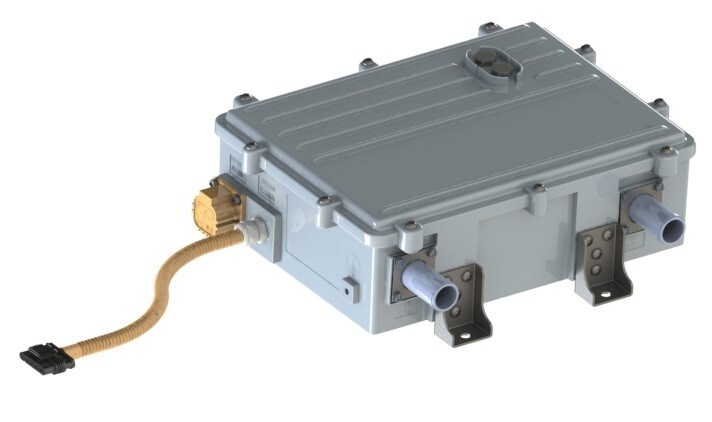

15-35kW Ev Car Battery Heater DC 690V High Voltage Heater Automotive 2





Application:



To guarantee a safe journey even in challenging climate conditions, vehicles must be ready for operation right from the start.

Sufficient power of 25 to 35kw can meet the heating, defrosting, battery heating and other needs of large vehicles. Users can adjust the power according to the demand, control the power consumption. We also provide customized service, which can be adjusted according to customer requirements, such as voltage, power, etc



        15-35kW Ev Car Battery Heater DC 690V High Voltage Heater Automotive 3



Why Choose EVLINK's PTC Heater



Technological Innovation at its Finest

EVLINK has carved a niche in the market as a leader in technological innovation. With products like the QB01-Coolant PTC Heater Series, known for its high efficiency and dual-layer protection, EVLINK is constantly pushing the boundaries to deliver high-powered and efficient solutions that align with modern demands.

Bespoke Solutions Tailored to Your Needs

Understanding that every business has unique needs, EVLINK takes pride in offering customized solutions that are finely tailored to meet specific requirements. This commitment to customization helps businesses to achieve their goals with unprecedented precision and efficiency, fostering a collaborative environment where innovation thrives.
