Home ProductsHigh Voltage Heater Automotive

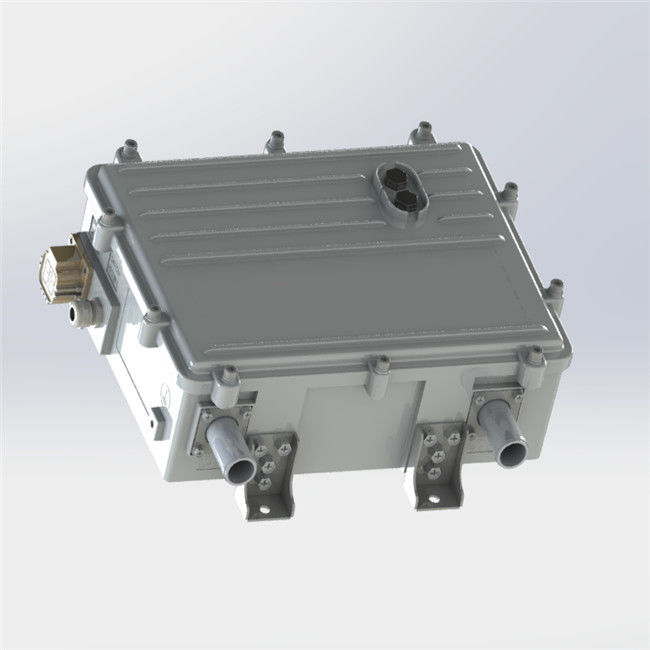

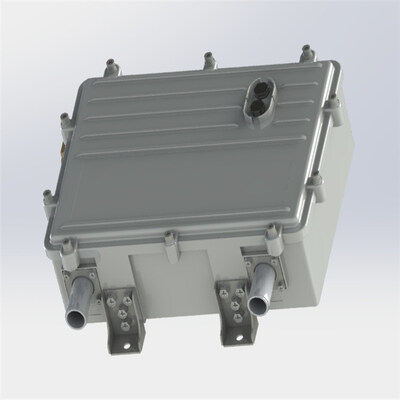

HVH High Voltage Heater Automotive 35KW

China Suzhou EVLINK Electronic Technology Co.,Ltd certification
I'm Online Chat Now

HVH High Voltage Heater Automotive 35KW

HVH High Voltage Heater Automotive 35KW
HVH High Voltage Heater Automotive 35KW HVH High Voltage Heater Automotive 35KW

Large Image :  HVH High Voltage Heater Automotive 35KW

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QC01
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1000-1500 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

HVH High Voltage Heater Automotive 35KW

Heat Output: 15-35KW HV Voltage Range: DC 350-900V
LV Voltage: DC 24V Nominal Efficiency: > 95 %
Controllability Steps: 1% Dimensions: 365*313*123mm
Weight: 9kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Communication: CAN OR LIN
Dielectric Strength: 3500 V (DC) IP Protection Class: IP 67
EMC: ECE R10 Rev. 5 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

HVH High Voltage Heater Automotive


High Voltage Heater Automotive 35KW


Automotive High Voltage Heater

HVCH QC01 Liquid Heater Series: The Epitome of Reliability for Battery-swapping Heavy Trucksadjustable electric heater

  1. The heater operates silently, providing a quiet and enjoyable driving experience for passengers.
  2. It is constructed using high-quality materials, ensuring durability and long-term reliability even in demanding automotive applications.
  3. The High Voltage Heater Automotive is resistant to corrosion and chemical degradation, providing a long service life and reliable performance.

HVH High Voltage Heater Automotive 35KW 0

HVCH QC01 Series
Heat Output    15-35kW
HV Voltage Range    DC 350-900V

LV Voltage

  DC 24V nominal
Efficiency    > 95 %
Controllability Steps    100W
Dimensions    365*313*123mm
Weight    10kg
Temperature Range for Heating    -40 to 90 ℃
Temperature Range for Ambient    -40 to 125 ℃
Communication    CAN or LIN2.1
Dielectric Strength    3500 V (DC)
IP Protection Class    IP 67
EMC    ECE R10 Rev. 5
Insulation Resistance    >500MΩ
Service Life    10 years or 10,000 heating hours

HVH High Voltage Heater Automotive 35KW 1

Product Introduction

In a landscape where the transition to clean and renewable energy sources is not just expected but demanded, the HVCH QC01 Liquid Heater Series emerges as a beacon of innovation, specifically designed for the burgeoning field of battery-swapping heavy trucks. This series marries efficiency with sustainability, effortlessly fitting into modern, eco-conscious fleets with a promise of unparalleled performance and reliability.


Key Features


  • Customizable Heating Power Range: Offering a vast heating power range from 15kW to 35kW, the series caters to the diverse needs of heavy electric trucks, delivering consistent heat transfer even under challenging weather conditions.

  • High Voltage Capability: Operating efficiently within a wide voltage range accommodating up to 870V, it stands as the preferred choice for high-powered electric vehicles.

  • Superior Efficiency and Environmental Attributes: The QC01 series prides itself on its green operation, minimizing energy consumption to the fullest extent, ensuring a reduced carbon footprint without compromising on performance.

  • Flexible Integration: Developed with a futuristic mindset, it offers easy integration with various vehicle systems, making it a versatile choice for battery-swapping heavy trucks.

  • Reliability and Durability: Crafted with quality and resilience at its core, it guarantees a long-lasting solution, capable of withstanding the rigorous demands of heavy truck operations.


HVH High Voltage Heater Automotive 35KW 2


The HVCH QC01 Liquid Heater Series finds its ideal application in battery-swapping heavy trucks, a domain where efficiency and reliability are critical. Its intelligent design allows it to optimize operations, ensuring a warm and comfortable cabin, enhancing the driver’s experience during long-haul travels. Moreover, its capability to maintain optimal battery temperature helps in prolonging battery life and sustaining peak performance.
HVH High Voltage Heater Automotive 35KW 3

Why Choose HVCH QC01 Liquid Heater Series?

  1. Industry-leading Technology: Utilizes cutting-edge technology to provide advanced and reliable solutions.
  2. Optimal Customization: Offers solutions that can be customized according to individual client requirements, adjusting technical parameters based on needs.
  3. World-Class Support and Service: Backed by a responsive customer service team, always ready to assist with any queries or support needs, ensuring customer satisfaction.
  4. Competitive Edge: The QC01 series stands as a testimony to innovation and quality, offering a competitive edge in the growing electric vehicle market.
