Home > products > High Voltage Heater Automotive > Hvch High Voltage Heater Automotive Modern Vehicle Systems

Hvch High Voltage Heater Automotive Modern Vehicle Systems

Product Details

Place of Origin: CHINA

Brand Name: EVPTC

Certification: CE

Model Number: QB01

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: $1500-2000 per set

Packaging Details: carton or wooden case packing

Delivery Time: 15-20days

Payment Terms: T/T

Supply Ability: 100 sets per 2 weeks

Get Best Price
Product Details
High Light:

Hvch High Voltage Heater

,

High Voltage Heater Automotive

,

Hvch Heater Automotive

Heat Output:
20-35KW
HV Voltage Range:
DC 250-1100V
LV Voltage:
DC 24V Nominal
Efficiency:
> 95 %
Controllability Steps:
1%
Dimensions:
365*313*123mm
Weight:
9kg
Temperature Range For Heating:
-40 To 90 ℃
Temperature Range For Ambient:
-40 To 125 ℃
Communication:
CAN OR LIN
Dielectric Strength:
3500 V (DC)
IP Protection Class:
IP 67
EMC:
ECE R10 Rev. 5
Insulation Resistance:
>500MΩ
Service Life:
10 Years Or 10,000 Heating Hours
Heat Output:
20-35KW
HV Voltage Range:
DC 250-1100V
LV Voltage:
DC 24V Nominal
Efficiency:
> 95 %
Controllability Steps:
1%
Dimensions:
365*313*123mm
Weight:
9kg
Temperature Range For Heating:
-40 To 90 ℃
Temperature Range For Ambient:
-40 To 125 ℃
Communication:
CAN OR LIN
Dielectric Strength:
3500 V (DC)
IP Protection Class:
IP 67
EMC:
ECE R10 Rev. 5
Insulation Resistance:
>500MΩ
Service Life:
10 Years Or 10,000 Heating Hours
Product Description

Hvch High Voltage Heater Automotive Modern Vehicle Systems



EVLINK Supreme Water Heater Series: Pioneering Thermal Management for Modern Vehicle Systems





  1. With its advanced heating technology, our High Voltage Heater Automotive delivers rapid and precise heating for a comfortable driving experience.
  2. It is compact and lightweight, allowing for easy integration into electric vehicles without compromising interior space.
  3. The heater features intelligent temperature control, ensuring accurate and consistent heating for enhanced cabin comfort.

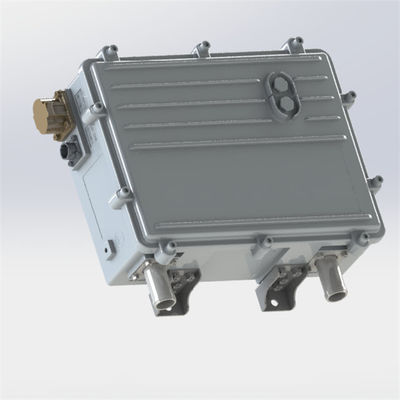

Hvch High Voltage Heater Automotive Modern Vehicle Systems 0




Specification:


HVCH QB01 Series
Heat Output 20-35kW
HV Voltage Range DC 350-1100V
LV Voltage DC 24V nominal
Efficiency > 95 %
Controllability Steps 100W
Dimensions 365*313*123mm
Weight 10kg
Temperature Range for Heating -40 to 90 ℃
Temperature Range for Ambient -40 to 125 ℃
Communication CAN or LIN2.1
Dielectric Strength 3500 V (DC)
IP Protection Class IP 67
EMC ECE R10 Rev. 5
Insulation Resistance 500MΩ
Service Life 10 years or 10,000 heating hours

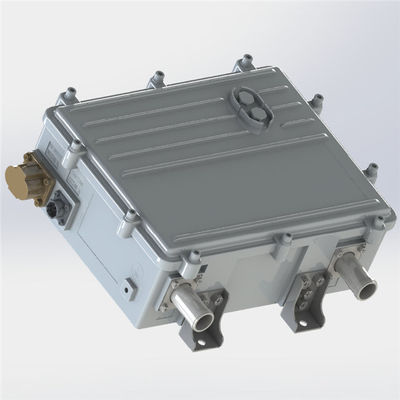

Hvch High Voltage Heater Automotive Modern Vehicle Systems 1




Product Introduction



The EVLINK high-voltage, high-power water heater emerges as a beacon in thermal solutions, catering comprehensively to vehicular heating requirements. It stands as a powerhouse, facilitating cabin comfort, defrosting, and battery pre-heating. Leveraging the vehicle’s water circulation system, it distributes heat uniformly, positioning itself as a pioneering heat management solution for the future. With the knack to reach desired temperatures swiftly, it lessens the cabin heating and battery charge/discharge intervals, boosting the operational efficiency manifold. The heater serves as the cornerstone in the thermal management of electric vehicle batteries, promising longevity and performance.

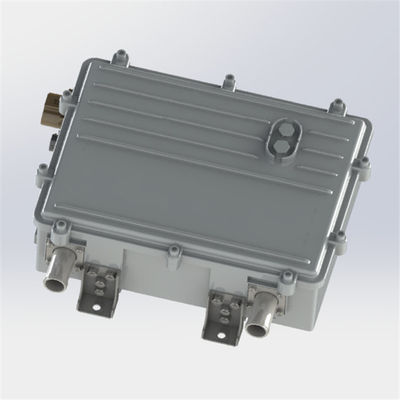

Hvch High Voltage Heater Automotive Modern Vehicle Systems 2



Features



Comprehensive Heating Solution: A unified source that caters to cabin comfort, defrosting, and battery pre-heating, utilizing the vehicle's intrinsic water circulation system to distribute heat efficiently.



Optimal Thermal Management: Engineered to reach desired temperatures within minimal timeframes, it cuts down on heating durations and battery charge/discharge cycles, elevating the operational efficiency.



Primary Resource for Battery Thermal Management: In colder environments, the heater swiftly elevates battery temperatures from sub-zero levels to an optimal 20°C, facilitating efficient battery operations.



Eco-Friendly Operations: Committed to green initiatives, the heater operates emission-free, promising a smaller carbon footprint.

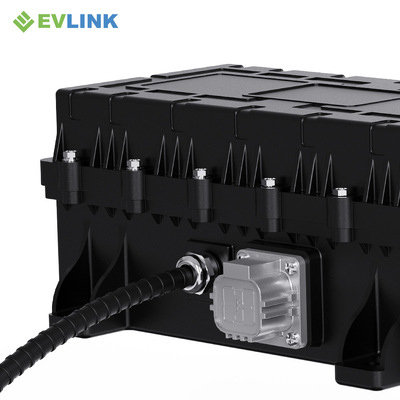

Hvch High Voltage Heater Automotive Modern Vehicle Systems 3




Applications



As the mercury drops in winter, maintaining a comfortable ambiance within electric vehicles and preserving battery efficiency turns paramount. The EVLINK high-voltage, high-power water heater steps in, ensuring a snug cabin environment even in frigid conditions while sustaining the battery at its peak working temperature, thereby amplifying its efficiency and lifespan.





Our Service




Direct Factory Supply: Avail of our premium products directly, eliminating the need for intermediaries.



Competitive Pricing: Experience the marriage of exceptional quality with affordability.



Prompt Response: Our team stands ready to address your queries and concerns swiftly.



Custom Solutions: Tailored strategies and solutions designed to meet your exclusive needs.





Competitive Advantage



Unparalleled Efficiency: Attain rapid heating within the shortest possible time, setting a new benchmark in heating solutions.



Optimized for EVs: Crafted exclusively for electric vehicles, guaranteeing optimal performance and extended lifespan.



Safety-First Approach: Equipped with top-notch safety attributes, promising a hazard-free experience.



Cutting-Edge Technology: Harness the benefits of the latest technological advancements, offering unmatched heating solutions.
