Electric High Voltage Heater Automotive 20-35kW DC 350-1100V LV 100W Controlla

Electric High Voltage Heater Automotive 20-35kW DC 350-1100V LV 100W Controlla
Electric High Voltage Heater Automotive 20-35kW DC 350-1100V LV 100W Controlla Electric High Voltage Heater Automotive 20-35kW DC 350-1100V LV 100W Controlla Electric High Voltage Heater Automotive 20-35kW DC 350-1100V LV 100W Controlla Electric High Voltage Heater Automotive 20-35kW DC 350-1100V LV 100W Controlla

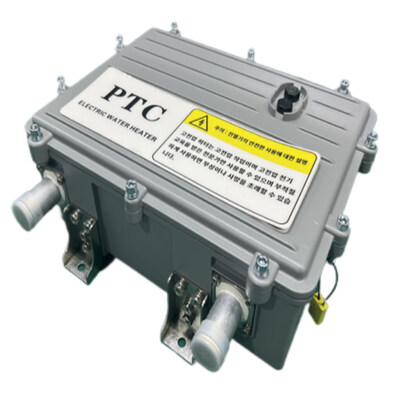

Large Image :  Electric High Voltage Heater Automotive 20-35kW DC 350-1100V LV 100W Controlla

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QB01
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1500-2000 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

Electric High Voltage Heater Automotive 20-35kW DC 350-1100V LV 100W Controlla

Description
Heat Output: 20-35KW HV Voltage Range: DC 250-1100V
LV Voltage: DC 24V Nominal Efficiency: > 95 %
Controllability Steps: 1% Dimensions: 365*313*123mm
Weight: 9kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Communication: CAN OR LIN
Dielectric Strength: 3500 V (DC) IP Protection Class: IP 67
EMC: ECE R10 Rev. 5 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

high voltage heater automotive

,

high voltage electric heaters

,

High Voltage Heater 20-35kW


 HVCH QB01 Series, 20-35kW Heat Output, DC 350-1100V HV Voltage Range, DC 24V LV Voltage, >95% Efficiency, 100W Controlla

  1. It offers efficient heat transfer and distribution, ensuring quick and uniform heating of the vehicle cabin.
  2. The heater is compatible with various high-voltage automotive systems, including electric and hybrid vehicles.
  3. It is designed for easy installation and integration into automotive heating systems, simplifying the manufacturing process.
  4. The High Voltage Heater Automotive is engineered for fast heat-up time, providing instant warmth for the cabin during cold weather conditions.


Specification:


HVCH QB01 Series
Heat Output 20-35kW
HV Voltage Range DC 350-1100V
LV Voltage DC 24V nominal
Efficiency > 95 %
Controllability Steps 100W
Dimensions 365*313*123mm
Weight 10kg
Temperature Range for Heating -40 to 90 ℃
Temperature Range for Ambient -40 to 125 ℃
Communication CAN or LIN2.1
Dielectric Strength 3500 V (DC)
IP Protection Class IP 67
EMC ECE R10 Rev. 5
Insulation Resistance 500MΩ
Service Life 10 years or 10,000 heating hours







Electric High Voltage Heater Automotive 20-35kW DC 350-1100V LV 100W Controlla 0





Introduction



In the paradigm shift towards electric mobility, the QB01-Series stands at the helm, offering premium heating solutions for the contemporary electric buses and commercial vehicles. Signifying the zenith of "High-Voltage Futurism", this heater series brings forth swift, even, and reliable heating, merging innovation with unparalleled efficiency.



Electric High Voltage Heater Automotive 20-35kW DC 350-1100V LV 100W Controlla 1



Key Features



Dynamic Heat Regulation: The QB01-Series comes equipped with an intuitive control unit, allowing for seamless alterations in heat output. This can be facilitated through fine-tuning the water outlet temperature or by setting restrictions on the maximum heat output and power utilization.



Intelligent Communication Hub: Beyond its heating capacities, the QB01-Series embraces CAN compatibility, transforming into a nexus for critical operational data transfer via its advanced diagnostic functionalities.



Consistent Power Output: A standout attribute of the QB01-Series is its steadfast 30kW heat output, adeptly accommodating electric power ranges from 600V to 1100V.



Wide Spectrum of Applications: Designed to be versatile, it integrates effortlessly with a variety of commercial vehicle systems, ensuring compatibility and functional excellence.



Technical Specifications



Adaptable Heating Power: Offering a generous 35 kW heating potential, it can be adjusted to meet diverse operational requirements, promising not only warmth but adaptability and scalability.



Expansive Voltage Capacity: Seamlessly delivers full heating prowess within a voltage range of 450 V DC to 875 V DC, with the capability to extend up to 1150 V DC without a dip in efficiency.



Effortless Integration: Ensures smooth integration with CAN communication channels, marking a significant leap in operational coordination and data management.



Enhanced Heat Transmission: Developed with the latest technology, it guarantees optimal heat transmission, making sure that every corner of the vehicle experiences uniform warmth.



Electric High Voltage Heater Automotive 20-35kW DC 350-1100V LV 100W Controlla 2



Eco-friendly Attributes



Zero-Emission Operation: Firmly committed to fostering a greener future, the QB01-Series ensures operation devoid of any emissions, marking a milestone in eco-friendly heating solutions.



Whisper-Quiet Functionality: Operates with a minimal noise footprint, doing away with the inconvenience of disruptive exhaust noises and vibrations.



Energy Efficient Design: Developed with energy conservation at its core, it utilizes power judiciously, promoting sustainable operation without compromising on performance.



Low Carbon Footprint: Through its efficient design, the QB01-Series aids in reducing the overall carbon footprint, thus contributing positively towards environmental preservation.





Electric High Voltage Heater Automotive 20-35kW DC 350-1100V LV 100W Controlla 3



Safety and Reliability



Multi-Faceted Safety Mechanism: At its core lies a multi-layered safety framework that guarantees steadfast heating delivery without relinquishing safety standards.



Robust Build Quality: The QB01-Series boasts a robust build quality, ensuring long-term reliability and resilience against wear and tear.



Dual Self-Protection System: Equipped with a dual protection system that incorporates both mechanical and electronic safeguards, ensuring uninterrupted operation in various conditions.



Superior Insulation: Features exceptional insulation properties, safeguarding against potential electrical hazards and ensuring safe operation at all times.



Why Opt for QB01-Series?



  • Peerless Power and Consistency: Beyond just providing heat, it does so with an unmatched consistency, promising top-notch performance with every use.

  •

  • Unparalleled Efficiency: The QB01-Series takes pride in its capacity to deliver heat with optimal efficiency, making it a preferred choice in the modern electric bus sector.

  •

  • Customizable Solutions: Offers the flexibility of customizable solutions, allowing for adjustments in voltage and power according to customer-specific requirements.

  •

  • Dedicated Customer Support: Backed by a team of dedicated customer support professionals, ready to assist you with any queries or support you may need, ensuring a seamless experience.
