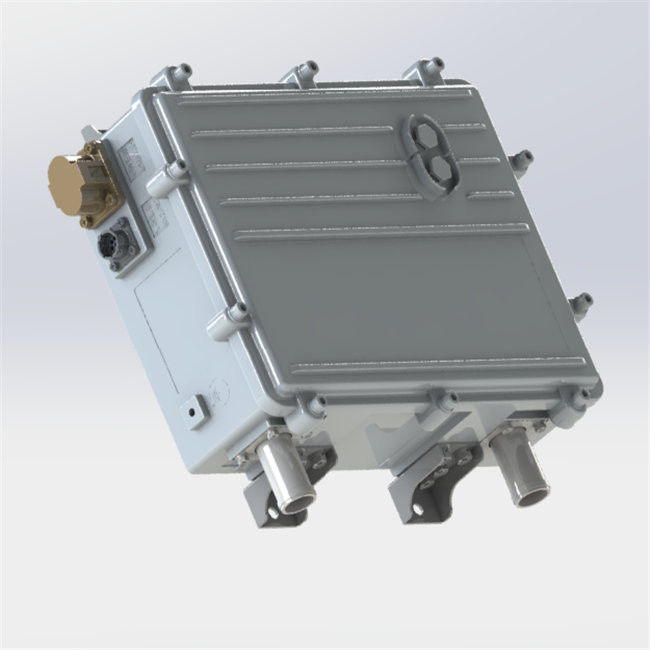

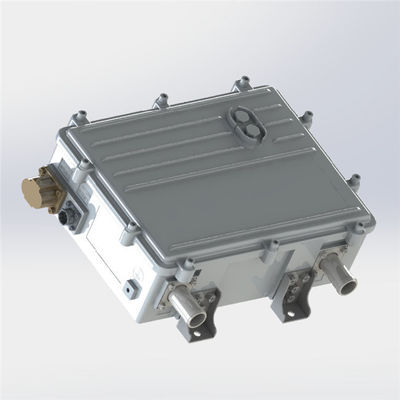

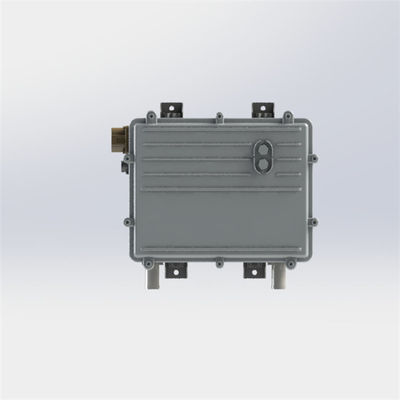

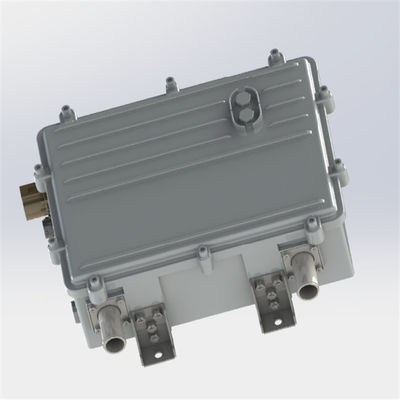

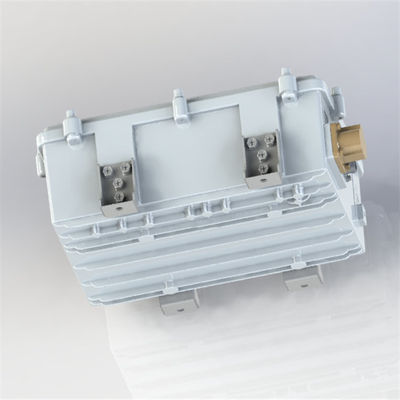

Automotive High Voltage Coolant Heater Electric

Certification
China Suzhou EVLINK Electronic Technology Co.,Ltd certification
I'm Online Chat Now

Automotive High Voltage Coolant Heater Electric

Automotive High Voltage Coolant Heater Electric
Automotive High Voltage Coolant Heater Electric Automotive High Voltage Coolant Heater Electric Automotive High Voltage Coolant Heater Electric Automotive High Voltage Coolant Heater Electric Automotive High Voltage Coolant Heater Electric

Large Image :  Automotive High Voltage Coolant Heater Electric

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QB01
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1500-2000 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

Automotive High Voltage Coolant Heater Electric

Description
Heat Output: 20-35KW HV Voltage Range: DC 250-1100V
LV Voltage: DC 24V Nominal Efficiency: > 95 %
Controllability Steps: 1% Dimensions: 365*313*123mm
Weight: 9kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Communication: CAN OR LIN
Dielectric Strength: 3500 V (DC) IP Protection Class: IP 67
EMC: ECE R10 Rev. 5 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

automotive high voltage heater

,

automotive high voltage Coolant heater

,

high voltage electric heater

 The Evolution of Heating Solutions: Unveiling the EVLINK QB01 Series - Pioneering Performance and Innovation

Specification:


HVCH QB01 Series
Heat Output 20-35kW
HV Voltage Range DC 350-1100V
LV Voltage DC 24V nominal
Efficiency > 95 %
Controllability Steps 100W
Dimensions 365*313*123mm
Weight 10kg
Temperature Range for Heating -40 to 90 ℃
Temperature Range for Ambient -40 to 125 ℃
Communication CAN or LIN2.1
Dielectric Strength 3500 V (DC)
IP Protection Class IP 67
EMC ECE R10 Rev. 5
Insulation Resistance 500MΩ
Service Life 10 years or 10,000 heating hours







Automotive High Voltage Coolant Heater Electric 0







Product Introduction





EVLINK's QB01 series heater has achieved mass production at 800V, offering an efficient and dependable thermal solution for new energy vehicles and large engineering machinery. This heater exhibits outstanding performance in large construction machinery and mining trucks. Whether heating the passenger cabin or preheating the battery, it retains excellent efficiency in various extreme environments.







Automotive High Voltage Coolant Heater Electric 1







Product Features





Powerful Heat Output: Provides the necessary warmth for the passenger cabin and battery, even in cold environments.



Wide Voltage Range: Accommodates a variety of voltage requirements, from 350V to 1100V.



Intelligent Control: Stepless adjustment through an integrated control unit ensures constant heat output.



Eco-friendly: 100% emission-free, virtually silent, and no harmful exhaust fumes.



Multi-level Safety Design: Incorporates a comprehensive safety concept to guarantee consistent and efficient heat output.









Automotive High Voltage Coolant Heater Electric 2





Application





EVLINK's QB01 series heater is a preferred choice in the market, extensively utilized in various types of new energy vehicles and large machinery, including equipment operating in extremely cold environments. Its potent heating capacity and efficient performance are some of its standout features.



Versatility: Capable of meeting the diverse needs of different projects and vehicles, offering varied application solutions.



Robust Heating Capacity: Provides stable and efficient heating services under any environmental conditions.



Exceptional Cold Resistance: Specifically designed for extreme cold environments, ensuring top-notch performance even in frigid conditions.



Market Preference: Due to its  excellent functionalities and performance, it has emerged as a favored brand in the market.







Automotive High Voltage Coolant Heater Electric 3





Our Services





Direct Supply: We supply products directly, bypassing intermediaries and reducing costs.



Customized Services: We offer tailored solutions based on your specific needs.



Technical Support: Our technical team is always at your disposal, offering support and solutions.



Full-Service Customer Support: From product design to after-sales service, we pledge to provide comprehensive support to our customers.





Competitive Advantage





Superior Quality: Continuous R&D and innovation ensure the high quality and reliability of our products.



Market Leadership: As an industry leader, EVLINK continually stays at the forefront of technological innovation.



Comprehensive Services: We are dedicated to offering all-around support to our customers, from product design to after-sales service.



Extensive Collaboration Network: We have a broad collaboration network, capable of offering more resources and opportunities to our customers.
