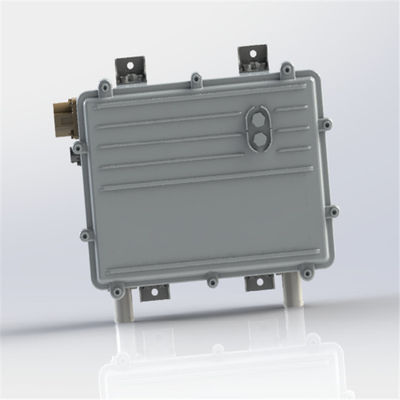

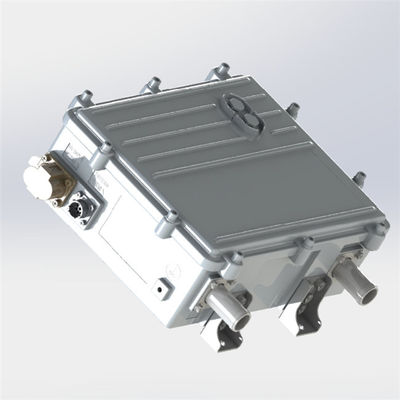

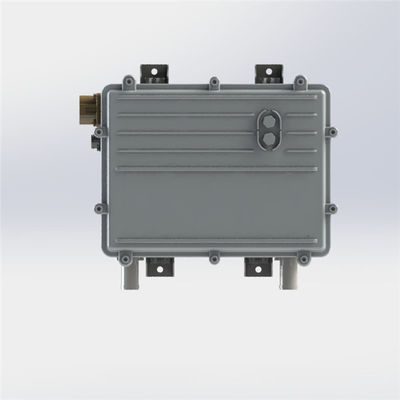

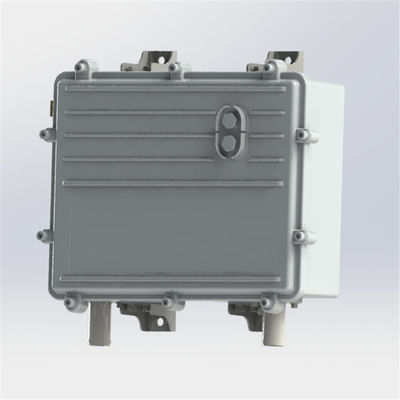

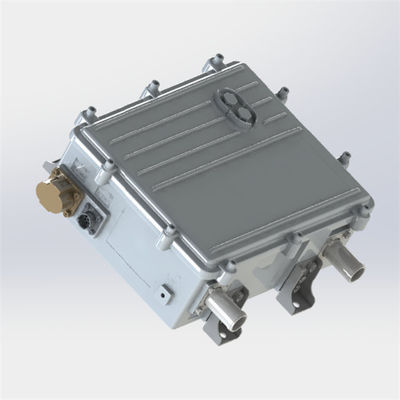

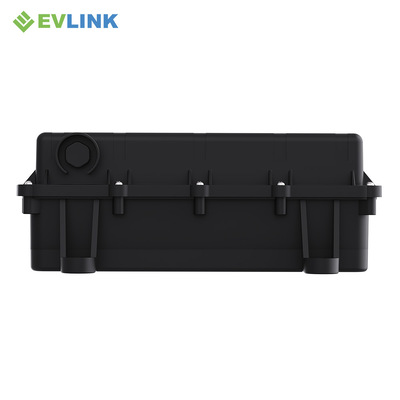

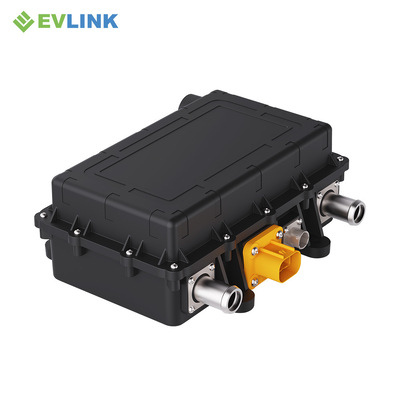

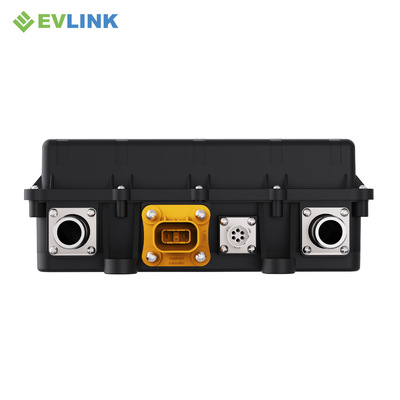

Hvh Hvc High Voltage Coolant Heater Ptc Cabin Heater

Hvh Hvc High Voltage Coolant Heater Ptc Cabin Heater
Hvh Hvc High Voltage Coolant Heater Ptc Cabin Heater Hvh Hvc High Voltage Coolant Heater Ptc Cabin Heater Hvh Hvc High Voltage Coolant Heater Ptc Cabin Heater Hvh Hvc High Voltage Coolant Heater Ptc Cabin Heater Hvh Hvc High Voltage Coolant Heater Ptc Cabin Heater Hvh Hvc High Voltage Coolant Heater Ptc Cabin Heater

Large Image :  Hvh Hvc High Voltage Coolant Heater Ptc Cabin Heater

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QB01
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1500-2000 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

Hvh Hvc High Voltage Coolant Heater Ptc Cabin Heater

Description
Heat Output: 20-35KW HV Voltage Range: DC 250-1100V
LV Voltage: DC 24V Nominal Efficiency: > 95 %
Controllability Steps: 1% Dimensions: 365*313*123mm
Weight: 9kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Communication: CAN OR LIN
Dielectric Strength: 3500 V (DC) IP Protection Class: IP 67
EMC: ECE R10 Rev. 5 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

hvc high voltage coolant heater

,

hvh heater

,

ptc cabin heater




 Empowering the Green Transition: The EVLINK QB01 Series - The Pinnacle of Thermal Efficiency



  1. The heater is equipped with intelligent sensors that monitor the coolant temperature and adjust the heating output accordingly.
  2. Our High Voltage Coolant Heater operates silently, ensuring a quiet and comfortable driving experience.
  3. It has a high level of energy efficiency, helping to optimize the overall energy consumption of the vehicle.
  4. The heater is designed to be highly reliable, with built-in safety features to protect against overheating and system malfunctions.
  5.


Specification:

HVCH QB01 Series
Heat Output 20-35kW
HV Voltage Range DC 350-1100V
LV Voltage DC 24V nominal
Efficiency > 95 %
Controllability Steps 100W
Dimensions 365*313*123mm
Weight 10kg
Temperature Range for Heating -40 to 90 ℃
Temperature Range for Ambient -40 to 125 ℃
Communication CAN or LIN2.1
Dielectric Strength 3500 V (DC)
IP Protection Class IP 67
EMC ECE R10 Rev. 5
Insulation Resistance 500MΩ
Service Life 10 years or 10,000 heating hours

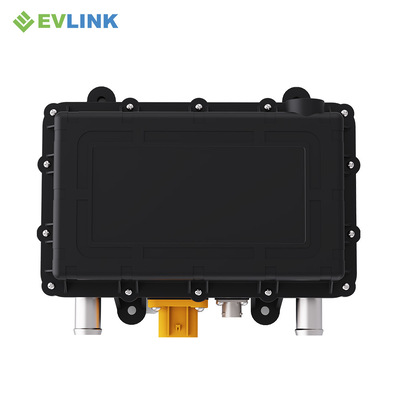

Hvh Hvc High Voltage Coolant Heater Ptc Cabin Heater 0






Introduction



As we steer towards a more sustainable future, the EVLINK QB01 Series stands as a beacon of innovation, revolutionizing thermal solutions for new energy vehicles and substantial machinery. With a track record of exceptional performance in large construction projects and mining operations, the QB01 Series stands ready to redefine industry standards.

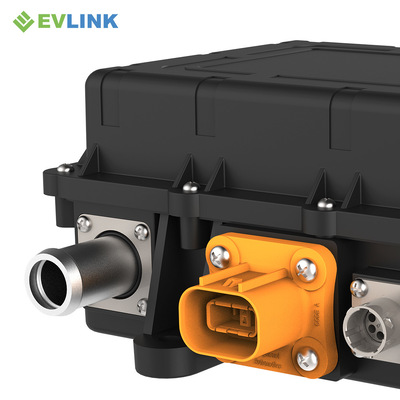

Hvh Hvc High Voltage Coolant Heater Ptc Cabin Heater 1





Product Features





Robust Heating Capacity: Crafted to deliver potent heating for both passenger cabins and batteries, the QB01 series excels even in the face of harsh weather conditions.



Flexible Voltage Compatibility: Adapting effortlessly to diverse voltage requirements ranging from 350V to 1100V, this series epitomizes versatility and technological advancement.



Smart Control Dynamics: Equipped with an integrated control unit, the QB01 series ensures seamless and stepless adjustments, promising uniform and adaptable heat output.



Green Operation Philosophy: Pioneering a cleaner future with zero emissions, the QB01 series guarantees quiet operations devoid of any harmful exhaust emissions.



Multifaceted Safety Framework: Designed with a keen eye on safety, the series incorporates a comprehensive safety protocol, ensuring reliable and efficient heat distribution without compromising on security measures.





Hvh Hvc High Voltage Coolant Heater Ptc Cabin Heater 2





Application





The EVLINK QB01 Series has carved a niche in the market, becoming a preferred choice for a spectrum of new energy vehicles and heavy-duty machinery. Notably excelling in cold environments, its formidable heating prowess and efficiency make it a leader in the industry.







Hvh Hvc High Voltage Coolant Heater Ptc Cabin Heater 3



Our Services





Direct Sales Channel: By offering products directly to the customers, we ensure a cost-effective and genuine procurement experience.



Bespoke Solutions: Our dedication to serving your unique needs translates into customized solutions, meticulously crafted to align with your specific demands.



Expert Technical Assistance: Our proficient technical team stands ready to provide unparalleled support and solutions, aiding in smooth operations.



Responsive Customer Service: At EVLINK, we prioritize customer satisfaction, offering responsive and round-the-clock customer service to enhance your experience with us.



Competitive Advantage





Exemplary Quality Assurance: Through relentless innovation and R&D, we offer products that embody the pinnacle of quality and reliability.



Leadership in Innovation: As a vanguard in the industry, EVLINK continually pushes the boundaries of technological advancements, leading the charge in market innovation.



360-Degree Support Network: Our commitment to our clientele goes beyond the sale, providing an encompassing support network ranging from product conceptualization to after-sales service.



Customization Collaboration: We champion collaborative efforts with our clients, offering opportunities for customization that are mutually beneficial and align with customer preferences and specifications.
