24v Vehicle Coolant Heater Ptc Heating Solutions

24v Vehicle Coolant Heater Ptc Heating Solutions
24v Vehicle Coolant Heater Ptc Heating Solutions 24v Vehicle Coolant Heater Ptc Heating Solutions 24v Vehicle Coolant Heater Ptc Heating Solutions 24v Vehicle Coolant Heater Ptc Heating Solutions

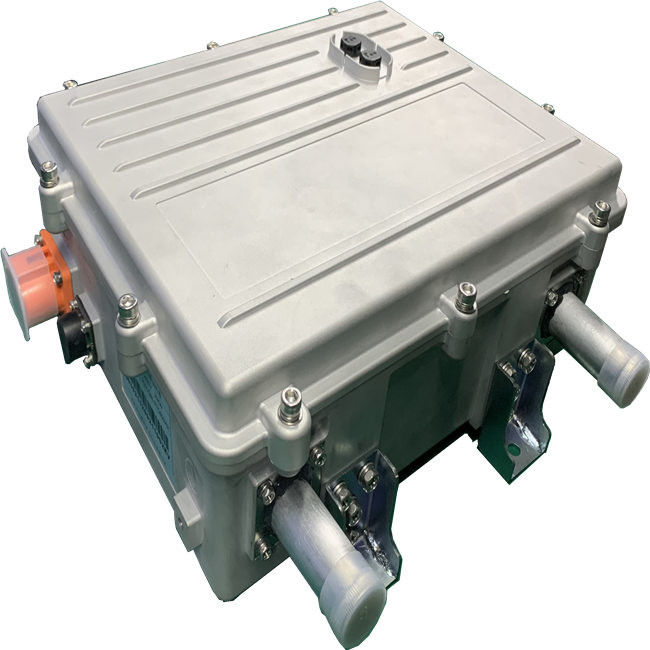

Large Image :  24v Vehicle Coolant Heater Ptc Heating Solutions

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QB01
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1500-2000 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

24v Vehicle Coolant Heater Ptc Heating Solutions

Heat Output: 20-35KW HV Voltage Range: DC 250-1100V
LV Voltage: DC 24V Nominal Efficiency: > 95 %
Controllability Steps: 1% Dimensions: 365*313*123mm
Weight: 9kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Communication: CAN OR LIN
Dielectric Strength: 3500 V (DC) IP Protection Class: IP 67
EMC: ECE R10 Rev. 5 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

24v coolant heater


coolant heater ptc


24v Vehicle Coolant Heater

HVCH QB01 Series: Elevating Efficiency and Safety in Vehicle Heating Solutions


  1. It features a high level of automation, with intelligent controls that optimize heating performance based on external conditions.
  2. The heater is designed for easy maintenance, with accessible components and simple service procedures.
  3. It is engineered to minimize energy losses, ensuring efficient heat transfer from the coolant to the vehicle's interior.

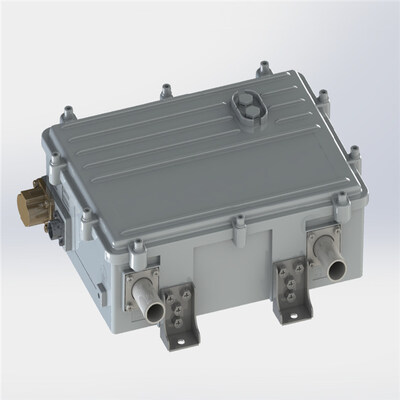

24v Vehicle Coolant Heater Ptc Heating Solutions 0



In a world where technology meets innovation, the HVCH QB01 Series emerges as a frontrunner, setting a benchmark in the industry. This series, specifically designed for applications requiring DC 870V or 35KW power, heralds a new era of efficiency and safety. With advancements in voltage capacity and over-current ability, it's a remarkable upgrade compared to the QA Series, bringing considerable improvements in several components such as relays, fuse, IGBT, and connectors.






HVCH QB01 Series
Heat Output    20-35kW
HV Voltage Range     DC 350-1100V

LV Voltage

  DC 24V nominal
Efficiency     > 95 %
Controllability Steps     100W
Dimensions     365*313*123mm
Weight     10kg
Temperature Range for Heating     -40 to 90 ℃
Temperature Range for Ambient     -40 to 125 ℃
Communication     CAN or LIN2.1
Dielectric Strength     3500 V (DC)
IP Protection Class     IP 67
EMC     ECE R10 Rev. 5
Insulation Resistance     >500MΩ
Service Life     10 years or 10,000 heating hours




Product Features:


Ø Excellent Water Resistance

In the relentless pursuit of excellence, the HVCH QB01 Series stands out with its exceptional water resistance capabilities. Whether navigating muddy roads or enduring wet rainy days and extended periods of high temperature, this heater promises impeccable waterproof performance. We take pride in its IP67 water and dust proof certification, a testament to its robust construction that can withstand the harshest environments.

Ø Stepless Regulate Performance

Equipped with an innovative stepless regulate performance feature, it offers superior control over water outlet temperature or power consumption. This dynamic adaptability has earned it the trust of numerous customers, with successful integration into thousands of vehicles over the past three years.

Ø Reliable Dual Self-Protection System

Safety is our priority. The dual protection system, comprising mechanical and electronic protective measures, ensures seamless operation even in the face of short circuits, overloads or over-temperature conditions. This is further enhanced by the inclusion of high voltage relay and current fuse in the high voltage circuit, adding another layer of safety.

Ø Complete Separation of Water and Electricity

Taking innovation a step further, we have successfully eliminated the contradiction between heat transmission efficiency and the insulation requirement of DC 3500 V. This has facilitated the mass production of our 870V (nominal voltage) products, which have been prominently featured in heavy dump trucks since 2021.

Ø PTC Thermistor Heater with Self-Controlled Constant Temperature

The integration of PTC thermistor heating technology is another feather in our cap. This feature ensures dynamic power adjustment without exceeding a certain temperature threshold, promoting high operational reliability and energy efficiency without the need for additional switching elements.

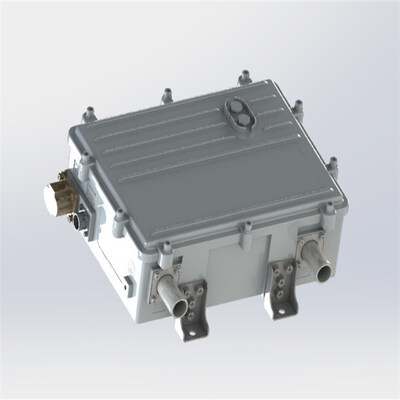

24v Vehicle Coolant Heater Ptc Heating Solutions 1






The HVCH QB01 Series is your trusted companion for a safe and comfortable journey, even in the most challenging climates. Boasting a sufficient power range of 25 to 35kw, it effortlessly meets the heating, defrosting, and battery heating needs of large vehicles. Furthermore, users have the liberty to adjust the power as per their requirements, effectively controlling power consumption. Tailoring to diverse needs, we offer customization options including adjustments in voltage and power, ensuring a solution that is just right for you.

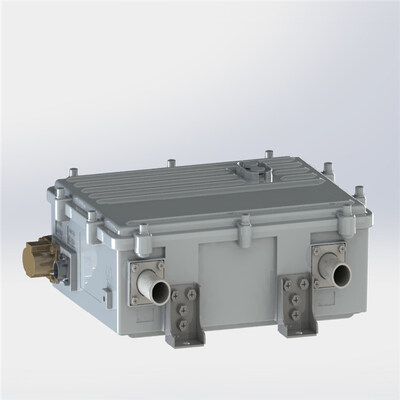

24v Vehicle Coolant Heater Ptc Heating Solutions 2

Our Service

At EVLINK, we believe in direct and transparent transactions. Our services include:

  1. Direct supplies, saving on agent fees and reducing costs.

  2. Attractive discounts on bulk orders, while also welcoming trial orders.

  3. A dedicated team to address your enquiries within 24 hours.

  4. Competitive pricing with an edge in the market.

  5. Backed by strong manufacturing capabilities.

  6. A commitment to meet your demands with utmost dedication.


Competitive Advantage

Choosing the HVCH QB01 Series comes with numerous benefits, including:

  1. Unmatched safety and reliability.

  2. Customizable OEM designs.

  3. Consistently stable performance.

  4. Waterproof construction with excellent insulating properties.

  5. Superior dry burning resistance.

  6. A synthesis of high voltage, high power, high intelligence, and high reliability.
