12V High Voltage Coolant Heater For Ev With Current Fuse

Product Details

Place of Origin: CHINA

Brand Name: EVPTC

Certification: CE

Model Number: AS01

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: $1500-2000 per set

Packaging Details: carton or wooden case packing

Delivery Time: 15-20days

Payment Terms: T/T

Supply Ability: 100 sets per 2 weeks

Get Best Price
Product Details
Highlight:

12V High Voltage coolant heater

,

High Voltage coolant heater for ev

,

12V coolant heater

Service Life:
10 Years Or 10,000 Heating Hours
Heat Output:
8-18kW
HV Voltage Range:
DC 350-870V
LV Voltage:
DC 24V Or 12V Nominal
Efficiency:
> 95 %
Controllability Steps:
1%
Dimensions:
340*138*125mm
Weight:
6kg
Temperature Range For Heating:
-40 To 90 ℃
Temperature Range For Ambient:
-40 To 125 ℃
Communication:
CAN OR LIN
Dielectric Strength:
3500 V (DC)
IP Protection Class:
IP 67
EMC:
ECE R10 Rev. 5
Insulation Resistance:
>500MΩ
Service Life:
10 Years Or 10,000 Heating Hours
Heat Output:
8-18kW
HV Voltage Range:
DC 350-870V
LV Voltage:
DC 24V Or 12V Nominal
Efficiency:
> 95 %
Controllability Steps:
1%
Dimensions:
340*138*125mm
Weight:
6kg
Temperature Range For Heating:
-40 To 90 ℃
Temperature Range For Ambient:
-40 To 125 ℃
Communication:
CAN OR LIN
Dielectric Strength:
3500 V (DC)
IP Protection Class:
IP 67
EMC:
ECE R10 Rev. 5
Insulation Resistance:
>500MΩ
Product Description

AS01-Series (8-18kW)Nominal Voltage DC690V High Voltage Coolant Heater With Current Fuse

  1. The heater is compact and lightweight, allowing for easy integration into the vehicle's existing cooling system.
  2. With its high heat output, our High Voltage Coolant Heater rapidly raises the temperature of the coolant, providing quick and reliable heating.
  3. It features advanced temperature control technology, allowing precise regulation of the coolant temperature for maximum comfort and energy efficiency.

12V High Voltage Coolant Heater For Ev With Current Fuse 0

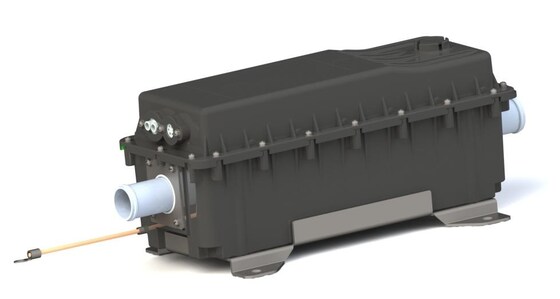

HVCH AS01 Series  is a slender but powerful electric water heater, whose maximum power being up to 18KW. Initially, it was designed for use in battery thermal management units, and later for interior heating in buses and trucks. Its installation depends on the four pcs of M6 nutscrets at the bottom. We can also design differents of metal mounting brackets for customers.



HVCH AS01-Series could quickly, consistently,powerfully and reliably heat the vehicle or battery interior. The compact device ensures a constantly high heat output of 8kW-18kW and allows for flexible use in a power range of 350 to 870 Volts. HVCH AS01-Series features infinitely variable heat output control by means of an integral control unit. This takes place either by regulating the water outlet temperature or by limiting the maximum heat output or power consumption. Furthermore, it is CAN-capable and transmits key operating data to the vehicle system using an intelligent diagnostic function.





Specification:



HVCH AS01 Series
Heat Output     8-18kW
HV Voltage Range     DC 350-870V

LV Voltage

  DC 24V or 12V nominal
Efficiency     > 95 %
Controllability Steps     100W

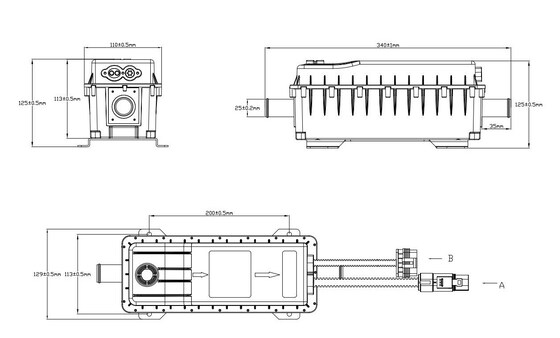

Dimensions     340*138*125mm
Weight     6kg
Temperature Range for Heating     -40 to 90 ℃
Temperature Range for Ambient     -40 to 125 ℃
Communication     CAN or LIN2.1
Dielectric Strength     3500 V (DC)
IP Protection Class     IP 67
EMC     ECE R10 Rev. 5
Insulation Resistance     >500MΩ
Service Life     10 years or 10,000 heating hours



12V High Voltage Coolant Heater For Ev With Current Fuse 1



Product Features:



Ø Excellent Water Resistance.

During the actual operation, muddy roads and wet rainy days and long playing in high temperature, all require our high voltage coolant heater excellent waterproof performance.IP 67 Water and dust proof reports can be provided.



Ø Stepless Regulate Performance.

This takes place either by regulating the water outlet temperature or by limiting the maximum heat output or power consumption.Our High Voltage coolant heater has been equipted in thousands of vehicles for three years ,the good quality has been accecpted by the custmers.



Ø Reliable Self-Protection System

The protection system includes mechanical protection device and electronic protection, which acts to shut the module down in reaction to a short circuit, overload, or over-temperature condition. In addition, We add the current fuse in the high voltage circuit.In addition to the temperature sensor, there is also a mechanical temperature switch inside.



Ø Completely Separation of Water and Electricity

Water and electricity is completely separated.Different from other manufacturers,we solve perfectly the contradiction between the heat transmission efficiency with the Insulation requirement of DC 3500 V.Benefits from this technical improvement, our 870V (nominal voltage) products have been mass produced and used in heavy dump trucks in 2021.



Ø PTC thermistor heater with self-controlled constant temperature.

PTC water coolant heater come with all advantages of the PTC heating technology. Thanks to the PTC effect, the heating elements dynamically adjust their power without exceeding a maximum temperature. High operational reliability and energy efficiency without any additional switching elements.



12V High Voltage Coolant Heater For Ev With Current Fuse 2



Application:



To guarantee a safe journey even in challenging climate conditions, vehicles must be ready for operation right from the start.

Sufficient power of 25 to 35kw can meet the heating, defrosting, battery heating and other needs of large vehicles. Users can adjust the power according to the demand, control the power consumption. We also provide customized service, which can be adjusted according to customer requirements, such as voltage, power, etc



        12V High Voltage Coolant Heater For Ev With Current Fuse 3



WHY choose EVLINK ?





A Beacon of Sustainability

As stewards of the planet, EVLINK embodies sustainability in its ethos. Our products are designed with a vision to reduce the carbon footprint significantly, fostering a greener and more habitable earth for generations to come.

Safety - A Non-Negotiable Priority

At EVLINK, we don't compromise on safety. Our heaters are engineered with high-voltage fuses and integrated dual control systems, establishing a safe operational framework that shields both the users and the apparatus from unforeseen hazards.
