Positive Thermal Coefficient Heater Three Phase Energy Storage BTMS AC 380V

Positive Thermal Coefficient Heater Three Phase Energy Storage BTMS AC 380V
Positive Thermal Coefficient Heater Three Phase Energy Storage BTMS AC 380V Positive Thermal Coefficient Heater Three Phase Energy Storage BTMS AC 380V Positive Thermal Coefficient Heater Three Phase Energy Storage BTMS AC 380V

Large Image :  Positive Thermal Coefficient Heater Three Phase Energy Storage BTMS AC 380V

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: KC01
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1500-2000 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

Positive Thermal Coefficient Heater Three Phase Energy Storage BTMS AC 380V

Description
Heat Output: 6-12kW HV Voltage Range: AC 300-600V
Efficiency: > 95 % Dimensions: 221*168*100mm
Weight: 3kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Dielectric Strength: 1800 V (AC)
IP Protection Class: IP 67 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

Positive Thermal Coefficient Heater 380V

,

positive coefficient heater

,

positive thermal coefficient heater

  1. It complies with international standards and certifications, ensuring adherence to quality and safety requirements.
  2. The heater is backed by comprehensive technical support and customer service to ensure a seamless user experience.
  3. It is suitable for a wide range of battery applications, including automotive, marine, and renewable energy sectors.

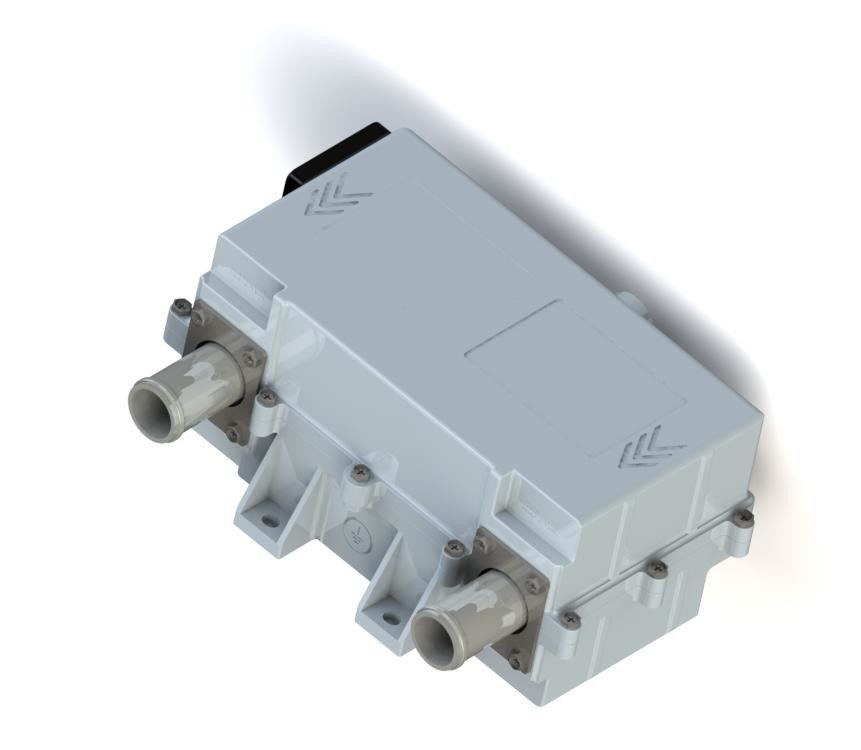

Positive Thermal Coefficient Heater Three Phase Energy Storage BTMS AC 380V 0

HVCH KC01 Series is a small and delicate PTC electric water heater with the maximum power up to 12KW.  KC01 was designed for the battery thermal management in Energy Storage System. Its shell is aluminum die-cast, whose surface has been made anti-corrosion treatment.



HVCH KC01-Series could quickly, consistently,powerfully and reliably heat the battery. The compact device ensures a constantly high heat output of 6kW-12kW and allows for flexible use in a power range of 110 to 550 Volts. .





Specification:



HVCH KC01 Series
Heat Output     6-12kW
HV Voltage Range     AC 300-600V
Efficiency     > 95 %
Dimensions     221*168*100mm
Weight     3kg
Temperature Range for Heating     -40 to 90 ℃
Temperature Range for Ambient     -40 to 125 ℃
Dielectric Strength     1800 V (AC)
IP Protection Class     IP 67
Insulation Resistance     >500MΩ
Service Life     10 years or 10,000 heating hours

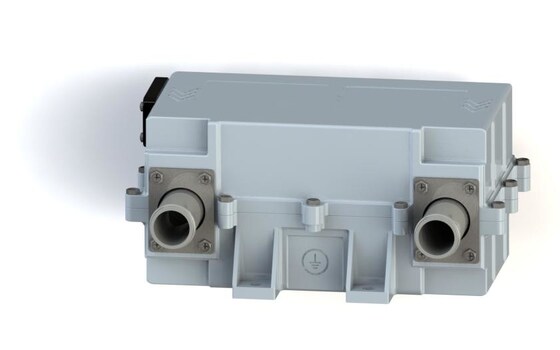

Positive Thermal Coefficient Heater Three Phase Energy Storage BTMS AC 380V 1



Product Features:



Ø Excellent Water Resistance.

During the actual operation, muddy roads and wet rainy days and long playing in high temperature, all require our high voltage coolant heater excellent waterproof performance.IP 67 Water and dust proof reports can be provided.



Ø Completely Separation of Water and Electricity

Water and electricity is completely separated.Different from other manufacturers,we solve perfectly the contradiction between the heat transmission efficiency with the Insulation requirement of DC 3500 V.Benefits from this technical improvement, our 870V (nominal voltage) products have been mass produced and used in heavy dump trucks in 2021.



Ø PTC thermistor heater with self - controlled constant temperature.

PTC water coolant heater come with all advantages of the PTC heating technology. Thanks to the PTC effect, the heating elements dynamically adjust their power without exceeding a maximum temperature. High operational reliability and energy efficiency without any additional switching elements.

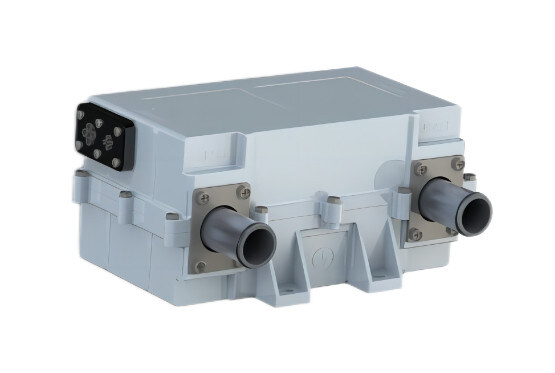

Positive Thermal Coefficient Heater Three Phase Energy Storage BTMS AC 380V 2



Application:



To guarantee a safe journey even in challenging climate conditions, vehicles must be ready for operation right from the start.

Sufficient power of 25 to 35kw can meet the heating, defrosting, battery heating and other needs of large vehicles. Users can adjust the power according to the demand, control the power consumption. We also provide customized service, which can be adjusted according to customer requirements, such as voltage, power, etc



        Positive Thermal Coefficient Heater Three Phase Energy Storage BTMS AC 380V 3



Our service:



1. We can supply you directly, save the agent fees and reduce your cost;
2. Big order comes with big discount, trial orders are also welcome;
3. Reply your enquiry within 24 hours;
4. Price advantages:reasonable and competitive;
5. We are manufacturer and possess strong strength;
6. Do our utmost to meet your demands.





Competitive Advantage:


1. Safety and reliability
2. OEM for your design
3. Stable performance
4. Water-proof, excellent insulating property

5. Excellent dry burning resistance
6. High Voltage,High Power,High Intelligence,High Reliability
