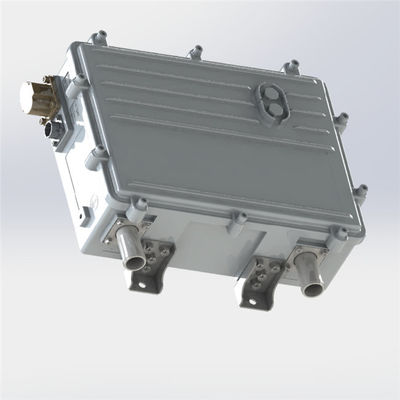

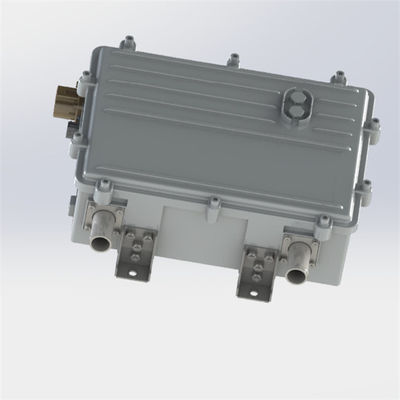

Tesla Battery Coolant Heater High Voltage Powering Tomorrow Electric Mobility

Certification
China Suzhou EVLINK Electronic Technology Co.,Ltd certification
I'm Online Chat Now

Tesla Battery Coolant Heater High Voltage Powering Tomorrow Electric Mobility

Tesla Battery Coolant Heater High Voltage Powering Tomorrow Electric Mobility
Tesla Battery Coolant Heater High Voltage Powering Tomorrow Electric Mobility Tesla Battery Coolant Heater High Voltage Powering Tomorrow Electric Mobility Tesla Battery Coolant Heater High Voltage Powering Tomorrow Electric Mobility Tesla Battery Coolant Heater High Voltage Powering Tomorrow Electric Mobility

Large Image :  Tesla Battery Coolant Heater High Voltage Powering Tomorrow Electric Mobility

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QB01
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1500-2000 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

Tesla Battery Coolant Heater High Voltage Powering Tomorrow Electric Mobility

Description
Heat Output: 20-35KW HV Voltage Range: DC 250-1100V
LV Voltage: DC 24V Nominal Efficiency: > 95 %
Controllability Steps: 1% Dimensions: 365*313*123mm
Weight: 9kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Communication: CAN OR LIN
Dielectric Strength: 3500 V (DC) IP Protection Class: IP 67
EMC: ECE R10 Rev. 5 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

tesla battery coolant heater

,

battery coolant heater High Voltage

,

battery coolant heater tesla

QB Series High Voltage Heater: Powering Tomorrow's Electric Mobility


  1. The heater operates silently and without vibration, ensuring a quiet and comfortable environment.
  2. It is constructed using high-quality materials, ensuring durability and long-term reliability even in demanding battery applications.
  3. The Battery Coolant Heater is resistant to corrosion and chemical degradation, providing a long service life and reliable performance.


 Tesla Battery Coolant Heater High Voltage Powering Tomorrow Electric Mobility 0


Specification:


HVCH QB01 Series
Heat Output20-35kW
HV Voltage Range DC 350-1100V
LV Voltage DC 24V nominal
Efficiency> 95 %
Controllability Steps100W
Dimensions365*313*123mm
Weight10kg
Temperature Range for Heating-40 to 90 ℃
Temperature Range for Ambient-40 to 125 ℃
CommunicationCAN or LIN2.1
Dielectric Strength3500 V (DC)
IP Protection ClassIP 67
EMCECE R10 Rev. 5
Insulation Resistance500MΩ
Service Life10 years or 10,000 heating hours







Tesla Battery Coolant Heater High Voltage Powering Tomorrow Electric Mobility 1





Product Introduction



Introducing the QB Series High Voltage Heater, a futuristic heating solution tailored for plug-in hybrid vehicles (PHEV) and battery electric vehicles (BEV). Designed with precision, this series stands out by transforming DC electrical power into heat with almost no loss, ensuring zero-emission, extensive heating throughout the vehicle's interior.



Features



Exceptional heat output independent of coolant medium temperature and operating voltage.

Comprehensive safety strategy ensures peace of mind.

Consistent and nearly 100% thermal conversion efficiency.

No inrush or peak currents, ensuring battery longevity.

Immediate and efficient heat transfer, designed for prompt response.

Fully compliant with global vehicle standards.





Tesla Battery Coolant Heater High Voltage Powering Tomorrow Electric Mobility 2





Applications







For electric vehicle batteries, the QB Series High Voltage Heater is the go-to solution for thermal management. It proficiently elevates the battery temperature from sub-zero surroundings to an optimal 20°C in record time, marking its superiority in the realm of battery-swapping heavy vehicles.





Tesla Battery Coolant Heater High Voltage Powering Tomorrow Electric Mobility 3





Our Services





Guarantee timely delivery of samples and products.



Regularly update and communicate order status to our customers.



Comprehensive factory tours to showcase our manufacturing prowess.



Address unique needs with specialized technical services



Offer professional remote technical support and consultancy.



Deliver customized technical designs and pioneering solutions.





Competitive Advantages



Unparalleled service combined with a cost-effective price structure.



A wide spectrum of designs tailored to customer requirements.



A team of professionals armed with vast experience, ensuring the best in class products and services.
