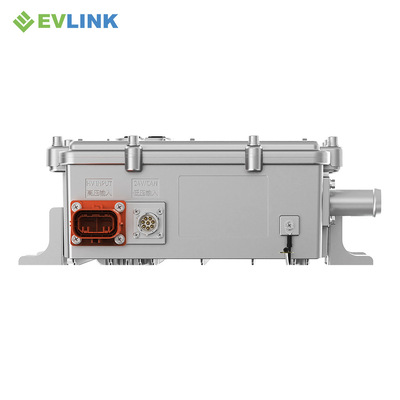

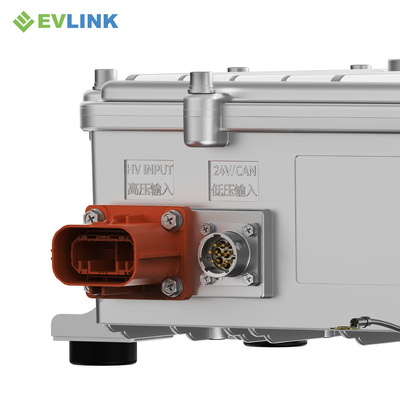

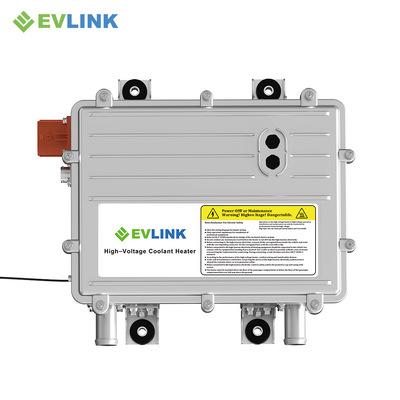

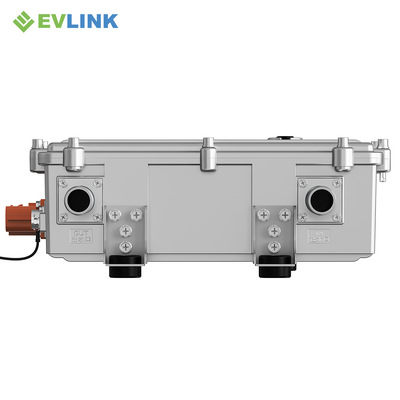

Tesla Battery Coolant Heater High Voltage Powering Tomorrow Electric Mobility

Brand Name:	EVPTC
Model Number:	Q-Series
MOQ:	1 SET
Price:	$15000 per set
Payment Terms:	T/T
Supply Ability:	100 sets per 2 weeks

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

E-Mark, CE

Product Name:

PTC Heater HVCH

Condition:

New

Rated Voltage:

Customizable

Operating Voltage Range:

400V-1100V

Power Output:

15-35kW

Insulation Resistance:

≥100 MΩ (DC1000 V,high-voltage Section)

Operating Temperature:

-40ºC~85ºC

Protection Rating:

IP67

EMC:

Complies With ISO 11452 Class 3 Requirements

High-Voltage Safety Protection:

Equipped With Overvoltage, Undervoltage, Overcurrent, Short Circuit, And Overheat Protection

Communication Method:

CAN Communication, Enable Signal Communication

System Comfort & Safety Control:

Supports PID Control, Fault Self-diagnosis, Automatic Power Limiting

Product Size:

34.6X26.8X12.3 Cm

Warranty:

2 Years

Certifications Obtained:

CE， EMark

Weight:

12KG

Application:

Battery Heating/ Cabin Heating/Regenerative Braking System (RBS)

Packaging Details:

carton or wooden case packing

Supply Ability:

100 sets per 2 weeks

Highlight:

tesla battery coolant heater

battery coolant heater High Voltage

battery coolant heater tesla

Product Description

QB Series High Voltage Heater: Powering Tomorrow's Electric Mobility

The heater operates silently and without vibration, ensuring a quiet and comfortable environment.
It is constructed using high-quality materials, ensuring durability and long-term reliability even in demanding battery applications.
The Battery Coolant Heater is resistant to corrosion and chemical degradation, providing a long service life and reliable performance.

Tesla Battery Coolant Heater High Voltage Powering Tomorrow Electric Mobility

Specification:

HVCH QB01 Series
Heat Output	20-35kW
HV Voltage Range	DC 350-1100V
LV Voltage	DC 24V nominal
Efficiency	> 95 %
Controllability Steps	100W
Dimensions	365313123mm
Weight	10kg
Temperature Range for Heating	-40 to 90 ℃
Temperature Range for Ambient	-40 to 125 ℃
Communication	CAN or LIN2.1
Dielectric Strength	3500 V (DC)
IP Protection Class	IP 67
EMC	ECE R10 Rev. 5
Insulation Resistance	＞500MΩ
Service Life	10 years or 10,000 heating hours

Tesla Battery Coolant Heater High Voltage Powering Tomorrow Electric Mobility

Product Introduction

Introducing the QB Series High Voltage Heater, a futuristic heating solution tailored for plug-in hybrid vehicles (PHEV) and battery electric vehicles (BEV). Designed with precision, this series stands out by transforming DC electrical power into heat with almost no loss, ensuring zero-emission, extensive heating throughout the vehicle's interior.

Features

Exceptional heat output independent of coolant medium temperature and operating voltage.

Comprehensive safety strategy ensures peace of mind.

Consistent and nearly 100% thermal conversion efficiency.

No inrush or peak currents, ensuring battery longevity.

Immediate and efficient heat transfer, designed for prompt response.

Fully compliant with global vehicle standards.

Applications

For electric vehicle batteries, the QB Series High Voltage Heater is the go-to solution for thermal management. It proficiently elevates the battery temperature from sub-zero surroundings to an optimal 20°C in record time, marking its superiority in the realm of battery-swapping heavy vehicles.
