Hybrid Battery Coolant Heater For Electric Vehicles Thermal Management

Certification
China Suzhou EVLINK Electronic Technology Co.,Ltd certification
I'm Online Chat Now

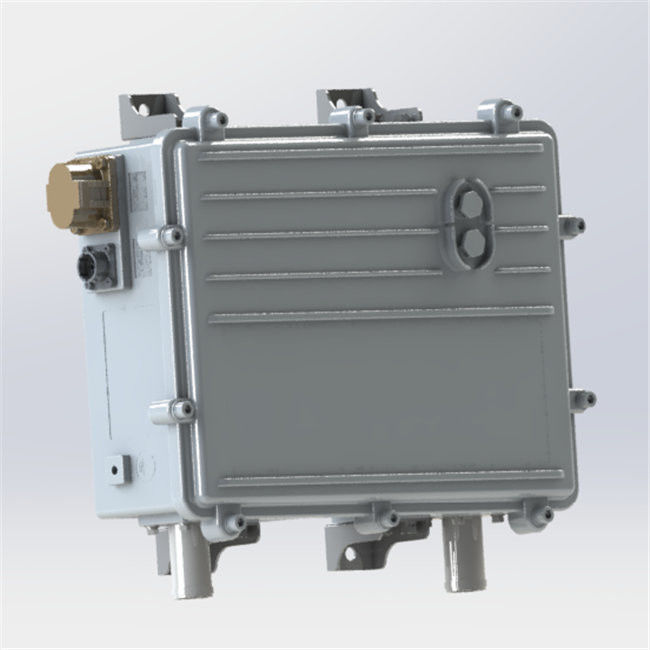

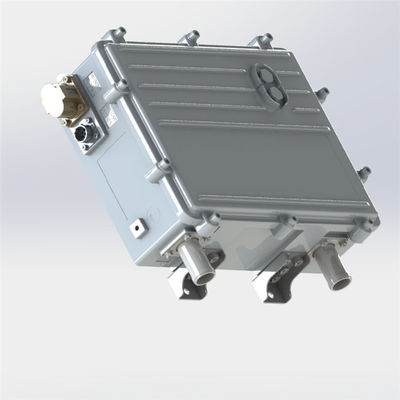

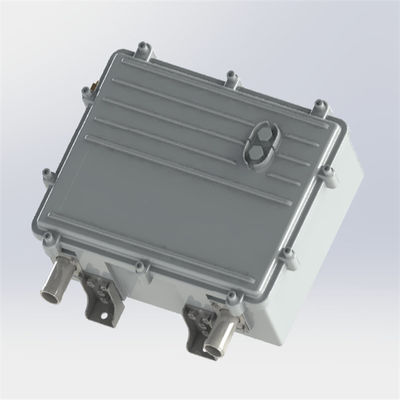

Hybrid Battery Coolant Heater For Electric Vehicles Thermal Management

Hybrid Battery Coolant Heater For Electric Vehicles Thermal Management
Hybrid Battery Coolant Heater For Electric Vehicles Thermal Management Hybrid Battery Coolant Heater For Electric Vehicles Thermal Management Hybrid Battery Coolant Heater For Electric Vehicles Thermal Management Hybrid Battery Coolant Heater For Electric Vehicles Thermal Management

Large Image :  Hybrid Battery Coolant Heater For Electric Vehicles Thermal Management

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QB01
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1500-2000 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

Hybrid Battery Coolant Heater For Electric Vehicles Thermal Management

Description
Heat Output: 20-35KW HV Voltage Range: DC 250-1100V
LV Voltage: DC 24V Nominal Efficiency: > 95 %
Controllability Steps: 1% Dimensions: 365*313*123mm
Weight: 9kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Communication: CAN OR LIN
Dielectric Strength: 3500 V (DC) IP Protection Class: IP 67
EMC: ECE R10 Rev. 5 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

hybrid battery coolant heater

,

battery coolant heater for Electric Vehicles

,

Electric Vehicle Coolant Heater

EVLINK QB Coolant Heater Series: Superior Thermal Management Solution for Electric Vehicles

  1. It offers efficient heat transfer and distribution, ensuring uniform coolant temperature and effective battery cooling.
  2. The heater is compatible with various battery systems, including electric vehicles, hybrid vehicles, and energy storage systems.
  3. It is designed for easy installation and maintenance, with accessible components and user-friendly interfaces.


Hybrid Battery Coolant Heater For Electric Vehicles Thermal Management 0


Specification:


HVCH QB01 Series
Heat Output20-35kW
HV Voltage Range DC 350-1100V
LV Voltage DC 24V nominal
Efficiency> 95 %
Controllability Steps100W
Dimensions365*313*123mm
Weight10kg
Temperature Range for Heating-40 to 90 ℃
Temperature Range for Ambient-40 to 125 ℃
CommunicationCAN or LIN2.1
Dielectric Strength3500 V (DC)
IP Protection ClassIP 67
EMCECE R10 Rev. 5
Insulation Resistance500MΩ
Service Life10 years or 10,000 heating hours







Hybrid Battery Coolant Heater For Electric Vehicles Thermal Management 1





Product Introduction



With the advancement of electric vehicle technology, efficient and reliable heating systems are in the spotlight. EVLINK's QB series heaters, equipped with a dual-core connector from Zhong hang Photoelectric, blend modern technology with efficient design, offering enduring, stable, and safe heating performance. It's among the most sought-after heating solutions in today's market.







Features





High Adaptability: The QB series, with its Zhonghang Photoelectric dual-core connector, offers efficient, stable connections for diverse vehicles.



Quick Start & Uniform Heating: Unique design ensures rapid startup times and even heating, quickly reaching desired comfort levels even in cold conditions.



Efficiency & Economical: Compared to traditional heaters, the QB series operates at a higher efficiency while consuming less power, saving energy costs for users.





Hybrid Battery Coolant Heater For Electric Vehicles Thermal Management 2



Applications







EVLINK's QB series heaters are suitable not only for electric vehicles but also for retrofitted vehicles, public transport, and other scenarios demanding efficient heating.







Hybrid Battery Coolant Heater For Electric Vehicles Thermal Management 3

Our Services







Customization: Tailored heating solutions based on specific client requirements.



Technical Support: Comprehensive technical backing to ensure efficient and stable heater operation.



After-sales Service: Our service team is always on standby to address any concerns.







Competitive Advantages



High-Performance Efficiency: The QB series from EVLINK is renowned in the market for its exceptional performance.



Reliability & Durability: Rigorous quality control ensures the longevity of our products.



Market Recognition: EVLINK has become the preferred supplier for many renowned brands, garnering widespread market acclaim.
