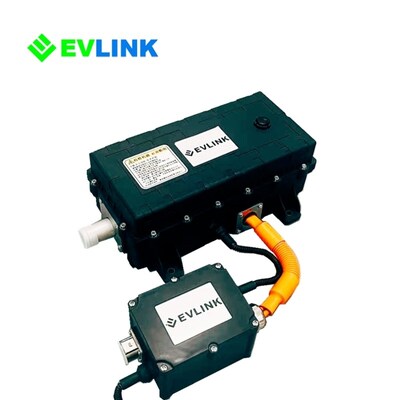

Industrial Version High Voltage Water Heater For Heating Water Circuits In Special Purpose Vehicles

Product Details

Place of Origin: CHINA

Brand Name: EVPTC

Certification: CE

Model Number: B

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: $500-1000 per set

Packaging Details: carton or wooden case packing

Delivery Time: 15-20days

Payment Terms: T/T

Supply Ability: 100 sets per 2 weeks

Get Best Price
Product Details
High Light:

Industrial Version High Voltage Water Heater

,

Special Vehicles High Voltage Water Heater

Heat Output:
20-28KW
HV Voltage Range:
DC 250-870V
LV Voltage:
DC 24V Nominal
Efficiency:
> 95 %
Controllability Steps:
1%
Temperature Range For Heating:
-40 To 90 ℃
Temperature Range For Ambient:
-40 To 125 ℃
Communication:
CAN OR LIN
Dielectric Strength:
3500 V (DC)
IP Protection Class:
IP 67
EMC:
ECE R10 Rev. 5
Insulation Resistance:
>500MΩ
Service Life:
10 Years Or 10,000 Heating Hours
Heat Output:
20-28KW
HV Voltage Range:
DC 250-870V
LV Voltage:
DC 24V Nominal
Efficiency:
> 95 %
Controllability Steps:
1%
Temperature Range For Heating:
-40 To 90 ℃
Temperature Range For Ambient:
-40 To 125 ℃
Communication:
CAN OR LIN
Dielectric Strength:
3500 V (DC)
IP Protection Class:
IP 67
EMC:
ECE R10 Rev. 5
Insulation Resistance:
>500MΩ
Service Life:
10 Years Or 10,000 Heating Hours
Product Description

Specification:

HVCH B Series
Heat Output 16-28kW
HV Voltage Range DC 350-800V
LV Voltage DC 24V nominal
Efficiency > 95 %
Controllability Steps 100W
Dimensions 370x192x126
Weight 10kg
Temperature Range for Heating -40 to 90 ℃
Temperature Range for Ambient -40 to 125 ℃
Communication CAN or LIN2.1
Dielectric Strength 3500 V (DC)
IP Protection Class IP 67
EMC ECE R10 Rev. 5
Insulation Resistance 500MΩ
Service Life 10 years or 10,000 heating hours



Introduction

In special-purpose vehicles, especially those used for industrial applications, an efficient and reliable heating system is crucial. The high voltage water heater, designed specifically for heating water circuits in these vehicles, is an excellent solution. This article will provide a detailed overview of the features and advantages of the EVLINK high voltage water heater, focusing on its power, voltage range, and integrated control systems, and explain how it meets the demanding conditions of industrial use.

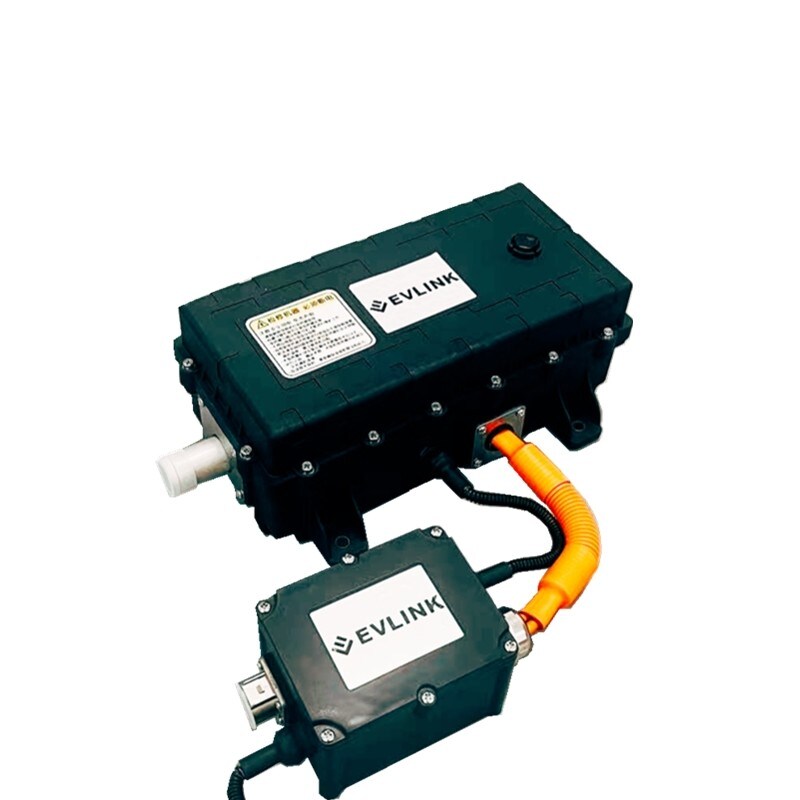

Industrial Version High Voltage Water Heater For Heating Water Circuits In Special Purpose Vehicles 0

Understanding EVLINK High Voltage Water Heater

The EVLINK high voltage water heater is an advanced heater with integrated PTC elements and control units, designed for heating coolant in special-purpose vehicles. It operates on direct current (DC) and is particularly suited for industrial applications. This heater is composed of multiple PTC heating elements and has been rigorously validated according to automotive standards to ensure it meets the highest safety requirements.

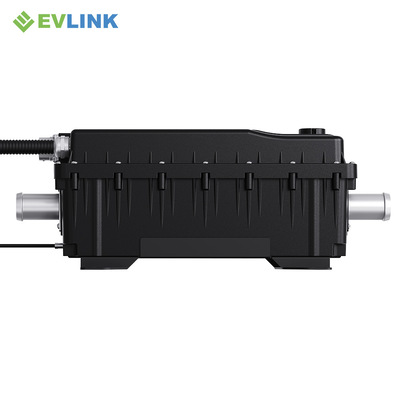

Industrial Version High Voltage Water Heater For Heating Water Circuits In Special Purpose Vehicles 1



Key Features of EVLINK High Voltage Water Heater

Power and Voltage Capabilities

  • Power Output: The high voltage water heater offers up to 20kW of power output, with a boost mode reaching up to 22kW. This powerful performance ensures rapid and efficient heating of water circuits, which is essential for maintaining optimal operation in special-purpose vehicles.
  • Voltage Range: The heater is designed to operate within a wide voltage range of 450 - 850V DC, with a boost range up to 950V DC. This flexibility in voltage allows it to be integrated into various vehicle systems, meeting different voltage requirements and ensuring compatibility across a broad spectrum of industrial applications.

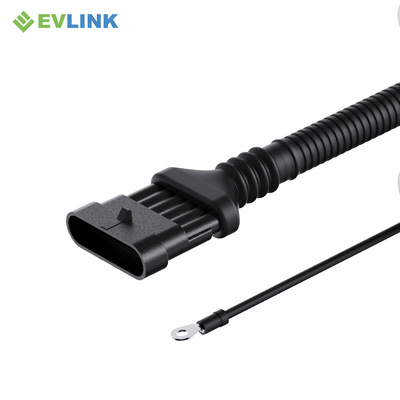

Industrial Version High Voltage Water Heater For Heating Water Circuits In Special Purpose Vehicles 2



Integrated Control Systems

  • CAN Control Module: The heater is equipped with an integrated CAN 2.0 control module, allowing precise and independent control of the heating elements. EVLINK provides CAN 2.0 communication protocol and can also customize the CAN protocol to meet customer control requirements, and provide DBC files as needed.
  • Temperature Sensor Controller: With an integrated temperature sensor controller, the high voltage water heater ensures the water circuits maintain the desired temperature. This feature not only improves the efficiency of the heating system but also enhances vehicle operation safety and reliability by preventing overheating and maintaining optimal performance.

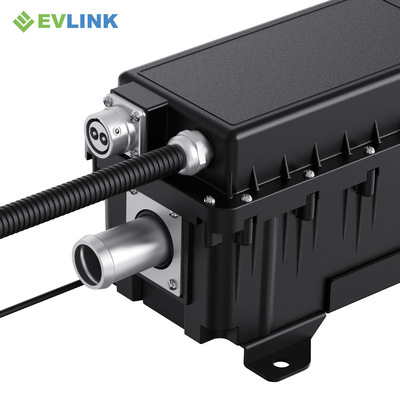

Industrial Version High Voltage Water Heater For Heating Water Circuits In Special Purpose Vehicles 3



Advantages of the High Voltage Water Heater in Industrial Applications

  • Safety and Reliability: The heater is validated according to automotive standards, ensuring it meets the highest safety requirements. Its aluminum die-cast design and reliable performance make it an excellent choice for industrial applications where safety and reliability are critical.
  • Energy Efficiency: The EVLINK high voltage water heater is designed to provide maximum energy efficiency. Its rapid heating capability and consistent temperature control help reduce energy consumption and enhance the overall efficiency of vehicle operation.
  • Versatility: With its wide voltage range and powerful output, the heater is highly versatile and can be integrated into various special-purpose vehicles. Whether used in electric buses, construction machinery, or heavy-duty trucks, the high voltage water heater offers reliable and efficient heating solutions.

Applications of High Voltage Water Heater in Special-Purpose Vehicles

The high voltage water heater is particularly suited for the following special-purpose vehicles:

  • Electric Buses: Ensuring passengers remain comfortable in cold weather by maintaining optimal cabin temperatures without affecting the vehicle's range.
  • Construction Machinery: Providing efficient heating for cabins and critical components, ensuring smooth operation in harsh environmental conditions.
  • Heavy-Duty Trucks: Offering reliable heating solutions for cabins and other systems, enhancing driver comfort and operational efficiency.

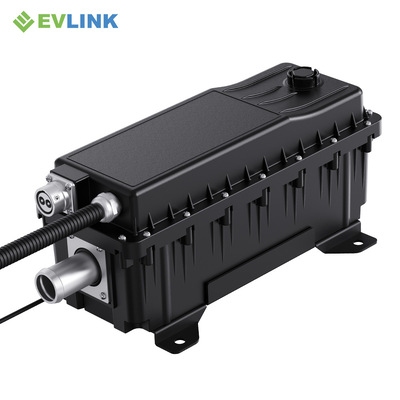

Industrial Version High Voltage Water Heater For Heating Water Circuits In Special Purpose Vehicles 4



Choosing the Right High Voltage Water Heater

EVLINK's high voltage coolant heater precisely serves electric commercial vehicles, helping you choose the right high voltage PTC heater for your large electric vehicles. Based on the factors you provide, we customize high voltage electric heaters:

  • Voltage Range: EVLINK heaters support voltage requirements from 350V to 1100V, ensuring compatibility with the electric vehicle's electrical system.
  • Heating Capacity: Matching the PTC heater's output with the vehicle's heating requirements, EVLINK heaters support power outputs from 5kW to 35kW and have been mass-produced.
  • Durability: Choose heaters designed for long-term reliability in challenging extreme environments. EVLINK's Q series heaters are fully constructed using aluminum die-casting, with internal protection strategies ensuring safety, making them a reliable choice for large electric commercial vehicle projects.

Conclusion

High voltage water heaters, with their low cost and high quality, occupy an irreplaceable position in the electric vehicle heating field. Their energy efficiency, safety features, and rapid heating capabilities make them an indispensable part of modern electric vehicles. As the electric vehicle industry continues to evolve, high voltage water heaters are expected to play a more significant role in improving passenger comfort and driving range.

Whether used in electric buses, construction machinery, or heavy-duty trucks, high voltage water heaters demonstrate their excellent performance and reliability, providing ideal heating solutions for industrial special-purpose vehicles.
