Name: High Voltage Water Heater For Electric Buses EVLINK PTC 2kw
Brand: EVLINK Electronic Co.,Ltd
SKU: N Series
Price: 300 USD
Availability: InStock

Brand Name:	EVLINK
Model Number:	N Series
MOQ:	1 SET
Price:	$300 per set
Payment Terms:	T/T
Supply Ability:	100 sets per 2 weeks

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

E-Mark、CE

Rated Voltage:

Customizable

Operating Voltage Range:

200-1000VDC

Power Output:

2KW

Operating Temperature:

-40ºC~85ºC

Protection Rating:

IP67

Application:

Small Electric Vehicle Platform

Packaging Details:

carton or wooden case

Supply Ability:

100 sets per 2 weeks

Highlight:

EVLINK PTC High Voltage Water Heater

Electric Buses High Voltage Water Heater

High Voltage hv ptc heater

Product Description

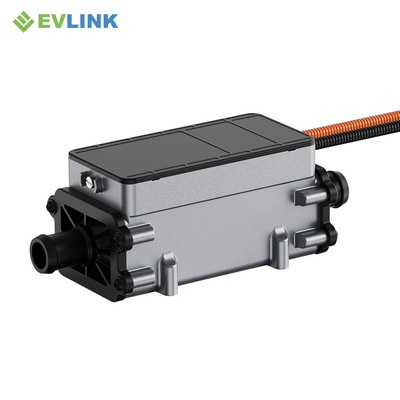

The EVLINK PTC coolant heater uses electrical energy to heat circulating coolant, providing a stable and controllable heat source for a vehicle's thermal management system. Designed for battery electric and hybrid vehicles, the product supports cabin heating, window defrosting and demisting, as well as battery thermal management (TMS). It addresses the diverse thermal management requirements of various vehicles, offering a flexible and reliable heating solution for the entire vehicle.

Additional Technical Specifications

EMC	NO
Insulation Resistance	≥100 MΩ at DC 1000V, high-voltage section
High-Voltage Protection	Thermostat
Communication Method	NO
Product Size	203x79x71mm
Product Weight	1.22kg

Final specifications and protection thresholds should be confirmed according to the selected configuration and approved technical agreement.

Product Description

EVLINK N-Series PTC Coolant Heater is designed to provide efficient coolant heating for small electric vehicles. With a rated heating power of 2 kW and an operating voltage range of 220–800 V DC, it converts electrical energy into heat and transfers it to the circulating coolant, supporting vehicle thermal management and cabin heating systems. Its compact power rating makes it suitable for applications with moderate heating demands, providing a practical heating solution for small electric vehicle platforms.

Applications

High Voltage Water Heater For Electric Buses EVLINK PTC 2kw

EV Battery Thermal Management

The heater can warm coolant before it enters the battery thermal management circuit. This supports battery temperature control during low-temperature operation. Battery temperature limits, required heating rate, coolant flow and control strategy should be defined by the vehicle manufacturer.

Electric Vehicle Cabin Heating

For cabin heating, warmed coolant passes through a cabin heat exchanger to provide heat for the passenger compartment. Heating performance depends on both coolant circulation and airflow through the HVAC heat exchanger.

Electric Buses, Trucks and Construction Vehicles

The 15–35kW range is intended for vehicle platforms with substantial heating demand. Suitability for a specific vehicle must be confirmed from its voltage platform, target heat output, available installation space and coolant-system design.

Frequently Asked Questions

1.What does a high voltage PTC coolant heater do?

It uses electrical power from the vehicle’s high-voltage system to heat circulating coolant. The coolant can then transfer heat to the battery system, cabin heat exchanger or another approved thermal circuit.

2.Is the 15–35kW heater suitable for every electric vehicle?

No. It is intended for projects with relatively high heating demand. The correct configuration depends on operating voltage, required heat output, coolant conditions, installation space and control requirements.

3.Can one heater support both battery and cabin heating?

It may support either application when the vehicle coolant architecture and control strategy allow it. Some vehicles use separate circuits, while others use valves or a shared thermal loop.

4.What information is required to select a heater?

Please provide the vehicle type, operating-voltage range, required heating power, coolant type, expected flow rate, inlet-temperature range, installation space, connector requirements and CAN communication requirements.

5.Can the mounting, connectors or control interface be customized?

Project-specific requirements can be evaluated after the installation drawing, packaging space and electrical interface are provided. The final configuration should be confirmed in the approved drawing and technical agreement.

Request a Product Recommendation

Send us your voltage range, target heating power, coolant conditions, flow rate, installation drawing, control requirements and project quantity. EVLINK will review the information and recommend a suitable configuration for technical confirmation and quotation.
