Product Details
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QA
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: $1200-1500 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks
Heat Output: |
15-25KW |
HV Voltage Range: |
DC 250-870V |
LV Voltage: |
DC 24V Nominal |
Efficiency: |
> 95 % |
Controllability Steps: |
1% |
Dimensions: |
365*313*123mm |
Weight: |
9kg |
Temperature Range For Heating: |
-40 To 90 ℃ |
Temperature Range For Ambient: |
-40 To 125 ℃ |
Communication: |
CAN OR LIN |
Dielectric Strength: |
3500 V (DC) |
IP Protection Class: |
IP 67 |
EMC: |
ECE R10 Rev. 5 |
Insulation Resistance: |
>500MΩ |
Service Life: |
10 Years Or 10,000 Heating Hours |
Heat Output: |
15-25KW |
HV Voltage Range: |
DC 250-870V |
LV Voltage: |
DC 24V Nominal |
Efficiency: |
> 95 % |
Controllability Steps: |
1% |
Dimensions: |
365*313*123mm |
Weight: |
9kg |
Temperature Range For Heating: |
-40 To 90 ℃ |
Temperature Range For Ambient: |
-40 To 125 ℃ |
Communication: |
CAN OR LIN |
Dielectric Strength: |
3500 V (DC) |
IP Protection Class: |
IP 67 |
EMC: |
ECE R10 Rev. 5 |
Insulation Resistance: |
>500MΩ |
Service Life: |
10 Years Or 10,000 Heating Hours |
Introduction:

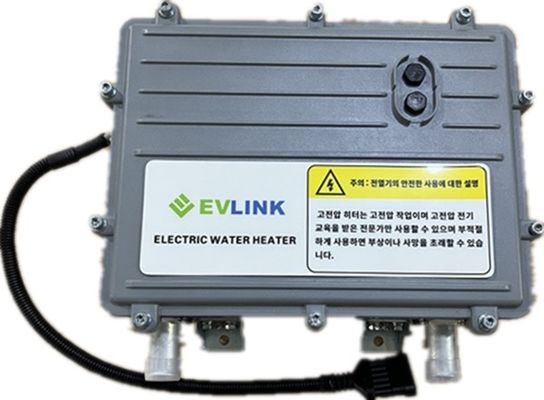

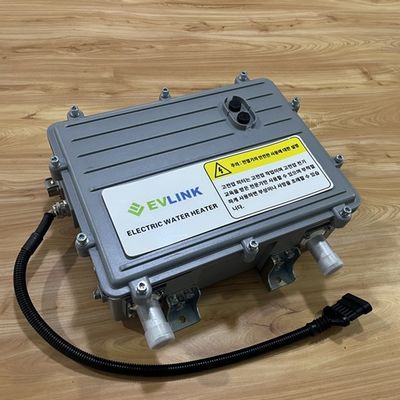

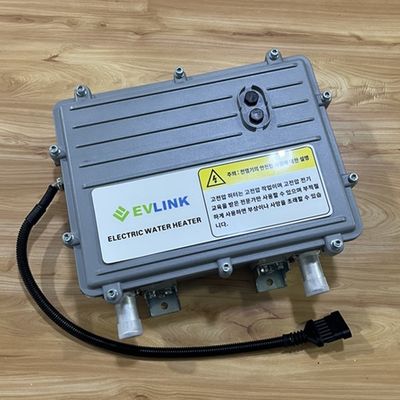

EVLINK leads innovation with the latest 600V30KW PTC electric heater, providing outstanding performance to tackle winter cold. Its advanced CAN control system gives it a unique advantage in energy efficiency and intelligent management.
Key Features:
High-Power PTC Electric Heating Solution:
Enhanced Efficiency with CAN Control System:
Versatile Application as a Water Heater:
Efficient PCT Technology:
Advantages:
Powerful Performance with PTC Technology:
Intelligent Energy Management with CAN Control:
Versatile Application as a Water Heater:
EVLINK's 600V30KW PTC electric heater, with its outstanding performance, intelligent management, and versatile application, is the perfect solution for winter heating challenges. Leveraging advanced technology, this electric heater makes the cold season warmer and more efficient.
HVCH QA01 Series | |
Heat Output | 15-25kW |
HV Voltage Range | DC 250-870V |
LV Voltage |
DC 24V nominal |
Efficiency | > 95 % |
Controllability Steps | 100W |
Dimensions | 365*313*123mm |
Weight | 9kg |
Temperature Range for Heating | -40 to 90 ℃ |
Temperature Range for Ambient | -40 to 125 ℃ |
Communication | CAN or LIN2.1 |
Dielectric Strength | 3500 V (DC) |
IP Protection Class | IP 67 |
EMC | ECE R10 Rev. 5 |
Insulation Resistance | >500MΩ |
Service Life | 10 years or 10,000 heating hours |
