HVCH Ev Battery Heater CE

Product Details

Place of Origin: CHINA

Brand Name: EVPTC

Certification: CE

Model Number: QA

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: $1200-1500 per set

Packaging Details: carton or wooden case packing

Delivery Time: 15-20days

Payment Terms: T/T

Supply Ability: 100 sets per 2 weeks

Get Best Price
Product Details
High Light:

HVCH ev battery heater

,

ev battery heater CE

,

HVCH battery heater

Heat Output:
15-25KW
HV Voltage Range:
DC 250-870V
LV Voltage:
DC 24V Nominal
Efficiency:
> 95 %
Controllability Steps:
1%
Dimensions:
365*313*123mm
Weight:
9kg
Temperature Range For Heating:
-40 To 90 ℃
Temperature Range For Ambient:
-40 To 125 ℃
Communication:
CAN OR LIN
Dielectric Strength:
3500 V (DC)
IP Protection Class:
IP 67
EMC:
ECE R10 Rev. 5
Insulation Resistance:
>500MΩ
Service Life:
10 Years Or 10,000 Heating Hours
Heat Output:
15-25KW
HV Voltage Range:
DC 250-870V
LV Voltage:
DC 24V Nominal
Efficiency:
> 95 %
Controllability Steps:
1%
Dimensions:
365*313*123mm
Weight:
9kg
Temperature Range For Heating:
-40 To 90 ℃
Temperature Range For Ambient:
-40 To 125 ℃
Communication:
CAN OR LIN
Dielectric Strength:
3500 V (DC)
IP Protection Class:
IP 67
EMC:
ECE R10 Rev. 5
Insulation Resistance:
>500MΩ
Service Life:
10 Years Or 10,000 Heating Hours
Product Description

EVLINK HVCH QA01 Series: The Revolutionary High-Voltage Heater with Superior After-Sales Service Network

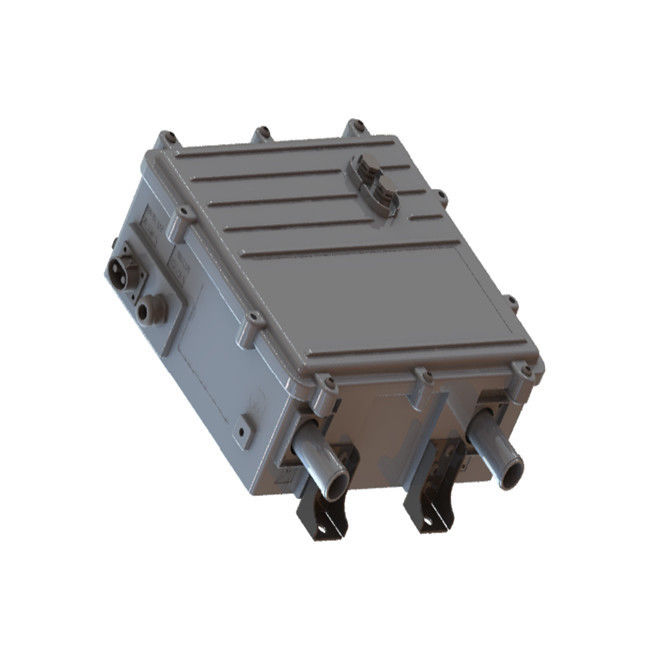

HVCH Ev Battery Heater  CE 0









Product Introduction:





Step into a world where innovation meets excellence with the EVLINK HVCH QA01 series. Developed through an esteemed collaboration between EVLINK and the University of Shanghai for Science and Technology, this high-voltage PTC heater series is designed to redefine comfort and convenience in vehicular heating solutions. From its groundbreaking technology to its energy-efficient operations, discover a product that promises an unmatched experience in quality and reliability.







Specification:





HVCH QA01 Series
Heat Output     15-25kW
HV Voltage Range     DC 250-870V

LV Voltage

  DC 24V nominal
Efficiency     > 95 %
Controllability Steps     100W
Dimensions     365*313*123mm
Weight     9kg
Temperature Range for Heating     -40 to 90 ℃
Temperature Range for Ambient     -40 to 125 ℃
Communication     CAN or LIN2.1
Dielectric Strength     3500 V (DC)
IP Protection Class     IP 67
EMC     ECE R10 Rev. 5
Insulation Resistance     >500MΩ
Service Life     10 years or 10,000 heating hours

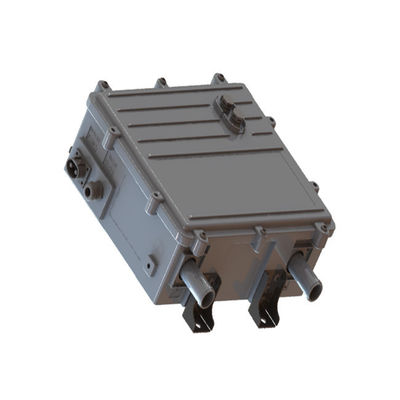

HVCH Ev Battery Heater  CE 1

HVCH Ev Battery Heater  CE 2









Product Attributes





Technologically Advanced Control System: Crafted with a unique and responsive control system, this series adapts swiftly to various environmental challenges, promising consistent and optimum performance at all times.



Green Operation: Our heater not only ensures a cozy environment but also champions environmental responsibility by minimizing energy consumption and promoting green operation.



Customization at its Best: Tailored to meet diverse requirements, EVLINK offers customization that integrates seamlessly into different vehicle blueprints, promising an uncompromised and personalized experience.



HVCH Ev Battery Heater  CE 3

Applications



The EVLINK HVCH QA01 series has emerged as the beacon of warmth and comfort during the brutal Korean winters. A favored choice in electric buses, it guarantees a haven of warmth, ensuring a pleasant and comfortable journey even when the temperatures outside reach extreme lows.







HVCH Ev Battery Heater  CE 4





Our Services



EVLINK takes pride in its extensive service network that stands as a pillar of trust and reliability. Our services transcend the traditional boundaries, fostering long-term relationships with our clients.



Expert Training and Guidance: A team of seasoned experts offer comprehensive training to bus operators, ensuring that the heaters function at their optimum, thus promising a secure and congenial environment for passengers.



Round-the-Clock Customer Support: With an unwavering commitment to customer satisfaction, our dedicated customer service is available 24/7 to assist with any queries or support you may need, guaranteeing a seamless and uninterrupted experience.



Scheduled Maintenance and Inspections: Our meticulous maintenance and inspection regime promises longevity and unwavering performance, with preemptive solutions to potential issues, ensuring a hassle-free operation.



Competitive Advantages





Groundbreaking R&D Collaboration: Our collaborative effort with the University of Shanghai for Science and Technology marks a milestone in industry innovation, presenting a product that is a blend of research and advanced technology.



Energy-Efficient Marvel: The EVLINK HVCH QA01 series is a testament to sustainable innovation, offering high efficiency and championing a reduced carbon footprint.



Unmatched After-Sales Service Network: The cornerstone of our brand, our extensive after-sales service network, stands as a beacon of trust and reliability, promising a customer experience that is gratifying and fulfilling.







HVCH Ev Battery Heater  CE 5
