Automotive Electric High Voltage PTC Heater For Electric Vehicles

Certification
China Suzhou EVLINK Electronic Technology Co.,Ltd certification
I'm Online Chat Now

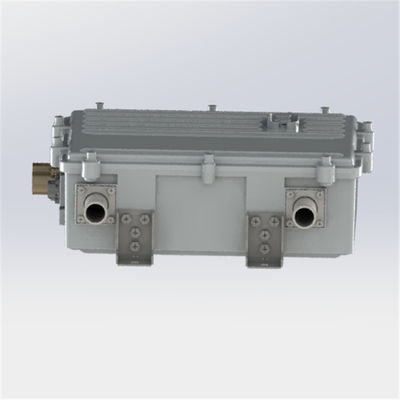

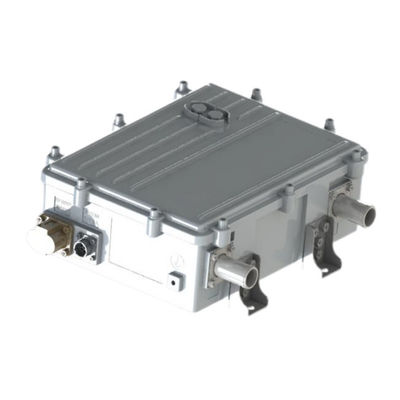

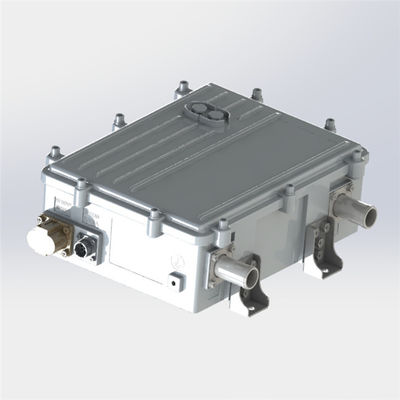

Automotive Electric High Voltage PTC Heater For Electric Vehicles

Automotive Electric High Voltage PTC Heater For Electric Vehicles
Automotive Electric High Voltage PTC Heater For Electric Vehicles Automotive Electric High Voltage PTC Heater For Electric Vehicles Automotive Electric High Voltage PTC Heater For Electric Vehicles Automotive Electric High Voltage PTC Heater For Electric Vehicles

Large Image :  Automotive Electric High Voltage PTC Heater For Electric Vehicles

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QB01
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1500-2000 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

Automotive Electric High Voltage PTC Heater For Electric Vehicles

Description
Heat Output: 20-35KW HV Voltage Range: DC 250-1100V
LV Voltage: DC 24V Nominal Efficiency: > 95 %
Controllability Steps: 1% Dimensions: 365*313*123mm
Weight: 9kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Communication: CAN OR LIN
Dielectric Strength: 3500 V (DC) IP Protection Class: IP 67
EMC: ECE R10 Rev. 5 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

Electric High Voltage Coolant Heater

,

High Voltage PTC Heater for electric vehicles

,

vehicles PTC Heater

The QB01-Coolant PTC Heater Series: Revolutionizing Warmth in Elite E-Buses DC HV Voltage Range 800V Heater



  1. The PTC heater is suitable for both indoor and outdoor high-voltage applications, offering versatility in installation options.
  2. It is designed to operate silently, without generating noise or vibrations that could interfere with sensitive equipment.
  3. The heater is resistant to mechanical shock and vibration, ensuring reliable performance in challenging environments.
  4. It offers excellent thermal stability, maintaining consistent heating even in fluctuating ambient temperatures.



Automotive Electric High Voltage PTC Heater For Electric Vehicles 0


Specification:

HVCH QB01 Series
Heat Output 20-35kW
HV Voltage Range DC 350-1100V
LV Voltage DC 24V nominal
Efficiency > 95 %
Controllability Steps 100W
Dimensions 365*313*123mm
Weight 10kg
Temperature Range for Heating -40 to 90 ℃
Temperature Range for Ambient -40 to 125 ℃
Communication CAN or LIN2.1
Dielectric Strength 3500 V (DC)
IP Protection Class IP 67
EMC ECE R10 Rev. 5
Insulation Resistance 500MΩ
Service Life 10 years or 10,000 heating hours







Automotive Electric High Voltage PTC Heater For Electric Vehicles 1



Introduction:



As we usher in a new era of electrification, EVLINK stands as a trailblazer with its superior Coolant PTC heaters that exemplify higher demands in terms of technology and quality compared to their lower wattage counterparts. Especially designed for commercial vehicles, these heaters embody a seamless amalgamation of safety and high-efficiency, ensuring an elite heating solution for the next generation of e-buses.



Features:

Exceptional Waterproof Performance: In real-world conditions involving muddy roads, wet rainy days, or extended high-temperature operations, the QB01-Coolant PTC Heater Series demonstrates remarkable waterproof capabilities, meeting the rigorous demands of IP67 water and dust proof standards.



Stepless Performance Regulation: The series showcases versatility through its ability to seamlessly regulate performance based on distinct needs, achieved by either adjusting the water outlet temperature or by managing the maximum heat output and power consumption, securing a stamp of approval from a multitude of customers.



Robust Dual-Self Protection System: A hallmark of reliability, the series integrates a dual protection system comprising mechanical and electronic safeguards. It promptly shuts down during short circuits, overload, or over-temperature situations, bolstered with the inclusion of high-voltage relays and current fuses in the high-voltage circuit.



Complete Separation of Water and Electricity: This series addresses the historic contradiction between heat transfer efficiency and the insulation requirements of DC 3500V adeptly, paving the way for the mass production of 870V (nominal voltage) products, a favored choice in heavy dump trucks since 2021.



PTC Thermistor Heater with Self-Controlled Constant Temperature: Capitalizing on PTC heating technology, the heating elements dynamically manage their power input, preventing any surpassing of maximum temperature thresholds, thus promising high operational reliability and energy efficiency without necessitating additional switching elements.







Automotive Electric High Voltage PTC Heater For Electric Vehicles 2



Applications:



Ensuring a secure and comfortable journey even in the most challenging climatic conditions, the QB01 Series serves as a trusted ally. With an impressive power range of 15 to 25 kW, it accommodates a plethora of needs including heating, defrosting, and battery heating for large vehicles. Customized services aligning with specific requirements such as voltage and power are also available, embodying a pledge of flexibility and customer-centric approach.



Automotive Electric High Voltage PTC Heater For Electric Vehicles 3



Our Services:

Direct supplier relationships eliminating intermediary costs.

Competitive pricing structures, with substantial discounts on bulk orders.

Swift responses to enquiries within a 24-hour window.

Commitment to meeting customer needs, backed by a strong manufacturing foundation.

Consistent updates on order statuses, fostering clear communication channels with customers.



Competitive Advantages:

A synthesis of safety and reliability.

OEM services for personalized designs.

Stable performance benchmarks.

Superior insulation properties paired with excellent dry-burning resistance.

An embodiment of high voltage, power, intelligence, and reliability.
