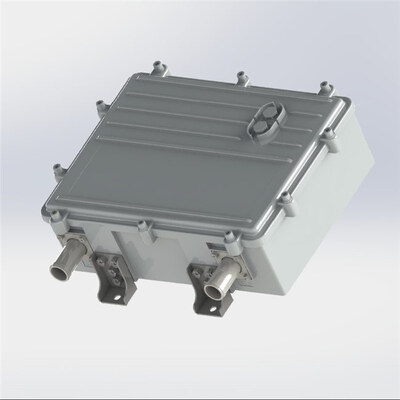

350-1100V Hv Ptc Heater 20-35KW Voltage Range Heater

Product Details

Place of Origin: CHINA

Brand Name: EVPTC

Certification: CE

Model Number: QB01

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: $1500-2000 per set

Packaging Details: carton or wooden case packing

Delivery Time: 15-20days

Payment Terms: T/T

Supply Ability: 100 sets per 2 weeks

Get Best Price
Product Details
High Light:

350-1100V Hv Ptc Heater

,

Hv Ptc Heater 20-35KW

,

Hv Heater 20-35KW

Heat Output:
20-35KW
HV Voltage Range:
DC 250-1100V
LV Voltage:
DC 24V Nominal
Efficiency:
> 95 %
Controllability Steps:
1%
Dimensions:
365*313*123mm
Weight:
9kg
Temperature Range For Heating:
-40 To 90 ℃
Temperature Range For Ambient:
-40 To 125 ℃
Communication:
CAN OR LIN
Dielectric Strength:
3500 V (DC)
IP Protection Class:
IP 67
EMC:
ECE R10 Rev. 5
Insulation Resistance:
>500MΩ
Service Life:
10 Years Or 10,000 Heating Hours
Heat Output:
20-35KW
HV Voltage Range:
DC 250-1100V
LV Voltage:
DC 24V Nominal
Efficiency:
> 95 %
Controllability Steps:
1%
Dimensions:
365*313*123mm
Weight:
9kg
Temperature Range For Heating:
-40 To 90 ℃
Temperature Range For Ambient:
-40 To 125 ℃
Communication:
CAN OR LIN
Dielectric Strength:
3500 V (DC)
IP Protection Class:
IP 67
EMC:
ECE R10 Rev. 5
Insulation Resistance:
>500MΩ
Service Life:
10 Years Or 10,000 Heating Hours
Product Description

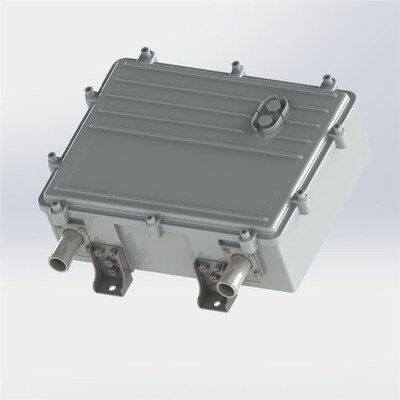

HVCH QB01 Series 350-1100V HV Voltage Range Heater



  1. The heater is compatible with various power sources, including AC and DC power, providing flexibility in charging and powering options.
  2. It is equipped with safety features such as overheat protection and fault detection, ensuring safe and reliable operation.
  3. The heater is designed to be environmentally friendly, with low emissions and energy-efficient operation.


 350-1100V Hv Ptc Heater 20-35KW Voltage Range Heater 0

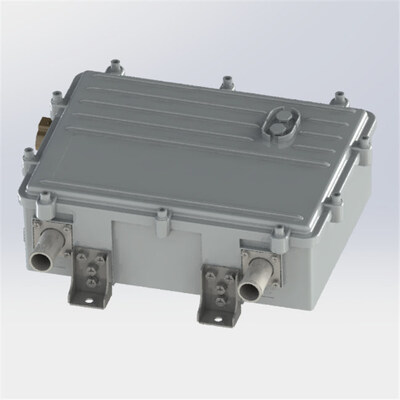

Specification:




HVCH QB01 Series
Heat Output 20-35kW
HV Voltage Range DC 350-1100V
LV Voltage DC 24V nominal
Efficiency > 95 %
Controllability Steps 100W
Dimensions 365*313*123mm
Weight 10kg
Temperature Range for Heating -40 to 90 ℃
Temperature Range for Ambient -40 to 125 ℃
Communication CAN or LIN2.1
Dielectric Strength 3500 V (DC)
IP Protection Class IP 67
EMC ECE R10 Rev. 5
Insulation Resistance 500MΩ
Service Life 10 years or 10,000 heating hours







350-1100V Hv Ptc Heater 20-35KW Voltage Range Heater 1

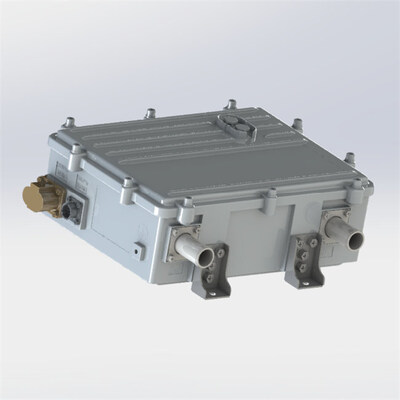

Product Introduction



Discover the paradigm shift in electric vehicle technology with the introduction of the QB01 Coolant Heater Series High Voltage Heater, a groundbreaking innovation specially engineered for Plug-in Hybrid Electric Vehicles (PHEV) and Battery Electric Vehicles (BEV). This powerhouse of a heater can convert DC electric power into heat with virtually no loss, offering a comprehensive, zero-emission heating solution for the modern electric vehicle's interior.



Features



Exceptional Thermal Efficiency: Experience almost 100% thermal efficiency conversion, a milestone in the electric vehicle industry.



Reliable Heat Output: Enjoy consistent heat output, independent of coolant medium temperature and operating voltage, ensuring a uniform heating experience throughout your journey.



Robust Safety Architecture: Featuring a complex yet highly efficient safety architecture, offering the highest level of protection throughout its operation.



Global Standards Compliance: Fully compliant with international vehicle standards, integrating seamlessly into modern vehicle systems for a hassle-free experience.



Zero Initial Surge or Peak Currents: Unlike other heaters, it encounters no initial surge or peak currents, guaranteeing a smooth and stable operational curve.



Rapid Heat Transfer: Boasting quick and direct heat transfer mechanisms, ensuring your vehicle reaches the desired temperature in record time.





350-1100V Hv Ptc Heater 20-35KW Voltage Range Heater 2



Applications





The QB01 Coolant Heater Series emerges as the leading heat source for the thermal management of electric vehicle batteries, distinguishing itself especially in the sector of battery-swapping heavy trucks. In an impressively short time span, it elevates battery temperatures from sub-zero ambient levels to an optimal charge-discharge temperature of 20°C, establishing itself as a pinnacle of efficiency and speed.





350-1100V Hv Ptc Heater 20-35KW Voltage Range Heater 3
