High Voltage Hv Battery Heater Revolutionizing E-Bus Comfort

Product Details

Place of Origin: CHINA

Brand Name: EVPTC

Certification: CE

Model Number: QB01

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: $1500-2000 per set

Packaging Details: carton or wooden case packing

Delivery Time: 15-20days

Payment Terms: T/T

Supply Ability: 100 sets per 2 weeks

Get Best Price
Product Details
High Light:

High Voltage Hv Battery Heater

,

Hv Battery Heater E-Bus

,

battery hv heater

Heat Output:
20-35KW
HV Voltage Range:
DC 250-1100V
LV Voltage:
DC 24V Nominal
Efficiency:
> 95 %
Controllability Steps:
1%
Dimensions:
365*313*123mm
Weight:
9kg
Temperature Range For Heating:
-40 To 90 ℃
Temperature Range For Ambient:
-40 To 125 ℃
Communication:
CAN OR LIN
Dielectric Strength:
3500 V (DC)
IP Protection Class:
IP 67
EMC:
ECE R10 Rev. 5
Insulation Resistance:
>500MΩ
Service Life:
10 Years Or 10,000 Heating Hours
Heat Output:
20-35KW
HV Voltage Range:
DC 250-1100V
LV Voltage:
DC 24V Nominal
Efficiency:
> 95 %
Controllability Steps:
1%
Dimensions:
365*313*123mm
Weight:
9kg
Temperature Range For Heating:
-40 To 90 ℃
Temperature Range For Ambient:
-40 To 125 ℃
Communication:
CAN OR LIN
Dielectric Strength:
3500 V (DC)
IP Protection Class:
IP 67
EMC:
ECE R10 Rev. 5
Insulation Resistance:
>500MΩ
Service Life:
10 Years Or 10,000 Heating Hours
Product Description

 QB01 Series: Revolutionizing E-Bus Comfort with High Voltage Excellence



  1. The heater is compatible with various EV battery chemistries, including lithium-ion, nickel-metal hydride, and solid-state batteries.
  2. It is designed for easy installation and maintenance, with accessible components and user-friendly interfaces.
  3. The EV Battery Heater is engineered for fast heat-up time, quickly reaching the desired battery temperature for optimal performance.
  4. It is equipped with advanced control features, allowing users to monitor and adjust the battery temperature as needed.



Specification:

HVCH QB01 Series
Heat Output 20-35kW
HV Voltage Range DC 350-1100V
LV Voltage DC 24V nominal
Efficiency > 95 %
Controllability Steps 100W
Dimensions 365*313*123mm
Weight 10kg
Temperature Range for Heating -40 to 90 ℃
Temperature Range for Ambient -40 to 125 ℃
Communication CAN or LIN2.1
Dielectric Strength 3500 V (DC)
IP Protection Class IP 67
EMC ECE R10 Rev. 5
Insulation Resistance 500MΩ
Service Life 10 years or 10,000 heating hours

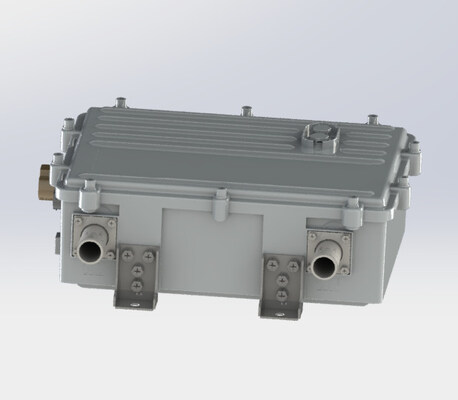

High Voltage Hv Battery Heater Revolutionizing E-Bus Comfort 0








Introduction



Embarking on a journey towards electrification, the QB01 Series is poised as a leader in delivering premier heating solutions for sophisticated electric buses and commercial fleets. Living up to the mantra of the "HIGH VOLTAGE FUTURE," this heater symbolizes the epitome of rapid, balanced, and dependable heating, setting a new benchmark in energy efficiency and technological innovation.

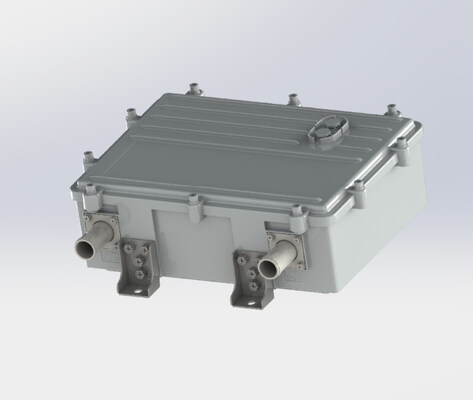

High Voltage Hv Battery Heater Revolutionizing E-Bus Comfort 1



Specification Highlights



Unwavering Power: Unleashing a steadfast thermal output of 30 kW, the QB01 Series adeptly caters to an electric power range from 600V to 1100V, establishing itself as a reliable choice in various voltage scenarios.



Adaptive Control: Equipped with an integrated control unit, the QB01 Series allows for seamless adjustment of heat output. This adaptability is facilitated either by manipulating the water outlet temperature or by establishing boundaries on power consumption and maximum heat output, offering a tailored heating experience.



Advanced Communication: Elevating its prowess, the QB01 Series integrates smartly with vehicle systems, not just as a heater but as a smart device transmitting critical operation data through a savvy diagnostic function, enhancing vehicle safety and maintenance protocols.

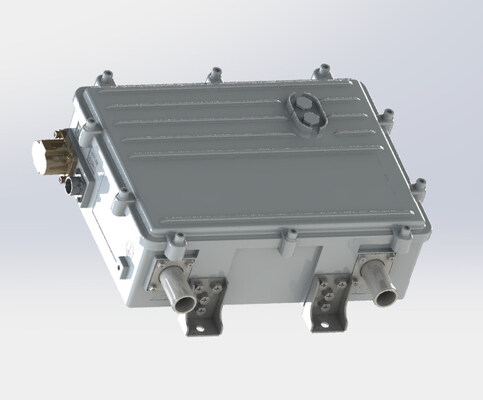

High Voltage Hv Battery Heater Revolutionizing E-Bus Comfort 2



Technical Specifications



Optimized Heating: Beyond its core, the QB01 Series exhibits remarkable 35 kW heating capabilities, adjustable to cater to a myriad of requirements, ensuring a comfortably warm internal environment in any weather condition.



Broad Voltage Spectrum: This series triumphs with its ability to deliver full heating capacity over a wide voltage range, from 450 V DC to 875 V DC, peaking up to 1150 V DC without a dip in efficiency, setting a new industry benchmark.



Connectivity: The QB01 demonstrates future integration capabilities, seamlessly linking with CAN communication channels, facilitating easy and effective communication within the vehicle system.



Eco-friendly Attributes



Emission-Free Operation: Steadfast in fostering a green future, the QB01 Series guarantees 100% emission-free heating, contributing to the preservation of our environment.

Quiet Functionality: Designed to operate with minimal noise, the QB01 Series eliminates the nuisance of disruptive exhaust fumes, offering passengers a tranquil and comfortable environment.

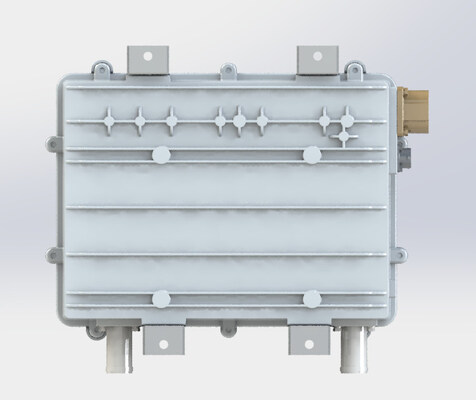

High Voltage Hv Battery Heater Revolutionizing E-Bus Comfort 3



Safety & Reliability



Stepping into the QB01 Series is stepping into a haven of safety and reliability. A multi-tiered safety blueprint is at the heart of the QB01 Series, promising steadfast heating delivery without compromising on safety standards, making every journey a safe and pleasant experience.



Why Choose QB01 Series?



Power & Consistency: Catering to the comfort of the driver, passengers, and the efficiency of the battery system, the QB01 Series commits to swift and consistent heating, creating a harmonious balance between power and consistency.



Peak Efficiency: The QB01 Series transcends traditional boundaries, not just delivering heat but delivering it at optimal efficiency, ensuring top-notch performance with each usage.
