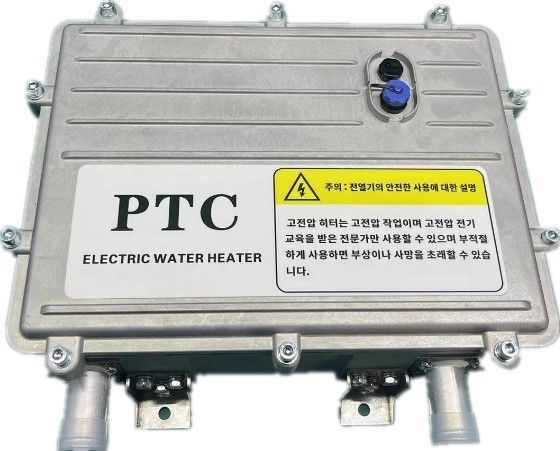

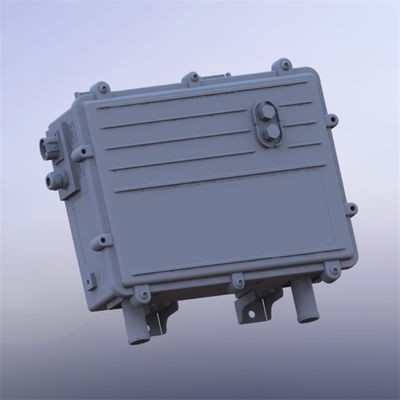

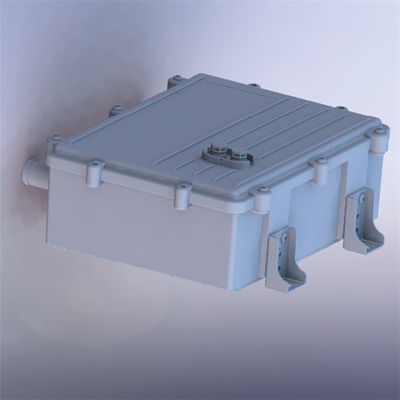

Chevy Volt Battery Coolant Heater Electric For Large Vehicles

Chevy Volt Battery Coolant Heater Electric For Large Vehicles
Chevy Volt Battery Coolant Heater Electric For Large Vehicles Chevy Volt Battery Coolant Heater Electric For Large Vehicles Chevy Volt Battery Coolant Heater Electric For Large Vehicles Chevy Volt Battery Coolant Heater Electric For Large Vehicles Chevy Volt Battery Coolant Heater Electric For Large Vehicles

Large Image :  Chevy Volt Battery Coolant Heater Electric For Large Vehicles

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1200-1500 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

Chevy Volt Battery Coolant Heater Electric For Large Vehicles

Description
Heat Output: 15-25KW HV Voltage Range: DC 250-870V
LV Voltage: DC 24V Nominal Efficiency: > 95 %
Controllability Steps: 1% Dimensions: 365*313*123mm
Weight: 9kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Communication: CAN OR LIN
Dielectric Strength: 3500 V (DC) IP Protection Class: IP 67
EMC: ECE R10 Rev. 5 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

chevy volt battery coolant heater

,

coolant heater electric battery

,

Battery Coolant Heater Electric

HVCH QA01 Coolant Heater Series: The Optimal Warming Solution for Large Vehicles



  1. The heater is designed to operate reliably in extreme temperature conditions, ensuring consistent battery heating performance in various climates.
  2. It provides efficient battery heating, minimizing energy waste and optimizing the overall energy efficiency of electric vehicles.
  3. The EV Battery Heater is compatible with different power sources, including the vehicle's electrical system or an external power supply.

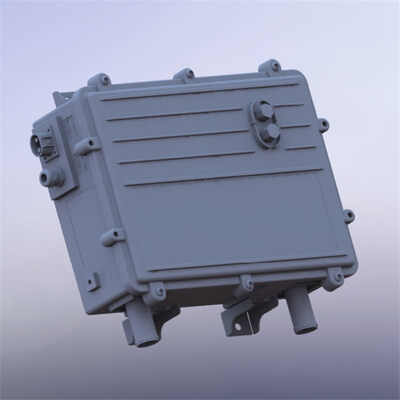

Chevy Volt Battery Coolant Heater Electric For Large Vehicles 0





Product Introduction



The HVCH QA01 Series is not just an interior heater; it heralds a revolution in the internal heating systems for large vehicles. Precision-engineered, it can seamlessly adjust performance as required, delivering stable and reliable heating across various environments.



This series employs an integrated control unit to offer infinitely variable heat output control. It operates optimally, either by regulating the water outlet temperature or limiting the maximum heat output or power consumption. Its intelligent diagnostic function transmits key operating data to the vehicle system, positioning it as a frontrunner in the industry.







Specification:





HVCH QA01 Series
Heat Output     15-25kW
HV Voltage Range     DC 250-870V

LV Voltage

  DC 24V nominal
Efficiency     > 95 %
Controllability Steps     100W
Dimensions     365*313*123mm
Weight     9kg
Temperature Range for Heating     -40 to 90 ℃
Temperature Range for Ambient     -40 to 125 ℃
Communication     CAN or LIN2.1
Dielectric Strength     3500 V (DC)
IP Protection Class     IP 67
EMC     ECE R10 Rev. 5
Insulation Resistance     >500MΩ
Service Life     10 years or 10,000 heating hours

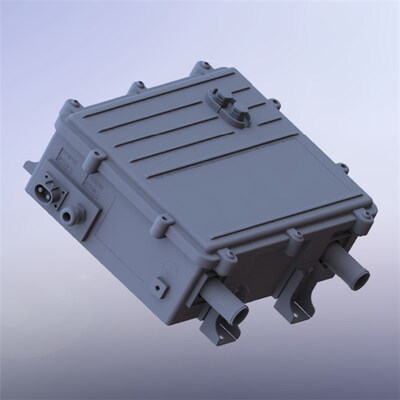

Chevy Volt Battery Coolant Heater Electric For Large Vehicles 1







Chevy Volt Battery Coolant Heater Electric For Large Vehicles 2







Product Features:





Ø Superior Water Resistance

In actual operation, whether it is muddy roads, wet rainy days, or extended usage in high temperatures, the HVCH QA01 series showcases its exceptional water-resistant properties. IP 67 water and dust proof certifications can be furnished.

Ø Stepless Performance Regulation

Either by modulating the water outlet temperature or curtailing the utmost heat output or power consumption, our high-voltage coolant heater has been adopted in thousands of vehicles for three years, garnering positive feedback from customers.

Ø Dependable Dual Self-Protection System

The dual protection system, encompassing mechanical and electronic safeguards, functions to shut the module down during a short circuit, overload, or over-temperature conditions. Additionally, we have incorporated high-voltage relays and current fuses in the high-voltage circuit.

Ø Complete Separation of Water and Electricity

Water and electricity are wholly isolated. Unlike other manufacturers, we have adeptly resolved the contradiction between heat transmission efficiency and the insulation requirement of DC 3500 V. This technical breakthrough facilitated the mass production of our 870V (nominal voltage) products, extensively used in heavy dump trucks in 2021.

Ø PTC Thermistor Heater with Self-Controlled Constant Temperature

The PTC water coolant heater embodies all the advantages of PTC heating technology. Thanks to the PTC effect, the heating elements dynamically adapt their power output without surpassing a designated maximum temperature. This assures high operational reliability and energy efficiency without the need for additional switching elements.











Chevy Volt Battery Coolant Heater Electric For Large Vehicles 3









Application:







To guarantee a safe journey even in challenging climatic conditions, vehicles must be prepared to operate right from the start. Adequate power ranging from 15 to 25 kW can cater to the heating, defrosting, and battery heating needs of large vehicles.







        Chevy Volt Battery Coolant Heater Electric For Large Vehicles 4









Our Service



We can supply you directly, eliminating agent fees and reducing your cost;



Large orders come with substantial discounts, and trial orders are also welcome;



Respond to your inquiry within 24 hours;



Price advantages: reasonable and competitive;



As manufacturers, we possess robust strength;



We strive to meet your demands to the fullest extent.



Competitive Advantage



Safety and reliability



OEM solutions tailored to your design



Stable performance



Waterproof, excellent insulating properties



Outstanding dry burning resistance



High Voltage, High Power, High Intelligence, High Reliability
