Name: High Voltage Battery Heater for Electric Bus and EV Battery Thermal Management | Advanced PTC Heating Solution
Brand: EVLINK Electronic Co.,Ltd
SKU: Q-Series
Price: 1500 USD
Availability: InStock

Brand Name:	EVLINK
Model Number:	Q-Series
MOQ:	1 SET
Price:	$1500 per set
Payment Terms:	T/T
Supply Ability:	100 sets per 2 weeks

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

E-Mark、CE

Rated Voltage:

Customizable

Operating Voltage Range:

400V-1100V

Power Output:

15-35kW

Operating Temperature:

-40ºC~85ºC

Protection Rating:

IP67

Application:

Battery / Cabin Heating / RBS

Packaging Details:

Carton / Wooden Case

Supply Ability:

100 sets per 2 weeks

Highlight:

High Voltage Hv Battery Heater

Hv Battery Heater E-Bus

battery hv heater

Product Description

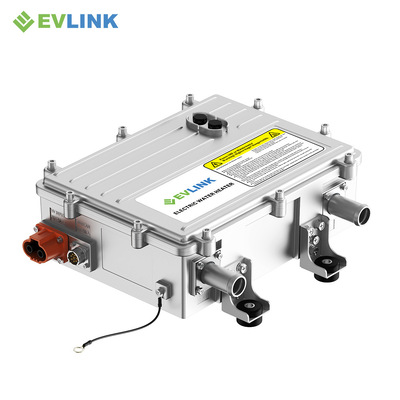

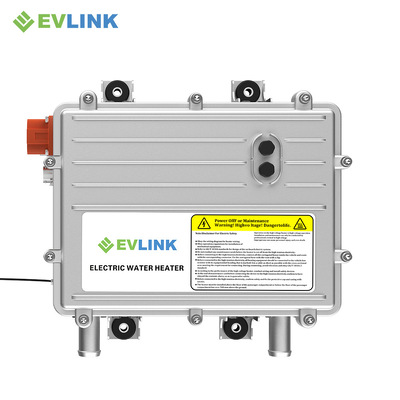

This 15–35 kW high-voltage PTC coolant heater is designed for circulating-coolant heating in electric vehicle thermal management systems. With a 400–1100 V DC operating range, CAN communication, and an enable-signal interface, it supports battery and cabin heating across multiple vehicle platforms. Correct configuration depends on system voltage, heating demand, coolant operating conditions, available installation space, and control requirements.

Additional Technical Specifications

EMC	Complies with ISO 11452 Class 3 requirements
Insulation Resistance	≥100 MΩ at DC 1000V, high-voltage section
High-Voltage Protection	Overvoltage, undervoltage, overcurrent, short-circuit and overtemperature protection

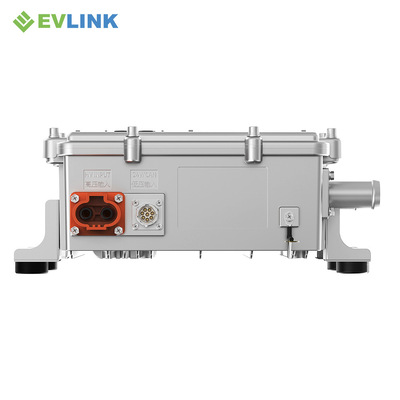

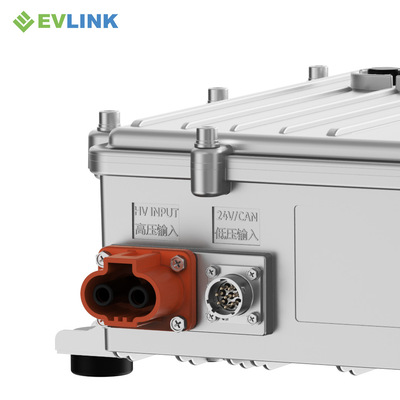

Communication Method	CAN communication, enable signal communication
Product Size	346 × 268 × 123 mm
Product Weight	12 kg

Final specifications and protection thresholds should be confirmed according to the selected configuration and approved technical agreement.

Product Description

Modern electric vehicles require coordinated thermal management across multiple subsystems. This 15–35 kW high-voltage PTC coolant heater is designed to serve as an electrically powered heat source within compatible liquid-cooling architectures.

With a 400–1100 V DC operating range, the heater can be evaluated for vehicle platforms with different high-voltage requirements. Its CAN communication and enable-signal interface provide connection options for integration with vehicle-level control systems.

Rather than operating as an isolated heating component, the heater should be selected as part of the complete thermal system. Electrical supply characteristics, coolant circulation, heat-exchanger capacity and supervisory control logic all influence the final system configuration.

Applications

High Voltage Battery Heater for Electric Bus and EV Battery Thermal Management | Advanced PTC Heating Solution

Battery Thermal Conditioning

The high-voltage coolant heater provides supplemental heat to liquid-cooled battery systems when additional thermal input is required. Its integration helps support battery temperature management, with heating requirements determined by battery specifications, ambient conditions and the vehicle's thermal control logic.

Electric Vehicle Interior Heating

In coolant-based HVAC systems, the heater supplies thermal energy to the circulating fluid, which transfers heat to the cabin through an air-side heat exchanger. System performance depends on the heating capacity, coolant circulation and HVAC configuration.

Electrified Commercial Vehicle Applications

The heater can be integrated into compatible thermal management systems for electric buses, commercial trucks and construction vehicles. Engineers should evaluate vehicle voltage, thermal demand, coolant compatibility and installation requirements before selecting a suitable configuration.

Frequently Asked Questions

1.What does a high voltage PTC coolant heater do?

It uses electrical power from the vehicle’s high-voltage system to heat circulating coolant. The coolant can then transfer heat to the battery system, cabin heat exchanger or another approved thermal circuit.

2.Is the 15–35kW heater suitable for every electric vehicle?

No. It is intended for projects with relatively high heating demand. The correct configuration depends on operating voltage, required heat output, coolant conditions, installation space and control requirements.

3.Can one heater support both battery and cabin heating?

It may support either application when the vehicle coolant architecture and control strategy allow it. Some vehicles use separate circuits, while others use valves or a shared thermal loop.

4.What information is required to select a heater?

Please provide the vehicle type, operating-voltage range, required heating power, coolant type, expected flow rate, inlet-temperature range, installation space, connector requirements and CAN communication requirements.

5.Can the mounting, connectors or control interface be customized?

Project-specific requirements can be evaluated after the installation drawing, packaging space and electrical interface are provided. The final configuration should be confirmed in the approved drawing and technical agreement.

Request a Product Recommendation

Send us your voltage range, target heating power, coolant conditions, flow rate, installation drawing, control requirements and project quantity. EVLINK will review the information and recommend a suitable configuration for technical confirmation and quotation.
