Electric Coolant Heater HVCH Liquid Heater Green Heating For Large Vehicles

Certification
China Suzhou EVLINK Electronic Technology Co.,Ltd certification
I'm Online Chat Now

Electric Coolant Heater HVCH Liquid Heater Green Heating For Large Vehicles

Electric Coolant Heater HVCH Liquid Heater Green Heating For Large Vehicles
Electric Coolant Heater HVCH Liquid Heater Green Heating For Large Vehicles Electric Coolant Heater HVCH Liquid Heater Green Heating For Large Vehicles Electric Coolant Heater HVCH Liquid Heater Green Heating For Large Vehicles

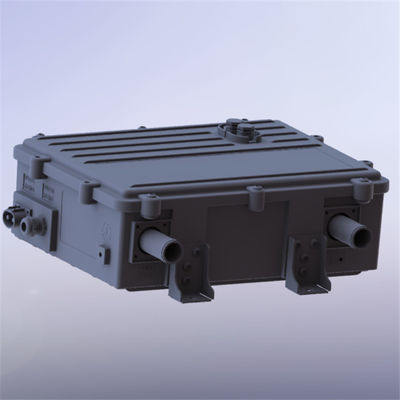

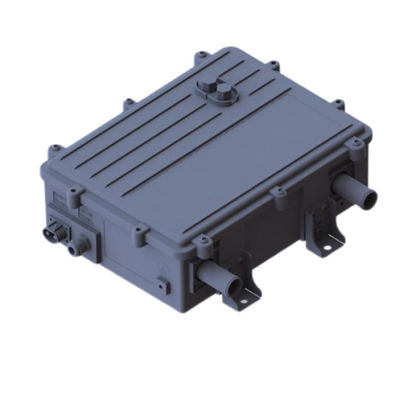

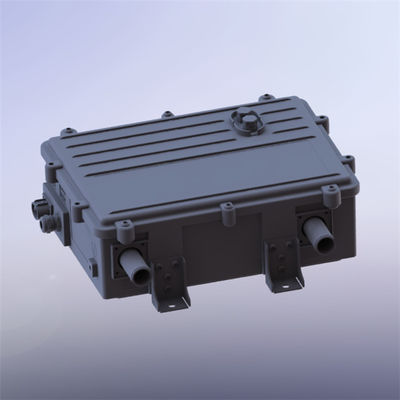

Large Image :  Electric Coolant Heater HVCH Liquid Heater Green Heating For Large Vehicles

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1200-1500 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

Electric Coolant Heater HVCH Liquid Heater Green Heating For Large Vehicles

Description
Heat Output: 15-25KW HV Voltage Range: DC 250-870V
LV Voltage: DC 24V Nominal Efficiency: > 95 %
Controllability Steps: 1% Dimensions: 365*313*123mm
Weight: 9kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Communication: CAN OR LIN
Dielectric Strength: 3500 V (DC) IP Protection Class: IP 67
EMC: ECE R10 Rev. 5 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

Electric Coolant Heater

,

Coolant Heater HVCH

,

Vehicles Battery Heater

HVCH QA01 Liquid heater Series: The Green Heating Solution for Large Vehicles



  1. The heater operates silently and without vibration, ensuring a quiet and comfortable driving experience for EV occupants.
  2. It is constructed using high-quality materials, ensuring durability and long-term reliability even in demanding EV applications.
  3. The EV Battery Heater is resistant to corrosion and chemical degradation, providing a long service life and reliable performance.
  4. It offers efficient heat transfer and distribution, ensuring uniform battery temperature and effective battery heating.

Electric Coolant Heater HVCH Liquid Heater Green Heating For Large Vehicles 0







Product Introduction



The HVCH QA01 Liquid heate Series is a bespoke interior heater, fine-tuned to modulate performance seamlessly, making it an essential fixture for large vehicles. Designed with precision and excellence, this series has evolved to be a trusted heating solution in the modern automotive industry.







Specification:







HVCH QA01 Liquid Heater Series
Heat Output     15-25kW
HV Voltage Range     DC 250-870V

LV Voltage

  DC 24V nominal
Efficiency     > 95 %
Controllability Steps     100W
Dimensions     365*313*123mm
Weight     9kg
Temperature Range for Heating     -40 to 90 ℃
Temperature Range for Ambient     -40 to 125 ℃
Communication     CAN or LIN2.1
Dielectric Strength     3500 V (DC)
IP Protection Class     IP 67
EMC     ECE R10 Rev. 5
Insulation Resistance     >500MΩ
Service Life     10 years or 10,000 heating hours











Electric Coolant Heater HVCH Liquid Heater Green Heating For Large Vehicles 1













Product Features:







Ø Superior Water Resistance



Whether navigating through muddy terrains or enduring prolonged exposure to wet rainy conditions and high temperatures, the HVCH QA01 series demonstrates exceptional water resistance. Its IP67 water and dust proof certifications attest to the product’s long-term reliability and durability.



Ø Stepless Performance Regulation



By manipulating the water outlet temperature or constraining the peak heat output or power usage, this high-voltage coolant heater offers stepless regulation performance. Verified over three years of real-world applications, this product has been integrated into thousands of vehicles, earning accolades from satisfied customers.



Ø Reliable Dual Self-Protection System



This dual protection system, encompassing mechanical and electronic safeguards, acts proactively to shut down the module in the face of short circuits, overloads, or over-temperature conditions. Additionally, we have incorporated high voltage relays and current fuses in the high-voltage circuit, furnishing extra layers of safety.



Ø Complete Separation of Water and Electricity



We have adeptly resolved the contradiction between heat transfer efficiency and the insulation requirements of DC 3500 V, achieving complete separation of water and electricity. This technological breakthrough has facilitated the mass production and deployment of our 870V (nominal voltage) products in heavy dump trucks since 2021.



Ø PTC Thermistor Heater with Self-regulated Constant Temperature



Capitalizing on the advantages of PTC heating technology, our PTC water coolant heater dynamically adjusts its power output, avoiding exceeding a predetermined maximum temperature. This feature promises high operational reliability and energy efficiency without necessitating additional switching components.







Electric Coolant Heater HVCH Liquid Heater Green Heating For Large Vehicles 2





Application:





To assure a safe journey amidst challenging climate conditions, vehicles need to be operational right from the onset. With a substantial power output ranging from 15 to 25 kW, it meets the diverse needs of large vehicles including heating, defrosting, and battery heating. We also offer customization services, allowing adjustments based on customer specifications concerning voltage, power, and more.







Electric Coolant Heater HVCH Liquid Heater Green Heating For Large Vehicles 3





Our Service



Direct supply, saving agent fees and reducing your cost;



Big orders come with significant discounts, and trial orders are also welcome;



Responses to your inquiries within 24 hours;



Competitive and reasonable pricing;



As manufacturers, we boast substantial strength;



Committed to meeting your demands to the fullest extent.









Competitive Advantage





Safety and reliability;



OEM services for your unique designs;



Stable performance;



Excellent water-proofing and insulation properties;



Remarkable resistance to dry burning;



High Voltage, High Power, High Intelligence, High Reliability.
