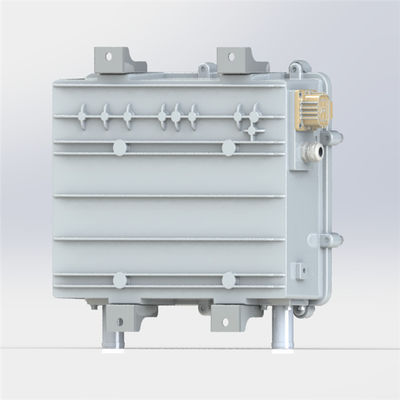

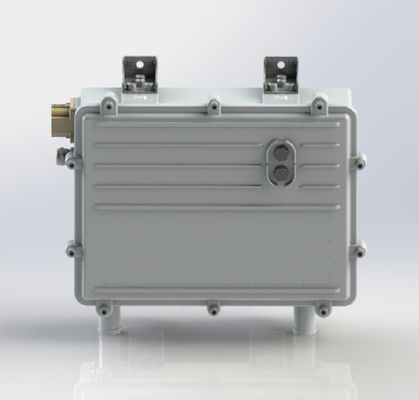

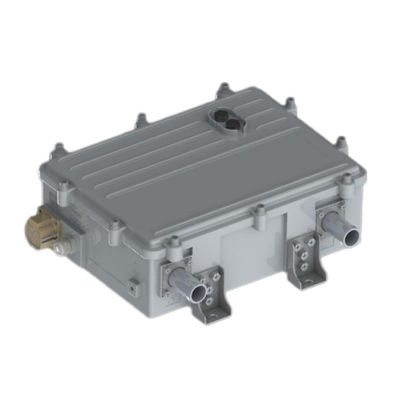

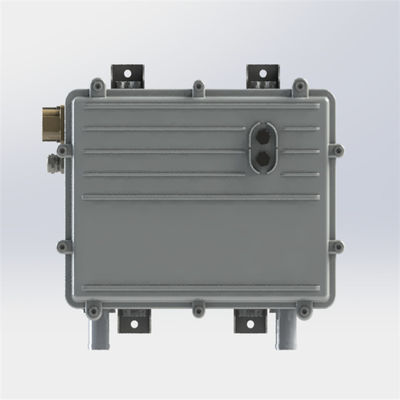

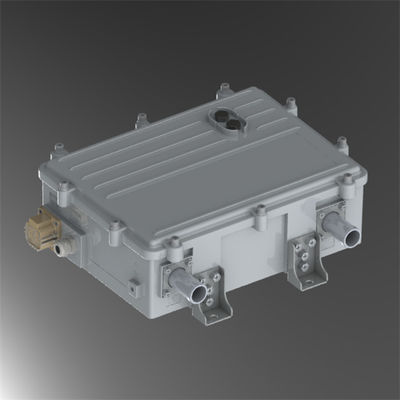

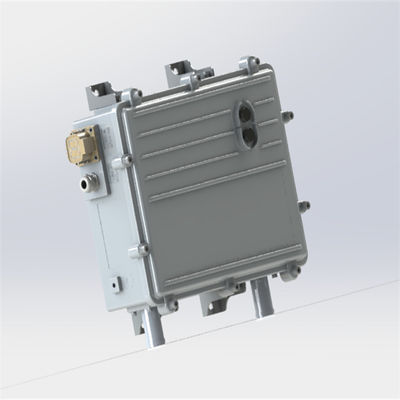

Electric Vehicles Ev Battery Heater High Voltage Water Heating Solution

Electric Vehicles Ev Battery Heater High Voltage Water Heating Solution
Electric Vehicles Ev Battery Heater High Voltage Water Heating Solution Electric Vehicles Ev Battery Heater High Voltage Water Heating Solution Electric Vehicles Ev Battery Heater High Voltage Water Heating Solution Electric Vehicles Ev Battery Heater High Voltage Water Heating Solution Electric Vehicles Ev Battery Heater High Voltage Water Heating Solution Electric Vehicles Ev Battery Heater High Voltage Water Heating Solution

Large Image :  Electric Vehicles Ev Battery Heater High Voltage Water Heating Solution

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QC01
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1000-1500 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

Electric Vehicles Ev Battery Heater High Voltage Water Heating Solution

Description
Heat Output: 15-35KW HV Voltage Range: DC 350-900V
LV Voltage: DC 24V Nominal Efficiency: > 95 %
Controllability Steps: 1% Dimensions: 365*313*123mm
Weight: 9kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Communication: CAN OR LIN
Dielectric Strength: 3500 V (DC) IP Protection Class: IP 67
EMC: ECE R10 Rev. 5 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

Electric Vehicles Ev Battery Heater

,

Ev Battery Heater High Voltage

,

Ev High Voltage Heater

QC-Liquid heater Series: EVLINK's Efficient High-Voltage Water Heating Solution



  1. It is equipped with built-in safety features, such as overheat protection and fault detection, to ensure safe operation in EV battery systems.
  2. Our EV Battery Heater is energy-efficient, minimizing power consumption and maximizing the driving range of electric vehicles.
  3. It offers customizable heating settings, allowing users to adjust the battery temperature according to specific requirements or climate conditions.

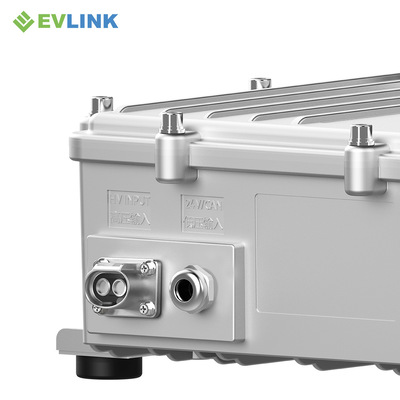

Electric Vehicles Ev Battery Heater High Voltage Water Heating Solution 0





EVLINK's QC Series high-voltage water heater sets a new benchmark in the field of temperature management for electric vehicles. Integrating advanced heating technology with innovative design, it ensures fast, consistent, and reliable heat provision for both the battery and the passenger compartment.








Specification:


HVCH QC01 Series
Heat Output     15-35kW
HV Voltage Range     DC 350-900V

LV Voltage

  DC 24V nominal
Efficiency     > 95 %
Controllability Steps     100W
Dimensions     365*313*123mm
Weight     10kg
Temperature Range for Heating     -40 to 90 ℃
Temperature Range for Ambient     -40 to 125 ℃
Communication     CAN or LIN2.1
Dielectric Strength     3500 V (DC)
IP Protection Class     IP 67
EMC     ECE R10 Rev. 5
Insulation Resistance     >500MΩ
Service Life     10 years or 10,000 heating hours

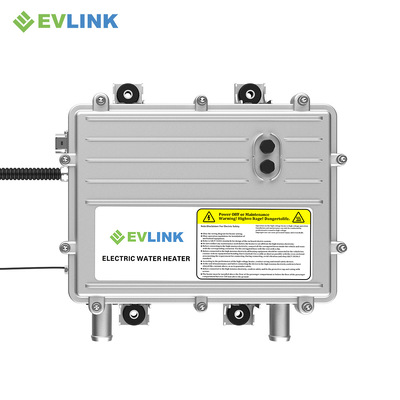

Electric Vehicles Ev Battery Heater High Voltage Water Heating Solution 1




Product Features:







Combination of electric heating and coolant for rapid and efficient heat transfer.



Lightweight aluminum casing with a compact and stylish design.



Height below 180MM, making installation easy and versatile.



Incorporates high-quality relays for enhanced safety.



Brushless axial fan design ensures low noise, high efficiency, and a longer lifespan







Electric Vehicles Ev Battery Heater High Voltage Water Heating Solution 2





Application:





The QC series high-voltage water heater offers comprehensive heating solutions for electric vehicles, construction machinery, and large mining trucks. Whether it's warm air inside the vehicle or battery preheating, the QC series guarantees outstanding performance even under extreme climatic conditions.




Electric Vehicles Ev Battery Heater High Voltage Water Heating Solution 3




Our Services:





Direct supply, eliminating intermediary fees.

Significant discounts for bulk orders; trial orders are also welcome.

Responses to all inquiries within 24 hours.

Reasonable and competitive pricing.

We are a manufacturer with ample production capacity.

Committed to meeting customer needs to the fullest.





Competitive Advantage:



Designed with safety and reliability in mind.

Supports OEM customization.

Stable and reliable performance.

Waterproof with excellent insulation properties.

Superior dry heat resistance.

High voltage, high power, intelligent, and highly reliable.
