Large Scale Vehicle Coolant Heater High Voltage Liquid DC

Certification
China Suzhou EVLINK Electronic Technology Co.,Ltd certification
I'm Online Chat Now

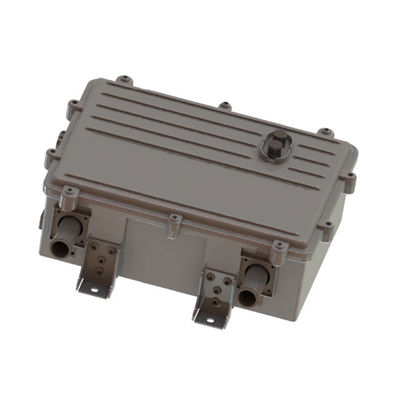

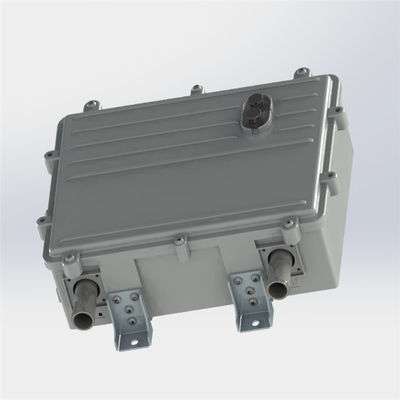

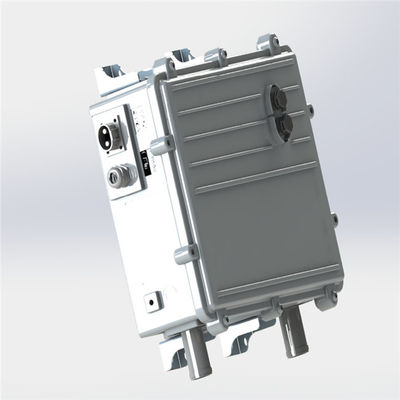

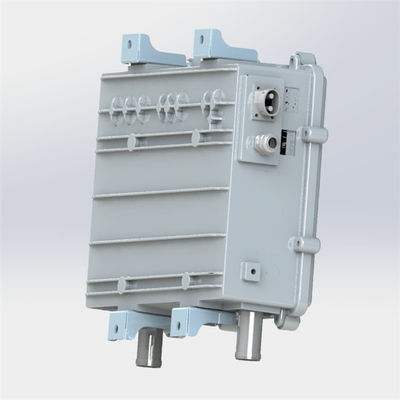

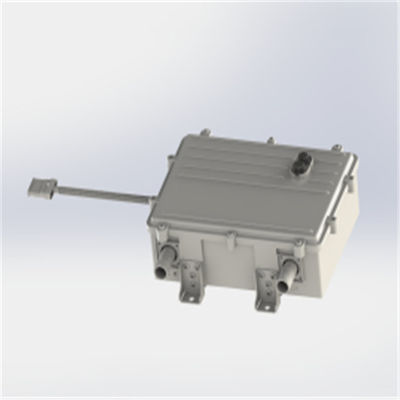

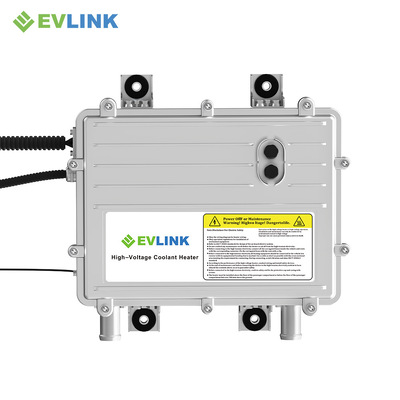

Large Scale Vehicle Coolant Heater High Voltage Liquid DC

Large Scale Vehicle Coolant Heater High Voltage Liquid DC
Large Scale Vehicle Coolant Heater High Voltage Liquid DC Large Scale Vehicle Coolant Heater High Voltage Liquid DC Large Scale Vehicle Coolant Heater High Voltage Liquid DC Large Scale Vehicle Coolant Heater High Voltage Liquid DC Large Scale Vehicle Coolant Heater High Voltage Liquid DC

Large Image :  Large Scale Vehicle Coolant Heater High Voltage Liquid DC

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1200-1500 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

Large Scale Vehicle Coolant Heater High Voltage Liquid DC

Description
Heat Output: 15-25KW HV Voltage Range: DC 250-870V
LV Voltage: DC 24V Nominal Efficiency: > 95 %
Controllability Steps: 1% Dimensions: 365*313*123mm
Weight: 9kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Communication: CAN OR LIN
Dielectric Strength: 3500 V (DC) IP Protection Class: IP 67
EMC: ECE R10 Rev. 5 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

electric vehicle coolant heater

,

vehicle coolant heater High Voltage

,

electric coolant heater

HVCH QA01 Series: The Apex of DC High Voltage Liquid Coolant Heater for Large-Scale Vehicles



  1. The heater is energy-efficient, providing cost savings by minimizing energy consumption during water heating processes.
  2. It is equipped with built-in safety features, such as overheating protection and dry-run protection, to ensure safe operation and prevent damage.
  3. The PTC Water Heater is compatible with different water sources, including tap water, well water, and recirculating systems.

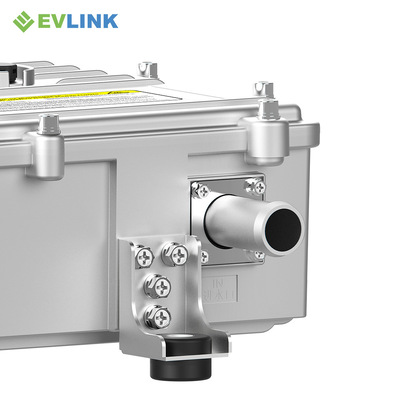

Large Scale Vehicle Coolant Heater High Voltage Liquid DC 0

In the harsh cold of winter, maintaining a warm and steady interior atmosphere in large commercial vehicles can be a daunting task. Enter the HVCH QA01 Series — a specially designed interior heater engineered to tackle this challenge head-on. Specifically developed for large-scale vehicles, this unit not only facilitates water circuit heating but also enables seamless performance regulation, promising reliable and potent heating solutions at all times.



Specification:



HVCH QA01 Series
Heat Output     15-25kW
HV Voltage Range     DC 250-870V

LV Voltage

  DC 24V nominal
Efficiency     > 95 %
Controllability Steps     100W
Dimensions     365*313*123mm
Weight     9kg
Temperature Range for Heating     -40 to 90 ℃
Temperature Range for Ambient     -40 to 125 ℃
Communication     CAN or LIN2.1
Dielectric Strength     3500 V (DC)
IP Protection Class     IP 67
EMC     ECE R10 Rev. 5
Insulation Resistance     >500MΩ
Service Life     10 years or 10,000 heating hours

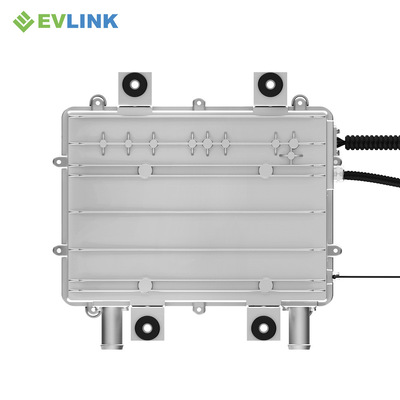

Large Scale Vehicle Coolant Heater High Voltage Liquid DC 1

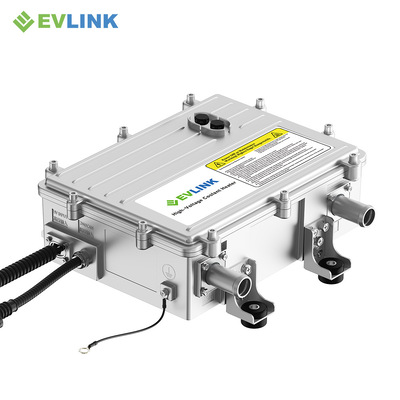

Large Scale Vehicle Coolant Heater High Voltage Liquid DC 2

Applications:

  • Enhanced Water Resistance: Capable of navigating muddy routes, withstanding heavy rains, or operating in high-temperature conditions, our high-voltage coolant heater proves to be resilient. Verification through IP 67 water and dustproof reports is available.
  • Flexible Performance: The unit expertly controls water outlet temperature while also setting limits on maximum heat output or power usage. Its exceptional quality has earned it installations in thousands of vehicles over three years, garnering consistent praise from clients.
  • Dual Defense System: Equipped with a two-tier protection system that incorporates both mechanical and electronic elements, acting promptly to shut down during short circuits, overloads, or high-temperature situations. High-voltage relays and current fuses have been included in the electrical circuit to enhance safety measures.
  • Holistic Insulation: A groundbreaking design that achieves a complete segregation between water and electrical components, resolving the conflict between heat transfer efficiency and DC 3500 V insulation needs. This innovative approach facilitated the mass production and utilization of our 870V nominal voltage products in heavy dump trucks since 2021.
  • Revolutionary PTC Technology: Incorporating the merits of PTC heating technology, where heating elements autonomously modulate their power intake, never crossing a pre-defined maximum temperature limit. This promises elevated operational dependability and energy efficiency without the need for additional switching elements.
  • Large Scale Vehicle Coolant Heater High Voltage Liquid DC 3

Applications:

In the face of freezing mornings or biting winter nights, large vehicles such as buses and trucks require adept heating systems. The HVCH QA01 Series, with its substantial power output, stands as the optimal solution. It has found extensive usage across various large vehicle sectors, notably in the northeastern and northwestern regions of China. The system’s power, ranging from 15 to 25kW, accommodates heating, defrosting, battery warming, and other vehicular necessities. Users have the option to modify power as per their requirements, and customization options for specifications like voltage and power are available.

Large Scale Vehicle Coolant Heater High Voltage Liquid DC 4

Our Services:

  • Direct Procurement: We provide direct services, cutting out intermediaries, saving agent commissions, and lowering your total costs.
  • Bulk Discounts: Enjoy substantial discounts on large orders. Trial orders are also warmly welcomed.
  • Swift Responses: We guarantee a response to your queries within a 24-hour timeframe.
  • Competitive Pricing: Our commitment is to offer premium products at reasonable and competitive prices.
  • Manufacturer’s Assurance: As manufacturers, we have the capacity and resources to fulfill all your requirements.
  • Pledge to Excellence: We prioritize your needs, striving tirelessly to meet them at every level.

Competitive Advantages:

  • Safety Assurance: Our products undergo stringent quality checks to guarantee reliable operation under various conditions.
  • Personalized Solutions: We offer OEM services, aligning our products with your unique design requirements.
  • Stable Operation: Our products are distinguished for their consistent performance, irrespective of the weather conditions.
  • All-Weather Resilience:Our products are not only waterproof but boast exceptional insulation characteristics, safeguarding them against extreme weather conditions.
  • Resistant to Dry Burning: We have crafted our products to withstand dry burning, thereby promising a longer lifespan.
  • Highly Advanced Offerings: Our heaters embody the zenith of high voltage, power, and intelligent design, ensuring supreme reliability in all conditions.
