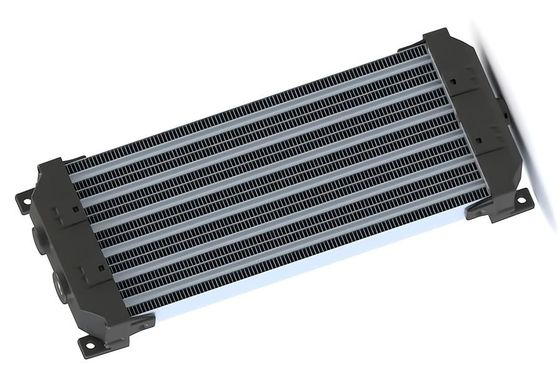

High Voltage Ptc Air Heater Automotive For Defrosting 3-5kW DC 600V

High Voltage Ptc Air Heater Automotive For Defrosting 3-5kW DC 600V
High Voltage Ptc Air Heater Automotive For Defrosting 3-5kW DC 600V High Voltage Ptc Air Heater Automotive For Defrosting 3-5kW DC 600V High Voltage Ptc Air Heater Automotive For Defrosting 3-5kW DC 600V

Large Image :  High Voltage Ptc Air Heater Automotive For Defrosting 3-5kW DC 600V

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: C
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1500-2000 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

High Voltage Ptc Air Heater Automotive For Defrosting 3-5kW DC 600V

Description
Heat Output: 2-5kW HV Voltage Range: DC 350-800V
Efficiency: > 95 % Dimensions: 365*313*123mm
Weight: 2kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Dielectric Strength: 3500 V (DC)
IP Protection Class: IP 67 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

high voltage ptc air heater

,

Ptc Air Heater Automotive

,

High Voltage Air Heater

  1.
  2. Our PTC Air Heater is an advanced heating system designed to provide efficient and reliable air heating in various applications.
  3. This innovative heater utilizes Positive Temperature Coefficient (PTC) technology to quickly and uniformly heat the surrounding air.
  4. The PTC elements in the heater offer self-regulating heating, ensuring precise temperature control without the need for additional controls or sensors.
  5.

High Voltage Ptc Air Heater Automotive For Defrosting 3-5kW DC 600V 0

HVCH QB Series is an interior heater for heating water circuits in big vehicles , it could stepless regulate performance as needed.

HVCH QB-Series could quickly, consistently,powerfully and reliably heat the vehicle interior. The compact device ensures a constantly high heat output of 25kW-35kW and allows for flexible use in a power range of 600 to 1100 Volts. HVCH QB-Series features infinitely variable heat output control by means of an integral control unit. This takes place either by regulating the water outlet temperature or by limiting the maximum heat output or power consumption. Furthermore, it is CAN-capable and transmits key operating data to the vehicle system using an intelligent diagnostic function.





Specification:



HVCH C Series
Heat Output     2-5kW
HV Voltage Range     DC 350-800V
Efficiency     > 95 %
Dimensions     365*313*123mm
Weight     2kg
Temperature Range for Heating     -40 to 90 ℃
Temperature Range for Ambient     -40 to 125 ℃
Dielectric Strength     3500 V (DC)
IP Protection Class     IP 67
Insulation Resistance     >500MΩ
Service Life     10 years or 10,000 heating hours



High Voltage Ptc Air Heater Automotive For Defrosting 3-5kW DC 600V 1

High Voltage Ptc Air Heater Automotive For Defrosting 3-5kW DC 600V 2

Product Features:



Ø Excellent Water Resistance.

During the actual operation, muddy roads and wet rainy days and long playing in high temperature, all require our high voltage coolant heater excellent waterproof performance.IP 67 Water and dust proof reports can be provided.



Ø Stepless Regulate Performance.

This takes place either by regulating the water outlet temperature or by limiting the maximum heat output or power consumption.Our High Voltage coolant heater has been equipted in thousands of vehicles for three years ,the good quality has been accecpted by the custmers.



Ø Reliable Dual Self-Protection System

Dual protection system includes mechanical protection device and electronic protection, which acts to shut the module down in reaction to a short circuit, overload, or over-temperature condition. In addition, We add the high voltage relay and current fuse in the high voltage circuit.



Ø Completely Separation of Water and Electricity

Water and electricity is completely separated.Different from other manufacturers,we solve perfectly the contradiction between the heat transmission efficiency with the Insulation requirement of DC 3500 V.Benefits from this technical improvement, our 870V (nominal voltage) products have been mass produced and used in heavy dump trucks in 2021.



Ø PTC thermistor heater with self - controlled constant temperature.

PTC water coolant heater come with all advantages of the PTC heating technology. Thanks to the PTC effect, the heating elements dynamically adjust their power without exceeding a maximum temperature. High operational reliability and energy efficiency without any additional switching elements.





High Voltage Ptc Air Heater Automotive For Defrosting 3-5kW DC 600V 3



Application:



To guarantee a safe journey even in challenging climate conditions, vehicles must be ready for operation right from the start.

Sufficient power of 25 to 35kw can meet the heating, defrosting, battery heating and other needs of large vehicles. Users can adjust the power according to the demand, control the power consumption. We also provide customized service, which can be adjusted according to customer requirements, such as voltage, power, etc



        High Voltage Ptc Air Heater Automotive For Defrosting 3-5kW DC 600V 4



Our service:



1. We can supply you directly, save the agent fees and reduce your cost;
2. Big order comes with big discount, trial orders are also welcome;
3. Reply your enquiry within 24 hours;
4. Price advantages:reasonable and competitive;
5. We are manufacturer and possess strong strength;
6. Do our utmost to meet your demands.





Competitive Advantage:


1. Safety and reliability
2. OEM for your design
3. Stable performance
4. Water-proof, excellent insulating property

5. Excellent dry burning resistance
6. High Voltage,High Power,High Intelligence,High Reliability
