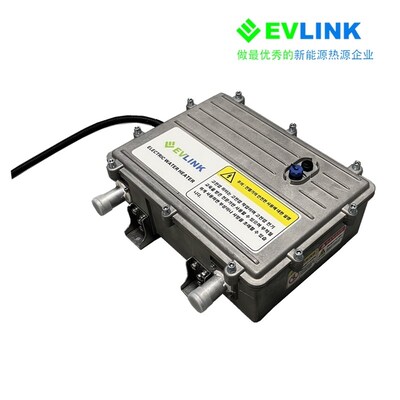

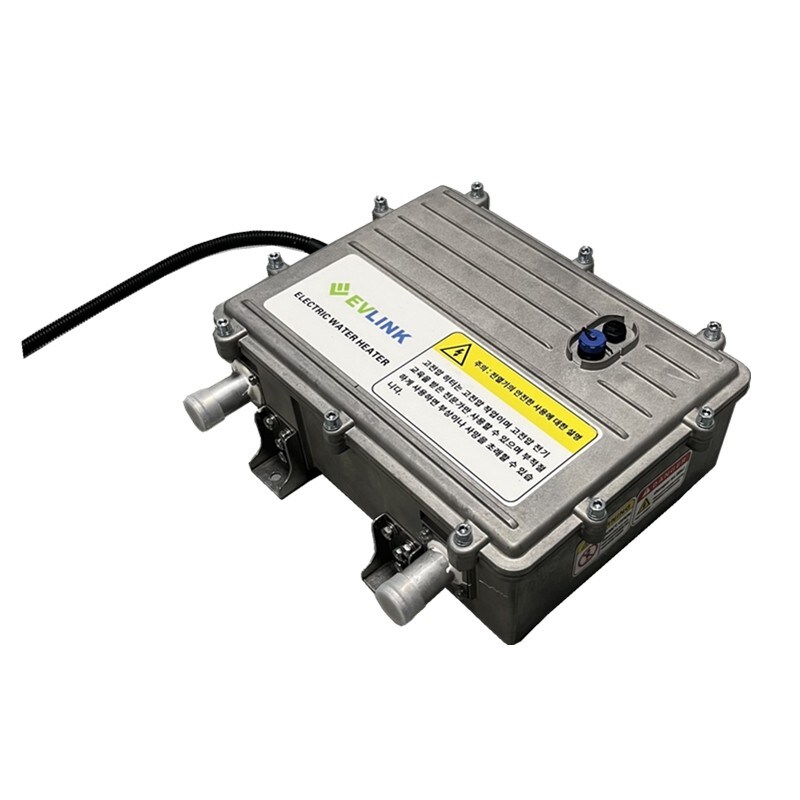

EVLINK High Voltage Coolant Heater Innovative Heating Solutions For Electric Commercial Vehicles

Product Details

Place of Origin: CHINA

Brand Name: EVPTC

Certification: CE

Model Number: QA

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: $500-1000 per set

Packaging Details: carton or wooden case packing

Delivery Time: 15-20days

Payment Terms: T/T

Supply Ability: 100 sets per 2 weeks

Get Best Price
Product Details
High Light:

EVLINK Coolant Heater

,

Innovative High Voltage Coolant Heater

,

Electric Commercial Vehicles Coolant Heater

Heat Output:
20-24KW
HV Voltage Range:
DC 250-870V
LV Voltage:
DC 24V Nominal
Efficiency:
> 95 %
Controllability Steps:
1%
Temperature Range For Heating:
-40 To 90 ℃
Temperature Range For Ambient:
-40 To 125 ℃
Communication:
CAN OR LIN
Dielectric Strength:
3500 V (DC)
IP Protection Class:
IP 67
EMC:
ECE R10 Rev. 5
Insulation Resistance:
>500MΩ
Service Life:
10 Years Or 10,000 Heating Hours
Heat Output:
20-24KW
HV Voltage Range:
DC 250-870V
LV Voltage:
DC 24V Nominal
Efficiency:
> 95 %
Controllability Steps:
1%
Temperature Range For Heating:
-40 To 90 ℃
Temperature Range For Ambient:
-40 To 125 ℃
Communication:
CAN OR LIN
Dielectric Strength:
3500 V (DC)
IP Protection Class:
IP 67
EMC:
ECE R10 Rev. 5
Insulation Resistance:
>500MΩ
Service Life:
10 Years Or 10,000 Heating Hours
Product Description

Introduction

As the global economy grows, so does energy consumption, leading to increased greenhouse gas emissions and environmental damage. Electric vehicles (EVs), especially those powered by lithium-ion batteries, aim to reduce these emissions. To function optimally, batteries must be maintained within a suitable temperature range. Heat pipe-based thermal management systems have gained attention for their efficient passive heat dissipation. These systems help keep battery packs at ideal operating temperatures, ensuring uniformity and minimizing the risk of thermal runaway. This article explores the applications and advantages of EVLINK high-voltage coolant heaters in electric commercial vehicles.

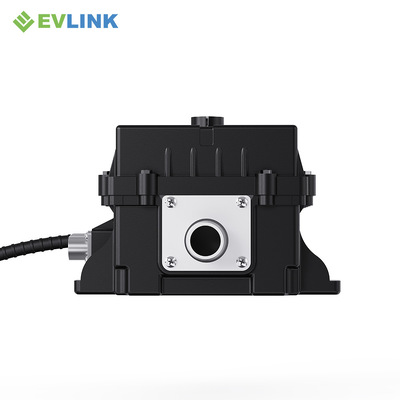

EVLINK High Voltage Coolant Heater Innovative Heating Solutions For Electric Commercial Vehicles 0



Function and Purpose of Vehicle Heating

Cabin and battery heating are essential for safe and comfortable driving. Besides maintaining cabin comfort and vehicle temperature, HVAC systems must meet regulatory requirements, such as UN R155 for cybersecurity. EVLINK is the first domestic manufacturer of high-power, high-voltage heaters to receive R155 certification. Its products excel in defrosting and dehumidification and promote core high-power, high-voltage heater technology globally.

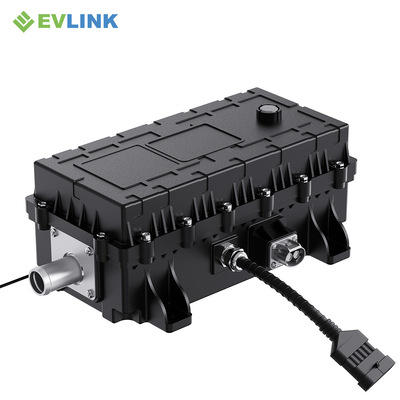

EVLINK High Voltage Coolant Heater Innovative Heating Solutions For Electric Commercial Vehicles 1



Performance Metrics

Key performance requirements for EVLINK heaters include:

  • Maximum efficiency;
  • Cost reduction and efficiency improvement;
  • Quick response and good controllability, customizable based on customer needs;
  • Compact, lightweight design with good shock resistance;
  • High reliability, with complete test reports available;
  • Sustainability and environmental friendliness.

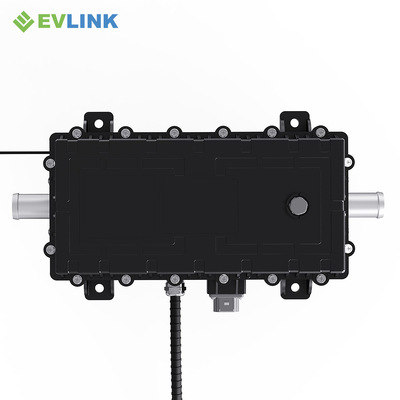

EVLINK High Voltage Coolant Heater Innovative Heating Solutions For Electric Commercial Vehicles 2





Electric Heater Concept

Before developing new high-voltage heaters, EVLINK analyzed existing technologies like wire-wound resistors and positive temperature coefficient (PTC) heating. The new heater has been optimized in four key areas:

  • Efficiency: Delivers required heat output across a wide range of coolant temperatures and voltages;
  • Quality and Size: Designed to be as small and light as possible;
  • Usability and Cost: Avoids the use of rare earth materials and lead, ensuring competitive product costs;
  • Safety: Prevents electric shock and scalding accidents.

PTC elements exhibit nonlinear characteristics, with resistance decreasing at lower temperatures and sharply increasing as temperatures rise, leading to self-limiting current. EVLINK's new high-voltage heater incorporates these properties for an efficient and safe heating solution.

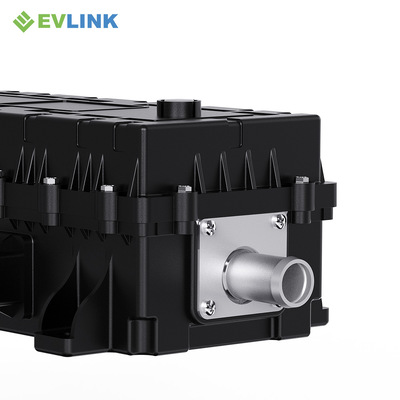

EVLINK High Voltage Coolant Heater Innovative Heating Solutions For Electric Commercial Vehicles 3



Applications and Prospects

EVLINK's 5kW-35kW high-voltage electric heaters (HVCH, PTC heaters) are suitable for various vehicles. The company is committed to advancing electric vehicle technology through innovative and high-quality products, providing optimal heating solutions for global customers and supporting green travel and sustainable development goals.

EVLINK high-voltage coolant heaters have achieved excellent performance in the domestic market and are expanding internationally, providing efficient, safe, and environmentally friendly heating solutions for global electric commercial vehicles. If you have any questions or needs regarding our products, please feel free to contact us.





Power (KW) 20kW 24kW 30kW
Rated Voltage (V) 600V 600V 600V
Working Voltage (V) 500 - 900V 500 - 900V 500 - 900V
Current (A) <33A <40A <50A
Flow Rate (L/min) 40 40 40
Weight (kg) 10kg 11kg 12kg
Interface Type CAN CAN CAN
