EVLINK Electronic Co.,Ltd 13004587611@evptc.com 86-0512-55116246
Product Details
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: K
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: $200-500 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks
Heat Output: |
8-12KW |
HV Voltage Range: |
DC 250-870V |
LV Voltage: |
DC 24V Nominal |
Efficiency: |
> 95 % |
Controllability Steps: |
1% |
Temperature Range For Heating: |
-40 To 90 ℃ |
Temperature Range For Ambient: |
-40 To 125 ℃ |
Communication: |
CAN OR LIN |
Dielectric Strength: |
3500 V (DC) |
IP Protection Class: |
IP 67 |
EMC: |
ECE R10 Rev. 5 |
Insulation Resistance: |
>500MΩ |
Service Life: |
10 Years Or 10,000 Heating Hours |
Heat Output: |
8-12KW |
HV Voltage Range: |
DC 250-870V |
LV Voltage: |
DC 24V Nominal |
Efficiency: |
> 95 % |
Controllability Steps: |
1% |
Temperature Range For Heating: |
-40 To 90 ℃ |
Temperature Range For Ambient: |
-40 To 125 ℃ |
Communication: |
CAN OR LIN |
Dielectric Strength: |
3500 V (DC) |
IP Protection Class: |
IP 67 |
EMC: |
ECE R10 Rev. 5 |
Insulation Resistance: |
>500MΩ |
Service Life: |
10 Years Or 10,000 Heating Hours |

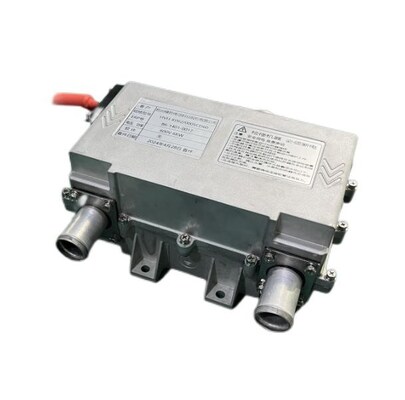

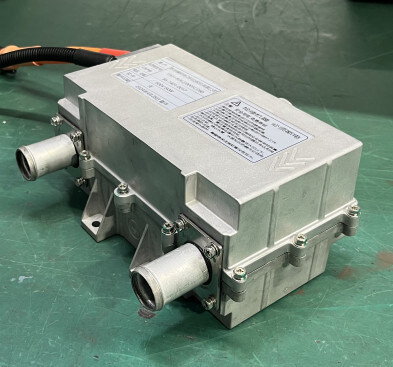

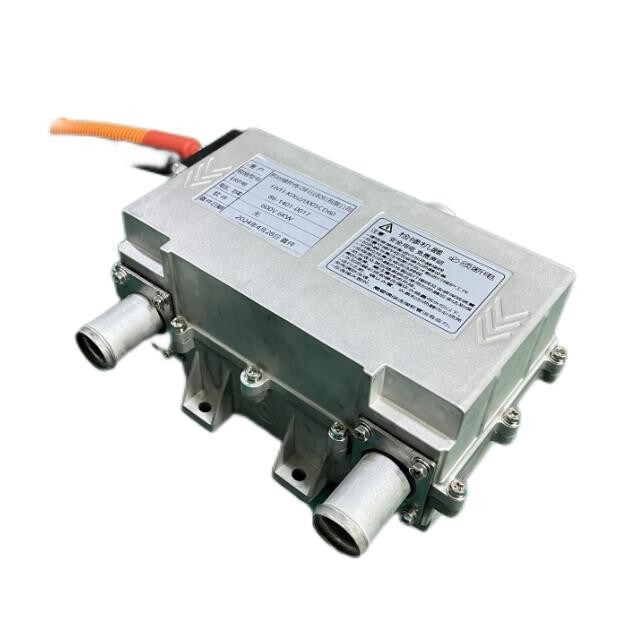

HVCH K Series | Specification |
Heat Output | 8-12kW |
High Voltage Range | DC 350-900V |
Low Voltage | DC 24V nominal |
Efficiency | > 95% |
Controllability Steps | 100W |
Weight | 3kg |
Heating Temperature Range | -40 to 90℃ |
Ambient Temperature Range | -40 to 125℃ |
Communication | CAN or LIN2.1 |
Dielectric Strength | 3500V (DC) |
IP Protection Class | IP 67 |
EMC | ECE R10 Rev. 5 |
Insulation Resistance | >500MΩ |
Service Life | 10 years or 10,000 hours |
Welcome to EVLINK, dedicated to providing efficient and safe High Voltage Coolant Heater solutions for new energy vehicles. Our products effectively increase cell temperature in extreme cold, ensuring optimal battery temperature, improving efficiency and lifespan, suitable for various new energy applications.
Product Features:
Efficient Heating: Quickly increases cell temperature, enhancing battery performance.
Extended Battery Life: Optimizes battery thermal management, extending lifespan.
Custom Solutions: Provides tailored heating strategies for different environments.
Product Applications
Passenger Cars:
EVLINK offers air heaters and water heaters. Air heaters are installed in HVAC systems for rapid heating. Water heaters, with power ranges of 3-10kW, support stepless power adjustment, PWM, or temperature regulation, using CAN or LIN communication.
Buses:
Our Electric High Voltage Heaters are used for glass defrosting, battery heating, and cabin heating in new energy buses. Air heaters provide rapid, direct heating with IP67 protection. Water heaters reach up to 35kW, supporting high-voltage platforms.
Trucks and Construction Machinery:
EVLINK’s B series water heaters, designed for heavy-duty trucks, provide 24kW or 32kW power for rapid battery heating. Our heaters are also widely used in construction and municipal vehicles, meeting the demands of harsh working conditions.
Battery Thermal Management Systems (BTMS):
Our liquid cooling solutions for BTMS offer compact structures and high thermal efficiency, achieving 18kW heating capacity in limited spaces. The system supports AC380V or AC220V heaters, suitable for large energy storage systems.
Energy Storage Thermal Management Systems:
Energy storage systems require efficient liquid heaters. We designed the first IP67 waterproof tubular liquid heater in China, available in 64mm and 50.5mm diameters, controlled by a unified controller.
Advantages of EVLINK High Voltage Coolant Heaters
EVLINK’s High Voltage Coolant Heaters are ideal for plug-in hybrids and electric vehicles, converting DC electric power to heat with 98% efficiency. Our innovative technology features ceramic
insulation and custom PTC elements for quick heating and high precision.
Product Benefits:
Extended Range: Achieve longer driving ranges with the same battery capacity.
Optimized Comfort: Provides the best in-vehicle climate comfort.
Battery Protection: Gentle and precise temperature control.
Space-Saving Design: Compact design for easy vehicle integration.
Versatile Control: Offers multiple control solutions to meet customer needs.
Comprehensive Accessories: Provides a range of accessories for easy integration.
Product Features:
Powerful Heating Performance: Offers 8/10/12/18/20/24/30/35 kW heating power, with voltage ranges up to 890 V, independent of coolant temperature.
Innovative Heating Technology: Ceramic insulation ensures rapid heating.
High Efficiency: Quick and direct heat transfer for maximum efficiency.
Precise Control: Stepless, accurate control without inrush currents.
Reliable Safety: Redundant control ensures a reliable safety concept.
Certified Quality: Compliant with R155 cybersecurity automotive requirements, suitable for various fields and applications.
