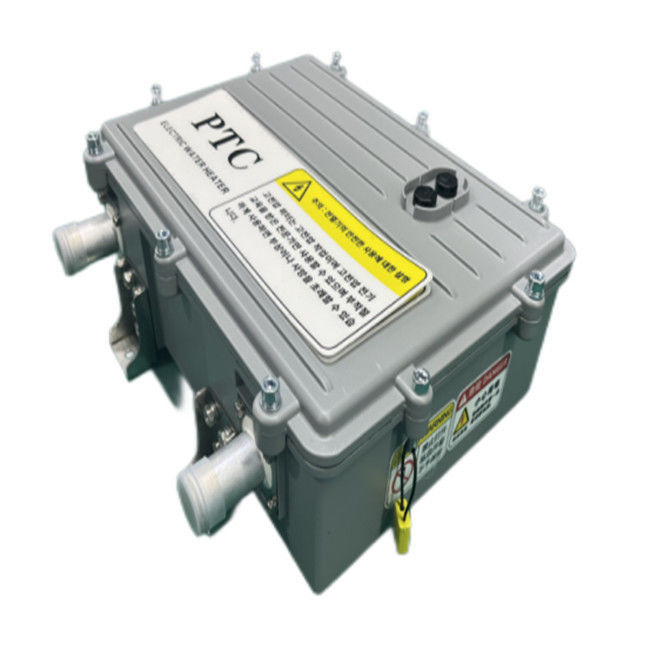

Battery High Voltage PTC Heater Electric Buses

Battery High Voltage PTC Heater Electric Buses
Battery High Voltage PTC Heater Electric Buses

Large Image :  Battery High Voltage PTC Heater Electric Buses

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QB01
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1500-2000 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

Battery High Voltage PTC Heater Electric Buses

Heat Output: 20-35KW HV Voltage Range: DC 250-1100V
LV Voltage: DC 24V Nominal Efficiency: > 95 %
Controllability Steps: 1% Dimensions: 365*313*123mm
Weight: 9kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Communication: CAN OR LIN
Dielectric Strength: 3500 V (DC) IP Protection Class: IP 67
EMC: ECE R10 Rev. 5 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

battery High Voltage PTC Heater


High Voltage PTC Heater Electric Buses


Buses PTC Heater

 QB01-Series: The Vanguard of Superior Comfort in Electric Buses Introduction

HVCH QB01 Series
Heat Output 20-35kW
HV Voltage Range DC 350-1100V
LV Voltage DC 24V nominal
Efficiency > 95 %
Controllability Steps 100W
Dimensions 365*313*123mm
Weight 10kg
Temperature Range for Heating -40 to 90 ℃
Temperature Range for Ambient -40 to 125 ℃
Communication CAN or LIN2.1
Dielectric Strength 3500 V (DC)
IP Protection Class IP 67
EMC ECE R10 Rev. 5
Insulation Resistance 500MΩ
Service Life 10 years or 10,000 heating hours

Battery High Voltage PTC Heater Electric Buses 0


In the electrification era where innovation is paramount, the QB01-Series takes the lead, ushering a new dawn of heating solutions specifically designed for modern electric buses and commercial vehicles. It epitomizes "The High-Voltage Future" guaranteeing fast, uniform, and dependable heating solutions.




Battery High Voltage PTC Heater Electric Buses 1


Features at a Glance


Dynamic Adjustability: The integrated control unit enables seamless adjustment of heat output, either through modulation of water outlet temperature or by delineating limits on the heat output and power consumption.


Smart Communication: Apart from being a superior heater, the QB01-Series boasts CAN compatibility, becoming a hub of vital operational data exchange through intelligent diagnostic functions.


Steadfast Power Supply: A remarkable feature of the QB01-Series is its stable 30kW heat output, which efficiently serves electric power ranges spanning from 600V to 1100V.


Technical Details


Wide Voltage Range: This series impressively delivers full heating capacity within a range of 450 V DC to 875 V DC, extending up to 1150 V DC without compromising efficiency.


Heating Optimization: Experience the 35 kW heating capacity, adjustable to meet a wide range of needs, ensuring a warm and comfortable environment.


Effortless Connectivity: Its ability to integrate smoothly with CAN communication channels sets it apart in the market, promising seamless operations.


Battery High Voltage PTC Heater Electric Buses 2


Environmentally Friendly Aspects


Zero Emissions: Aiming for a cleaner future, the QB01-Series guarantees 100% emission-free heating, setting a new standard in the industry.


Silent Operation: It operates quietly, eliminating any disturbances usually caused by exhaust fumes, offering a peaceful journey to its occupants.


Battery High Voltage PTC Heater Electric Buses 3


Safety and Dependability


Unwavering Safety Measures: The QB01-Series is grounded on a blueprint of layered safety protocols, ensuring continuous and reliable heating without sacrificing safety norms.


Reliable Heating Delivery: Be it ensuring the comfort of passengers or safeguarding battery systems, this series guarantees swift and consistent heating delivery.


Why Choose the QB01-Series?


Superior Power & Consistency: It doesn’t just provide heat but does so efficiently and consistently, promising peak performance every time.


Streamlined Efficiency: The hallmark of the QB01-Series is its ability to deliver heat with optimal efficiency, making it a trusted choice for modern electric buses.
