Vehicle High Voltage Coolant Heater For Modern E-Buses Liquid Heater

Certification
China Suzhou EVLINK Electronic Technology Co.,Ltd certification
I'm Online Chat Now

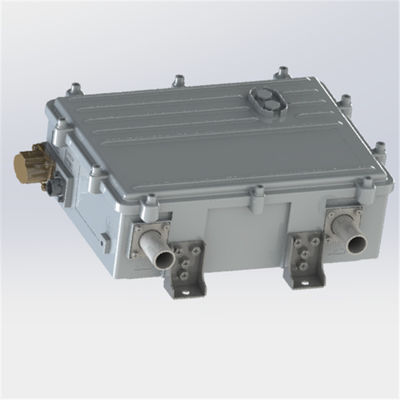

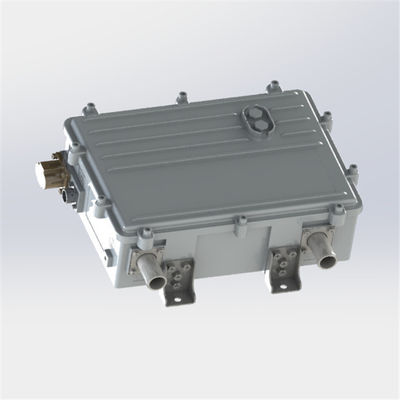

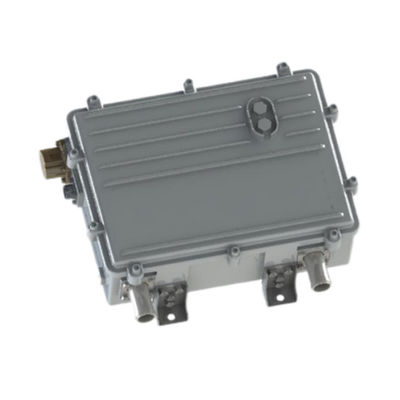

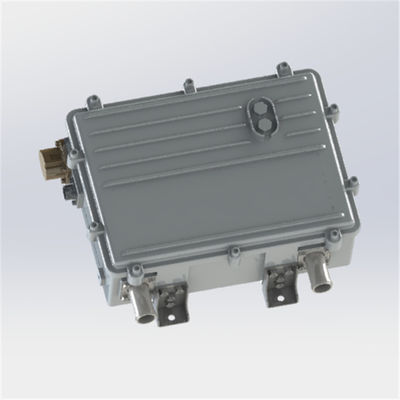

Vehicle High Voltage Coolant Heater For Modern E-Buses Liquid Heater

Vehicle High Voltage Coolant Heater For Modern E-Buses Liquid Heater
Vehicle High Voltage Coolant Heater For Modern E-Buses Liquid Heater Vehicle High Voltage Coolant Heater For Modern E-Buses Liquid Heater Vehicle High Voltage Coolant Heater For Modern E-Buses Liquid Heater Vehicle High Voltage Coolant Heater For Modern E-Buses Liquid Heater

Large Image :  Vehicle High Voltage Coolant Heater For Modern E-Buses Liquid Heater

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QB01
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1500-2000 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

Vehicle High Voltage Coolant Heater For Modern E-Buses Liquid Heater

Description
Heat Output: 20-35KW HV Voltage Range: DC 250-1100V
LV Voltage: DC 24V Nominal Efficiency: > 95 %
Controllability Steps: 1% Dimensions: 365*313*123mm
Weight: 9kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Communication: CAN OR LIN
Dielectric Strength: 3500 V (DC) IP Protection Class: IP 67
EMC: ECE R10 Rev. 5 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

Vehicle High Voltage Coolant Heater

,

High Voltage Coolant Heater Buses

,

Buses Coolant Heater

Setting the Gold Standard: The QB01-Coolant PTC Heater Series for Modern E-Buses High performance liquid heater



  1. The PTC Heater for Electric Vehicles features intelligent temperature control, maintaining a consistent and comfortable cabin temperature for enhanced passenger comfort.
  2. It is equipped with built-in safety features, such as overheat protection and automatic shut-off, ensuring safe operation and preventing damage.
  3. The heater offers customizable heating settings, allowing EV occupants to adjust the cabin temperature according to their preferences.


Vehicle High Voltage Coolant Heater For Modern E-Buses Liquid Heater 0



Specification:

HVCH QB01 Series
Heat Output 20-35kW
HV Voltage Range DC 350-1100V
LV Voltage DC 24V nominal
Efficiency > 95 %
Controllability Steps 100W
Dimensions 365*313*123mm
Weight 10kg
Temperature Range for Heating -40 to 90 ℃
Temperature Range for Ambient -40 to 125 ℃
Communication CAN or LIN2.1
Dielectric Strength 3500 V (DC)
IP Protection Class IP 67
EMC ECE R10 Rev. 5
Insulation Resistance 500MΩ
Service Life 10 years or 10,000 heating hours







Vehicle High Voltage Coolant Heater For Modern E-Buses Liquid Heater 1



Introduction:



In the realm of contemporary transportation, the QB01-Coolant PTC Heater Series by EVLINK establishes a new benchmark in heating solutions for modern electric buses and commercial vehicles. Backed by more than 20KW of PTC heating capacity, this series transcends the standards set by its lower wattage peers, combining cutting-edge technology with the utmost quality to offer a heating system that is both efficient and safe.





Exceptional Features:



High-End Safety Mechanisms

The QB01 Series integrates a double layer of protection to secure the system from potential hazards. The innovative IGBT and high-voltage relay dual control are accompanied by 80-100A high-voltage fuses, thus ensuring superior protection and peace of mind during operations.

Elevated Power and Efficiency

Designed to excel in commercial settings, these heaters offer a powerful heating solution that is both safe and efficient. The QB01-Coolant PTC Heater Series stands as an exemplary choice for new energy buses, promising consistent high performance even in demanding conditions.

Seamless Performance Adjustment

Adaptability lies at the core of the QB01 series, allowing for stepless performance regulation based on varying needs. This function ensures optimal power consumption and heat output, facilitating a tailored approach to vehicle heating.





Vehicle High Voltage Coolant Heater For Modern E-Buses Liquid Heater 2



Applications:



In the fast-evolving landscape of electric vehicles, the QB01 Series stands as a beacon of innovation, offering adaptable heating solutions that are robust yet flexible. Designed to accommodate the complex demands of large commercial vehicles, these heaters provide a dependable solution for heating, defrosting, and battery heating, enhancing the comfort and safety of each journey.



Vehicle High Voltage Coolant Heater For Modern E-Buses Liquid Heater 3



Our Services:



Direct Supply Chain Benefits: Avoid agent fees and enjoy cost benefits with our direct supply services.



Bulk Order Discounts: Benefit from substantial discounts on bulk orders, with attractive pricing structures even for trial orders.



Customer Support: Experience responsive customer service, with all inquiries addressed within a 24-hour period.



Customized Solutions: Enjoy the advantage of customized services, adaptable to specific voltage, power, and other customer requirements.





Competitive Advantages:



Safety Assurance: Enjoy peace of mind with the QB01 Series, where safety and reliability are built into every unit.



Customized OEM Solutions: Benefit from OEM solutions that are tailored to meet your specific design needs.



Proven Performance: Trust in the proven, stable performance of the QB01 Series, backed by exceptional insulating properties and dry-burning resistance.



Technological Superiority: Invest in a product that represents the pinnacle of high voltage, power, intelligence, and reliability in the market.
