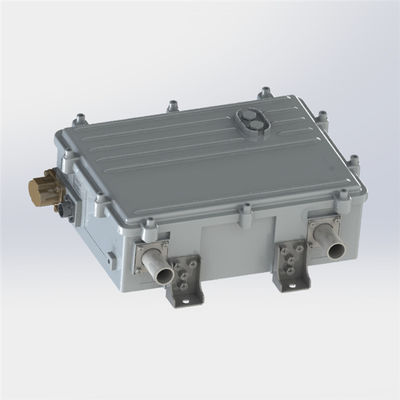

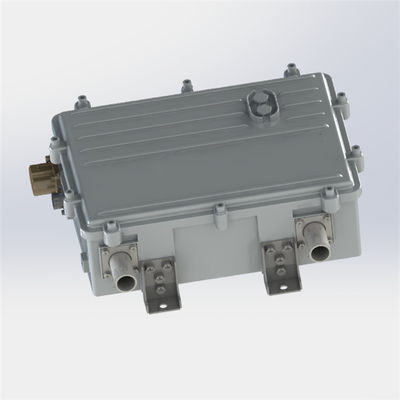

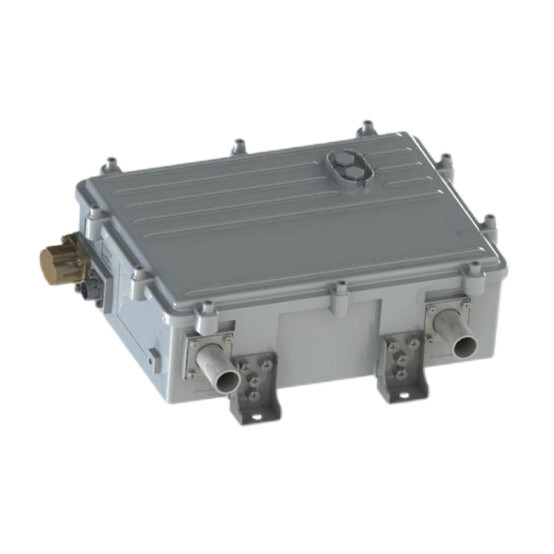

Positive Temperature Coefficient High Voltage PTC Heater Electric Hybrid Vehicles

Positive Temperature Coefficient High Voltage PTC Heater Electric Hybrid Vehicles
Positive Temperature Coefficient High Voltage PTC Heater Electric Hybrid Vehicles Positive Temperature Coefficient High Voltage PTC Heater Electric Hybrid Vehicles Positive Temperature Coefficient High Voltage PTC Heater Electric Hybrid Vehicles

Large Image :  Positive Temperature Coefficient High Voltage PTC Heater Electric Hybrid Vehicles

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QB01
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1500-2000 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

Positive Temperature Coefficient High Voltage PTC Heater Electric Hybrid Vehicles

Description
Heat Output: 20-35KW HV Voltage Range: DC 250-1100V
LV Voltage: DC 24V Nominal Efficiency: > 95 %
Controllability Steps: 1% Dimensions: 365*313*123mm
Weight: 9kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Communication: CAN OR LIN
Dielectric Strength: 3500 V (DC) IP Protection Class: IP 67
EMC: ECE R10 Rev. 5 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

coefficient High Voltage PTC Heater

,

High Voltage PTC Heater Electric

,

Electric Hybrid Vehicles Heater

The QB01- Coolant PTC heater-Series High Voltage Heating Excellence for Modern E-Buses



  1. Our High Voltage PTC Heater is designed to withstand high voltage and electrical loads, making it suitable for various high-voltage systems.
  2. It features fast heat-up time, quickly reaching the desired temperature for optimal performance.
  3. The heater is compact and lightweight, allowing for easy installation and integration into existing high-voltage systems.



 Positive Temperature Coefficient High Voltage PTC Heater Electric Hybrid Vehicles 0

Specification:


HVCH QB01 Series
Heat Output 20-35kW
HV Voltage Range DC 350-1100V
LV Voltage DC 24V nominal
Efficiency > 95 %
Controllability Steps 100W
Dimensions 365*313*123mm
Weight 10kg
Temperature Range for Heating -40 to 90 ℃
Temperature Range for Ambient -40 to 125 ℃
Communication CAN or LIN2.1
Dielectric Strength 3500 V (DC)
IP Protection Class IP 67
EMC ECE R10 Rev. 5
Insulation Resistance 500MΩ
Service Life 10 years or 10,000 heating hours







Positive Temperature Coefficient High Voltage PTC Heater Electric Hybrid Vehicles 1



Introduction:



In an era echoing with the buzz of electric advancements, the QB01-Series stands tall as a beacon of excellence, forging the path to a warmer, more comfortable future in electric buses and commercial vehicles. Synonymous with the phrase "HIGH VOLTAGE FUTURE," this heating system is an epitome of rapid, uniform, and dependable heating solutions that echo with the sustainable promises of the future.







Positive Temperature Coefficient High Voltage PTC Heater Electric Hybrid Vehicles 2







Detailed Specification Highlights:



Consistent Power & Adaptability:



Heat Output: A stellar heat output of 30-35kW, proficiently catering to a wide array of electric power brackets ranging from 450V to 1150V.



Adaptive Control: Equipped with an intuitive control unit that enables a smooth adjustment of the heat output, modulating the water outlet temperature or dictating the thresholds on power consumption and maximum heat.



Advanced Communication & Integration:



Connectivity: A notch above a conventional heater, the QB01-Series integrates seamlessly with CAN communication channels, transforming into a smart device that transmits critical operational data through an ingenious diagnostic function.



Eco-friendly Attributes: Committing to a sustainable tomorrow, the series offers 100% emission-free heating coupled with quiet functionality, eradicating the concerns of noise pollution and disruptive exhaust fumes.



Technical Specifications:



Optimized Heating Efficiency: With a dynamic range of heating prowess adjustable to various needs, it stands as a versatile choice for modern electric vehicles.



Broad Voltage Spectrum: Showcasing a broad voltage spectrum, it maintains full heating capacity from 450 V DC to 875 V DC, with the ability to peak up to 1150 V DC without a decline in efficiency.





Positive Temperature Coefficient High Voltage PTC Heater Electric Hybrid Vehicles 3



Safety, Reliability, and Green Attributes:



Safety & Reliability: Central to the QB01-Series is a sophisticated, multilayered safety blueprint that ensures steadfast heating delivery while upholding the highest safety standards.



Environment-Friendly Operations: Dedicated to fostering a greener future, it operates without emissions and functions quietly, avoiding the nuisance of exhaust emissions and noise disturbances.



Why Choose the QB01-Series?:



Power & Consistency: Beyond heating, it stands as a guarantee of comfort and well-being for both the driver and the passengers, promising rapid and steady temperature management without compromising the battery system's efficiency.



Peak Efficiency & Sustainability: The QB01-Series steps beyond mere heating; it epitomizes efficiency and sustainability, guaranteeing optimal performance with every use, thereby marking a significant stride in environmental conservation.
