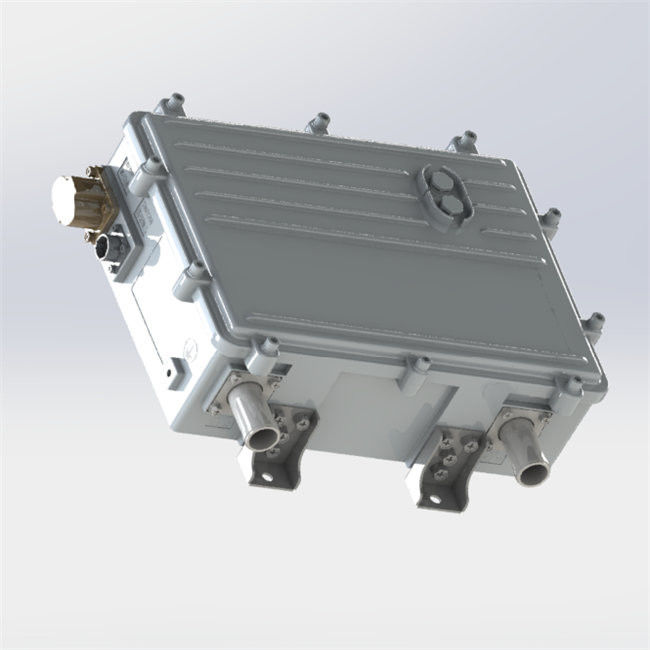

Water Ptc Heater Electric Vehicle Valeo Hv Heater

Water Ptc Heater Electric Vehicle Valeo Hv Heater
Water Ptc Heater Electric Vehicle Valeo Hv Heater Water Ptc Heater Electric Vehicle Valeo Hv Heater Water Ptc Heater Electric Vehicle Valeo Hv Heater Water Ptc Heater Electric Vehicle Valeo Hv Heater Water Ptc Heater Electric Vehicle Valeo Hv Heater

Large Image :  Water Ptc Heater Electric Vehicle Valeo Hv Heater

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QB01
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1500-2000 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

Water Ptc Heater Electric Vehicle Valeo Hv Heater

Description
Heat Output: 20-35KW HV Voltage Range: DC 250-1100V
LV Voltage: DC 24V Nominal Efficiency: > 95 %
Controllability Steps: 1% Dimensions: 365*313*123mm
Weight: 9kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Communication: CAN OR LIN
Dielectric Strength: 3500 V (DC) IP Protection Class: IP 67
EMC: ECE R10 Rev. 5 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

ptc heater electric vehicle

,

valeo hv heater

,

water heater ptc

EVLINK High Voltage, High Power Water Heater: The Optimal Heating Solution for Entire Vehicle Systems



  1. It is engineered to operate efficiently, minimizing power consumption and maximizing the driving range of electric vehicles.
  2. The heater offers fast heat-up times, quickly warming up the cabin to provide immediate comfort for EV occupants.
  3. It is designed to be compatible with various EV models and configurations, ensuring broad applicability across different electric vehicle platforms.





Water Ptc Heater Electric Vehicle Valeo Hv Heater 0



Specification:


HVCH QB01 Series
Heat Output 20-35kW
HV Voltage Range DC 350-1100V
LV Voltage DC 24V nominal
Efficiency > 95 %
Controllability Steps 100W
Dimensions 365*313*123mm
Weight 10kg
Temperature Range for Heating -40 to 90 ℃
Temperature Range for Ambient -40 to 125 ℃
Communication CAN or LIN2.1
Dielectric Strength 3500 V (DC)
IP Protection Class IP 67
EMC ECE R10 Rev. 5
Insulation Resistance 500MΩ
Service Life 10 years or 10,000 heating hours







Water Ptc Heater Electric Vehicle Valeo Hv Heater 1



Product Introduction:



The EVLINK high-voltage, high-power water heater is the ultimate heat source for all heating needs of a vehicle. It offers a comprehensive solution for cabin heating, defrosting, and battery pre-heating. Through the vehicle's water circulation system, it efficiently distributes heat throughout the vehicle, making it the best future heat management solution. With the capability to rapidly achieve desired temperatures, it reduces the time for cabin heating and battery charging/discharging, enhancing operational efficiency. The high-voltage, high-power water heater stands as the primary heat source for the thermal management of electric vehicle batteries.




Water Ptc Heater Electric Vehicle Valeo Hv Heater 2


Features:






Comprehensive Heating Solution: Provides a unified heat source for cabin comfort, defrosting, and battery pre-heating, efficiently distributing heat via the vehicle's internal water circulation system.



Optimal Thermal Management: Achieves desired temperatures in minimal time, reducing heating durations and battery charge/discharge times, enhancing overall operational efficiency.



Primary Source for Battery Thermal Management: In chilly conditions, the heater rapidly elevates battery temperatures from below 0°C to an optimal 20°C, ensuring efficient battery charging and discharging.







Water Ptc Heater Electric Vehicle Valeo Hv Heater 3


Applications:


In the chilly winter months, to ensure the comfortable operation of electric vehicles and the efficiency of batteries, heat management becomes crucial. The EVLINK high-voltage, high-power water heater ensures a warm driving cabin in cold environments and maintains the battery at its optimal working temperature, enhancing its performance and lifespan.






Our Service:



Direct factory supply: Enjoy the benefits of our premium products without middlemen.



Competitive pricing: Exceptional quality paired with a reasonable price tag.



Quick response: We are always ready to address your concerns.



Custom solutions: Tailored offerings to meet your specific needs.






Competitive Advantage:



Unparalleled Efficiency: Achieve rapid heating in minimal time.



Optimized for EVs: Specifically designed for electric vehicles, ensuring optimal performance and longevity.



Safety First: Built with top-notch safety features to ensure a risk-free experience.



Cutting-edge Technology: Incorporating the latest advancements for unmatched heating solutions.
