Hvh High Voltage Ptc Heater Booster For Entire Vehicle Systems

Hvh High Voltage Ptc Heater Booster For Entire Vehicle Systems
Hvh High Voltage Ptc Heater Booster For Entire Vehicle Systems Hvh High Voltage Ptc Heater Booster For Entire Vehicle Systems Hvh High Voltage Ptc Heater Booster For Entire Vehicle Systems Hvh High Voltage Ptc Heater Booster For Entire Vehicle Systems Hvh High Voltage Ptc Heater Booster For Entire Vehicle Systems

Large Image :  Hvh High Voltage Ptc Heater Booster For Entire Vehicle Systems

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QB01
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1500-2000 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

Hvh High Voltage Ptc Heater Booster For Entire Vehicle Systems

Description
Heat Output: 20-35KW HV Voltage Range: DC 250-1100V
LV Voltage: DC 24V Nominal Efficiency: > 95 %
Controllability Steps: 1% Dimensions: 365*313*123mm
Weight: 9kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Communication: CAN OR LIN
Dielectric Strength: 3500 V (DC) IP Protection Class: IP 67
EMC: ECE R10 Rev. 5 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

high voltage ptc heater booster

,

hvh heater

,

high voltage ptc heater Vehicle

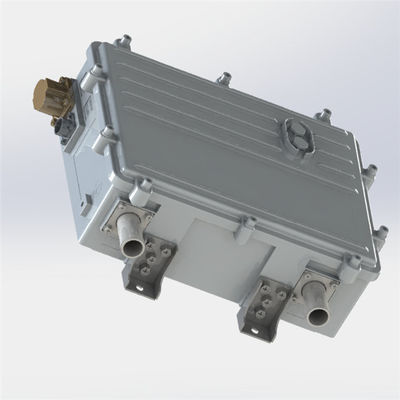

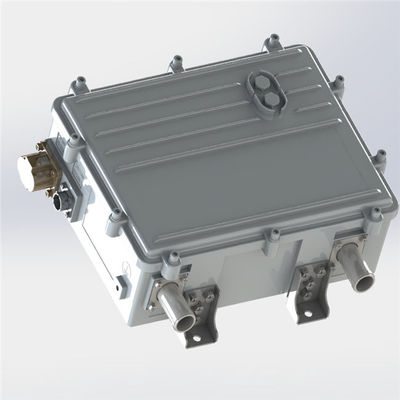

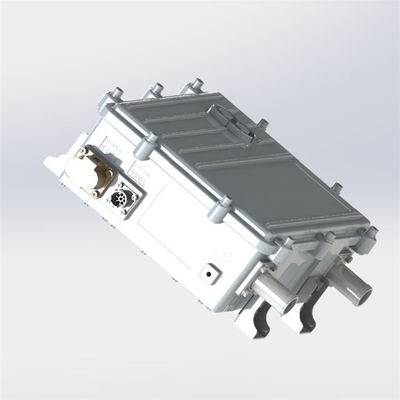

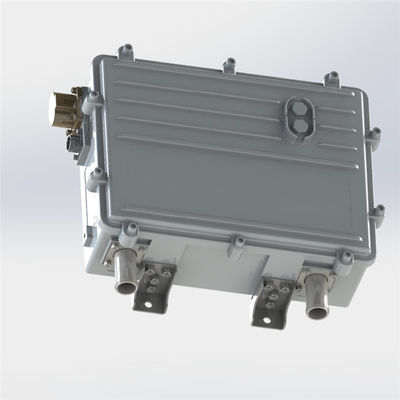

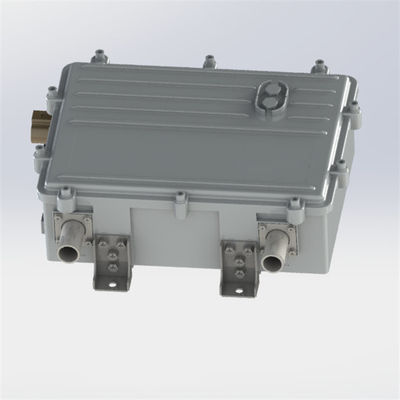

 EVLINK High Voltage, High Power Water Heater: The Optimal Heating Solution for Entire Vehicle Systems



  1. Our PTC Heater for Electric Vehicles is a cutting-edge heating system specifically designed to provide efficient and reliable cabin heating in electric vehicles (EVs).
  2. This advanced heater utilizes Positive Temperature Coefficient (PTC) heating elements to rapidly and evenly heat the cabin, ensuring passenger comfort in cold weather conditions.
  3. The PTC Heater for Electric Vehicles is compact and lightweight, allowing for easy integration into EVs without compromising valuable space or adding excessive weight.



Specification:

HVCH QB01 Series
Heat Output 20-35kW
HV Voltage Range DC 350-1100V
LV Voltage DC 24V nominal
Efficiency > 95 %
Controllability Steps 100W
Dimensions 365*313*123mm
Weight 10kg
Temperature Range for Heating -40 to 90 ℃
Temperature Range for Ambient -40 to 125 ℃
Communication CAN or LIN2.1
Dielectric Strength 3500 V (DC)
IP Protection Class IP 67
EMC ECE R10 Rev. 5
Insulation Resistance 500MΩ
Service Life 10 years or 10,000 heating hours







Hvh High Voltage Ptc Heater Booster For Entire Vehicle Systems 0







Product Introduction:





At the zenith of technological advancement stands EVLINK's QB01 series heater, a beacon of efficiency and reliability in the ever-evolving market of new energy vehicles and heavy-duty machinery. In the heart of bustling cities or the harshest environments of mining sectors, the QB01 series guarantees a seamless, warm experience, making it an indispensable asset in today's green energy transition.







Hvh High Voltage Ptc Heater Booster For Entire Vehicle Systems 1





Product Features:





Outstanding Heat Output: Boasts significant heat output that ensures the comfortable warmth of the passenger cabin and preheating the battery, standing resolute even in the face of bitter cold.



Adaptable Voltage Range: Flexibly meets a vast array of voltage demands, operating optimally anywhere between 350V and 1100V, embodying versatility at its finest.



Smart Control Interface: Features a state-of-the-art integrated control unit allowing for a stepless adjustment, promising consistent and adaptable heat output tailored to your needs.



Eco-Friendly Operation: A trailblazer in green technology with 100% emission-free operation, it operates silently, eliminating the emission of harmful exhaust gases.



Multifaceted Safety Protocols: Anchored by a multi-level safety strategy that safeguards consistency and efficiency in heat delivery, putting safety at the forefront.







Hvh High Voltage Ptc Heater Booster For Entire Vehicle Systems 2





Application:





The QB01 series finds its home in a multitude of new energy vehicles and expansive machinery. Its prowess is not confined to temperate environments but stretches to equipment that must perform optimally in extreme cold conditions. With unmatched heating capacity and efficient performance, it has rapidly become a market favorite, a testament to EVLINK's commitment to quality and innovation.





Hvh High Voltage Ptc Heater Booster For Entire Vehicle Systems 3





Our Services:





Direct Product Supply: Cutting out the middleman, we offer direct product supply, culminating in a considerable reduction in costs.



Tailored Solutions: At EVLINK, we pride ourselves on offering services that are customized meticulously to cater to individual client needs, ensuring satisfaction at every turn.



Technical Support Excellence: Our team of experts stands ready to offer unmatched technical support, guiding you through every step of the process.



24/7 Customer Service: Around the clock customer service, ensuring your queries never go unanswered, fostering a relationship of trust and reliability.





Competitive Advantage:



Quality Assurance: Our journey is characterized by relentless R&D and innovation, constantly refining our products to embody quality and reliability.



Leadership in the Marketplace: With a history of leading the technological vanguard, EVLINK stands as a beacon of innovation in the industry.



Holistic Customer Support: Our commitment stretches beyond mere product delivery, offering an encompassing customer support system from the design phase through to after-sales service.



Customization and Collaboration: Our approach to business is collaborative, fostering partnerships and offering customization options that put the client at the heart of every initiative.
