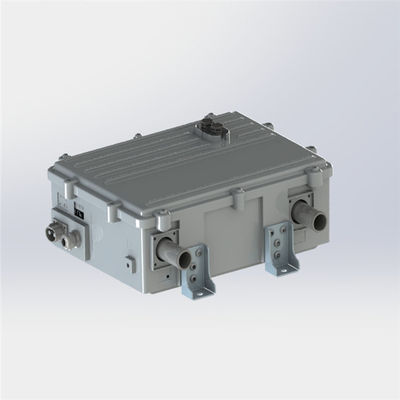

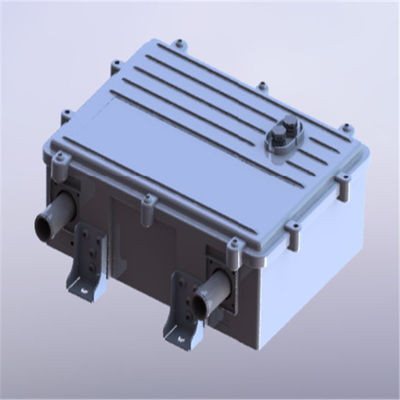

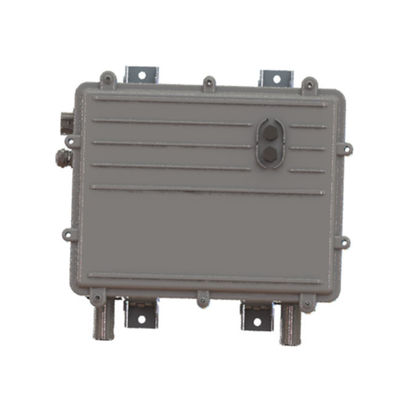

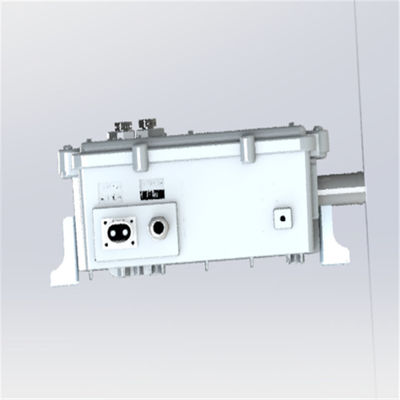

15-25kW High Voltage Coolant Heater For Electric Vehicle

Certification
China Suzhou EVLINK Electronic Technology Co.,Ltd certification
I'm Online Chat Now

15-25kW High Voltage Coolant Heater For Electric Vehicle

15-25kW High Voltage Coolant Heater For Electric Vehicle
15-25kW High Voltage Coolant Heater For Electric Vehicle 15-25kW High Voltage Coolant Heater For Electric Vehicle 15-25kW High Voltage Coolant Heater For Electric Vehicle 15-25kW High Voltage Coolant Heater For Electric Vehicle 15-25kW High Voltage Coolant Heater For Electric Vehicle

Large Image :  15-25kW High Voltage Coolant Heater For Electric Vehicle

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: QA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1200-1500 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

15-25kW High Voltage Coolant Heater For Electric Vehicle

Description
Heat Output: 15-25KW HV Voltage Range: DC 250-870V
LV Voltage: DC 24V Nominal Efficiency: > 95 %
Controllability Steps: 1% Dimensions: 365*313*123mm
Weight: 9kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Communication: CAN OR LIN
Dielectric Strength: 3500 V (DC) IP Protection Class: IP 67
EMC: ECE R10 Rev. 5 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

15-25kW High Voltage Coolant Heater

,

high Voltage Coolant Heater for Electric Vehicle

,

high Voltage Heater

HVCH QA01 Series 15-25kW IP 67 Protected Heaters with CAN/LIN2.1 Communication



  1. It features advanced control features, allowing users to monitor and adjust the cabin temperature through intuitive interfaces.
  2. The PTC Heater for Electric Vehicles is designed for quick and easy integration into existing EV heating systems, minimizing installation time and costs.
  3. It is engineered for thermal efficiency, minimizing heat loss and maximizing energy savings during cabin heating.

15-25kW High Voltage Coolant Heater For Electric Vehicle 0

Product Introduction:



In the ever-progressing sectors of scientific research and the automotive industry, the requirement for precise and efficient temperature control systems has become an undeniable necessity. Elevating the benchmarks of excellence, the HVCH QA01 Series steps in as a beacon of innovation and quality, introducing not just an advanced heater but an evolution in temperature management. This series is custom-designed to cater to high-end research environments and automotive applications, promising accurate, consistent, and potent heating solutions.





Specification:



HVCH QA01 Series
Heat Output     15-25kW
HV Voltage Range     DC 250-870V

LV Voltage

  DC 24V nominal
Efficiency     > 95 %
Controllability Steps     100W
Dimensions     365*313*123mm
Weight     9kg
Temperature Range for Heating     -40 to 90 ℃
Temperature Range for Ambient     -40 to 125 ℃
Communication     CAN or LIN2.1
Dielectric Strength     3500 V (DC)
IP Protection Class     IP 67
EMC     ECE R10 Rev. 5
Insulation Resistance     >500MΩ
Service Life     10 years or 10,000 heating hours









15-25kW High Voltage Coolant Heater For Electric Vehicle 1

15-25kW High Voltage Coolant Heater For Electric Vehicle 2











Product Attributes:

  • Unrivaled Water Resistance: Demonstrating remarkable resilience in humid lab conditions or during accidental spills, the heater is fortified with IP 67 certification for validation.

  •

  • Precision Performance Control: This heater allows for unparalleled precision, offering control over the water outlet temperature and the capability to cap the maximum heat output, adapting to various demands with ease.

  •

  • Dual-Layered Safety: Integrating both mechanical and electronic safety systems, the heater provides robust protection against potential hazards, ensuring operational safety at all times.

  •

  • Complete Insulation: The product achieves a critical separation of water and electrical components, a fundamental feature in ensuring safety and functionality in laboratory equipment.

  •

  • Cutting-Edge PTC Technology: Leveraging dynamic PTC technology, it fluidly adjusts power while maintaining a set temperature threshold, promising efficiency and safety in operations.





15-25kW High Voltage Coolant Heater For Electric Vehicle 3





Applications:



In the competitive landscape of scientific exploration and automotive advancements, the HVCH QA01 Series is making significant strides. Esteemed enterprises and national laboratories are employing it in testing thermal management units, simulating battery heating processes, and ensuring rapid startups even in ultra-low temperatures. It stands as a beacon of power, precision, and reliability, offering a distinct advantage in leading-edge research and development.









15-25kW High Voltage Coolant Heater For Electric Vehicle 4



Our Services:

  1. Direct Procurement: Eliminating the middlemen, offering cost reductions, and a streamlined procurement process.

  2. Bulk Order Benefits: Experience significant discounts with volume orders, providing an economical solution for large-scale projects.

  3. Rapid Responses: Guaranteeing responses to your queries within 24 hours, showcasing our dedication to customer satisfaction.

  4. Competitive Pricing: Avail premium products at compelling prices, merging quality with affordability.

  5. Manufacturer's Assurance: Delivering assurance straight from the source, ensuring quality and reliability in every product.

  6. Client-Centric Approach: Your requirements guide our mission, as we are committed to meeting your needs with precision and dedication.

Competitive Advantages:

  1. Safety and Dependability: Our products undergo stringent quality checks, promising safety and reliability across diverse conditions.

  2. Customized Solutions: Offering OEM services, we modify our products to meet your specific design needs, ensuring a tailored solution every time.

  3. Stable Performance: Renowned for stable performance, our products are built to withstand various environmental conditions, promising longevity and reliability.

  4. Weather Resilient: Our products are weatherproof, offering excellent insulation and resistance against dry burning, ensuring resilience in diverse setups.

  5. High-Voltage and High-Power Excellence: Merging high voltage and power with intelligence and reliability, our heaters provide an unparalleled competitive edge in the market.
