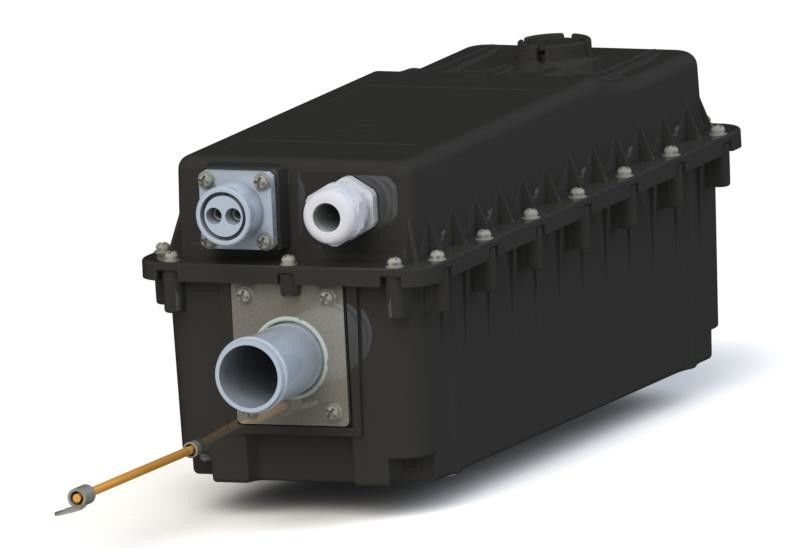

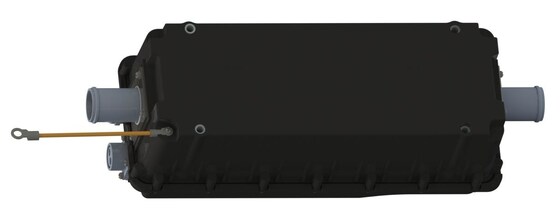

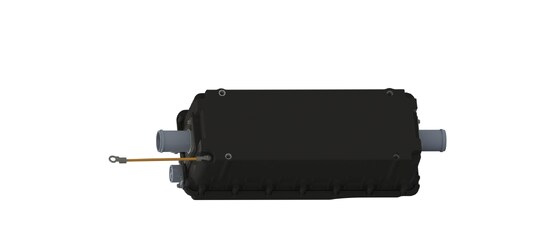

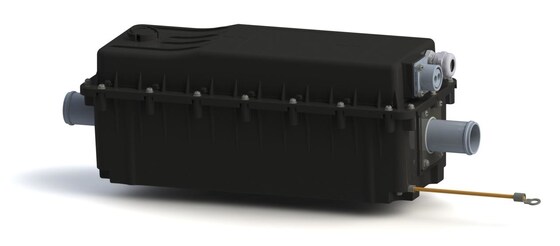

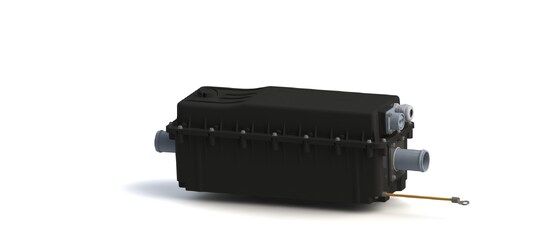

8-18kW Automotive Coolant Heater Without Bracket DC 690V

8-18kW Automotive Coolant Heater Without Bracket DC 690V
8-18kW Automotive Coolant Heater Without Bracket DC 690V 8-18kW Automotive Coolant Heater Without Bracket DC 690V 8-18kW Automotive Coolant Heater Without Bracket DC 690V 8-18kW Automotive Coolant Heater Without Bracket DC 690V 8-18kW Automotive Coolant Heater Without Bracket DC 690V

Large Image :  8-18kW Automotive Coolant Heater Without Bracket DC 690V

Product Details:
Place of Origin: CHINA
Brand Name: EVPTC
Certification: CE
Model Number: AN02
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1500-2000 per set
Packaging Details: carton or wooden case packing
Delivery Time: 15-20days
Payment Terms: T/T
Supply Ability: 100 sets per 2 weeks

8-18kW Automotive Coolant Heater Without Bracket DC 690V

Description
Heat Output: 8-18kW HV Voltage Range: DC 350-870V
LV Voltage: DC 24V Or 12V Nominal Efficiency: > 95 %
Controllability Steps: 1% Dimensions: 340*110*113mm
Weight: <6kg Temperature Range For Heating: -40 To 90 ℃
Temperature Range For Ambient: -40 To 125 ℃ Communication: CAN OR LIN
Dielectric Strength: 3500 V (DC) IP Protection Class: IP 67
EMC: ECE R10 Rev. 5 Insulation Resistance: >500MΩ
Service Life: 10 Years Or 10,000 Heating Hours
High Light:

18kW automotive coolant heater

,

automotive coolant heater 690V

,

auto coolant heater

AN02-Series (8-18kW)Nominal Voltage DC 690V High Voltage Water Heater Without Bracket

8-18kW Automotive Coolant Heater Without Bracket DC 690V 0

HVCH AN02 Series is a specialized model designed for CATL, for the battery heating used in heavy duty trucks.In cold areas, the strong heating capacity up to 18kW can provide sufficient heat source for the middle vehicle, and raise the battery temperature to the most appropriate temperature point in the shortest time, thus extending battery's service life. We are also happy to provide customized services for all customers. For example, our ptc high voltage heater could be modified to AC or other different shape.



HVCH AN02-Series could quickly, consistently,powerfully and reliably heat the vehicle interior. The compact device ensures a constantly high heat output of 10kW-18kW and allows for flexible use in a power range of 350 to 850 Volts. HVCH AN02-Series features infinitely variable heat output control by means of an integral control unit. This takes place either by regulating the water outlet temperature or by limiting the maximum heat output or power consumption. Furthermore, it is CAN-capable and transmits key operating data to the vehicle system using an intelligent diagnostic function.





Specification:



HVCH AN02 Series
Heat Output     8-18kW
HV Voltage Range     DC 350-850V

LV Voltage

  DC 24V or DC 12V nominal
Efficiency     > 95 %
Controllability Steps     100W
Dimensions     340*110*113mm
Weight     6kg
Temperature Range for Heating     -40 to 90 ℃
Temperature Range for Ambient     -40 to 125 ℃
Communication     CAN or LIN2.1
Dielectric Strength     3500 V (DC)
IP Protection Class     IP 67
EMC     ECE R10 Rev. 5
Insulation Resistance     >500MΩ
Service Life     10 years or 10,000 heating hours





8-18kW Automotive Coolant Heater Without Bracket DC 690V 1

Product Features:



Ø Excellent Water Resistance.

During the actual operation, muddy roads and wet rainy days and long playing in high temperature, all require our high voltage coolant heater excellent waterproof performance.IP 67 Water and dust proof reports can be provided.



Ø Stepless Regulate Performance.

This takes place either by regulating the water outlet temperature or by limiting the maximum heat output or power consumption.Our High Voltage coolant heater has been equipted in thousands of vehicles for three years ,the good quality has been accecpted by the custmers.



Ø Reliable Self-Protection System

The protection system includes mechanical protection device and electronic protection, which acts to shut the module down in reaction to a short circuit, overload, or over-temperature condition. In addition, We add the current fuse in the high voltage circuit.In addition to the temperature sensor, there is also a mechanical temperature switch inside.



Ø Completely Separation of Water and Electricity

Water and electricity is completely separated.Different from other manufacturers,we solve perfectly the contradiction between the heat transmission efficiency with the Insulation requirement of DC 3500 V.Benefits from this technical improvement, our 870V (nominal voltage) products have been mass produced and used in heavy dump trucks in 2021.



Ø PTC thermistor heater with self - controlled constant temperature.

PTC water coolant heater come with all advantages of the PTC heating technology. Thanks to the PTC effect, the heating elements dynamically adjust their power without exceeding a maximum temperature. High operational reliability and energy efficiency without any additional switching elements.





8-18kW Automotive Coolant Heater Without Bracket DC 690V 2



Application:



To guarantee a safe journey even in challenging climate conditions, vehicles must be ready for operation right from the start.

Sufficient power of 25 to 35kw can meet the heating, defrosting, battery heating and other needs of large vehicles. Users can adjust the power according to the demand, control the power consumption. We also provide customized service, which can be adjusted according to customer requirements, such as voltage, power, etc
